BAZAR GIGABYTE MB Sc AM4 A320M-S2H, AMD A320, 2xDDR4, VGA, mATX - repair

Socket (patice):Socket AM4; Formát:micro ATX; Integrovaná grafická karta:Ano (CPU); Chipset:AMD; Technologie paměti RAM:DDR4; Podpora RAID:1, 10; PCI express 16x:1; Integrovaná LAN karta:1; Rozhraní:HDMI, VGA, DVI.... více
Běžná cena: 1 051  (-4%)
836.36 Kč bez DPH
Skladem
1 012 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 689782
Kód dod.: GA-A320M-S2H_BAZAR
EAN: 689782
Záruka: 3 Měsíc(ů)
Výrobce: Gigabyte
Popis a parametry

BAZAR GIGABYTE MB Sc AM4 A320M-S2H, AMD A320, 2xDDR4, VGA, mATX - repair

CPU
AM4 Socket:
  1. AMD Ryzen™ processor
  2. AMD 7th Generation A-series/ Athlon™ processor
(Please refer "CPU Support List" for more information.)
Chipset
  1. AMD A320
Memory
  1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
    * Supports only M.2 SATA SSDs when using an AMD 7th Generation A-series or Athlon™ processor.
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
  1. Integrated Graphics Processor:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
      * Support for HDMI 1.4 version.
    Maximum shared memory of 2 GB
    * Actual support may vary by CPU.
Audio
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
LAN

1. Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * Actual support may vary by CPU.
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  2. 2 x PCI Express x1 slots
    (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage Interface
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4*/x2 SSD support)
      * Actual support may vary by CPU.
      * Supports only M.2 SATA SSDs when using an AMD 7th Generation A-series or Athlon™ processor.
    2. 4 x SATA 6Gb/s connectors
    3. Support for RAID 0, RAID 1, and RAID 10
      * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.
USB Chipset:
  1. 2 x USB 3.1 Gen 1 ports available through the internal USB header
  2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
  1. 4 x USB 3.1 Gen 1 ports on the back panel
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x system fan header
  5. 1 x M.2 Socket 3 connector
  6. 4 x SATA 6Gb/s connectors
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x S/PDIF Out header
  10. 1 x USB 3.1 Gen 1 header
  11. 2 x USB 2.0/1.1 headers
  12. 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
  13. 1 x speaker header
  14. 1 x Clear CMOS jumper
  15. 1 x chassis intrusion header

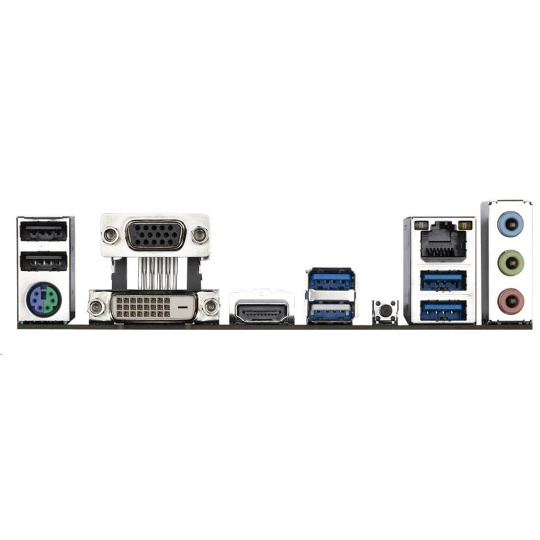

Back Panel Connectors
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x D-Sub port
  4. 1 x DVI-D port
  5. 1 x HDMI port
  6. 4 x USB 3.1 Gen 1 ports
  7. 2 x USB 2.0/1.1 ports
  8. 1 x RJ-45 port
  9. 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    3D OSD
    AutoGreen
    BIOS Setup
    Cloud Station
    Color Temperature
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    Smart Backup
    Smart Keyboard
    Smart TimeLock
    System Information Viewer
    USB Blocker
    V-Tuner
  2. Support for Q-Flash
  3. Support for Xpress Install
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
Operating System
  1. Support for Windows 10 64-bit
  2. Support for Windows 7 64-bit
    * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor Micro ATX Form Factor; 24.4cm x 19.5cm
.
Technologie paměti RAM
DDR4
Rozhraní
VGA
Socket (patice)
Socket AM4
Formát
micro ATX
Integrovaná grafická karta
Ano (CPU)
Chipset
AMD
PCI express 16x
1
Integrovaná LAN karta
1
Podpora RAID
10
