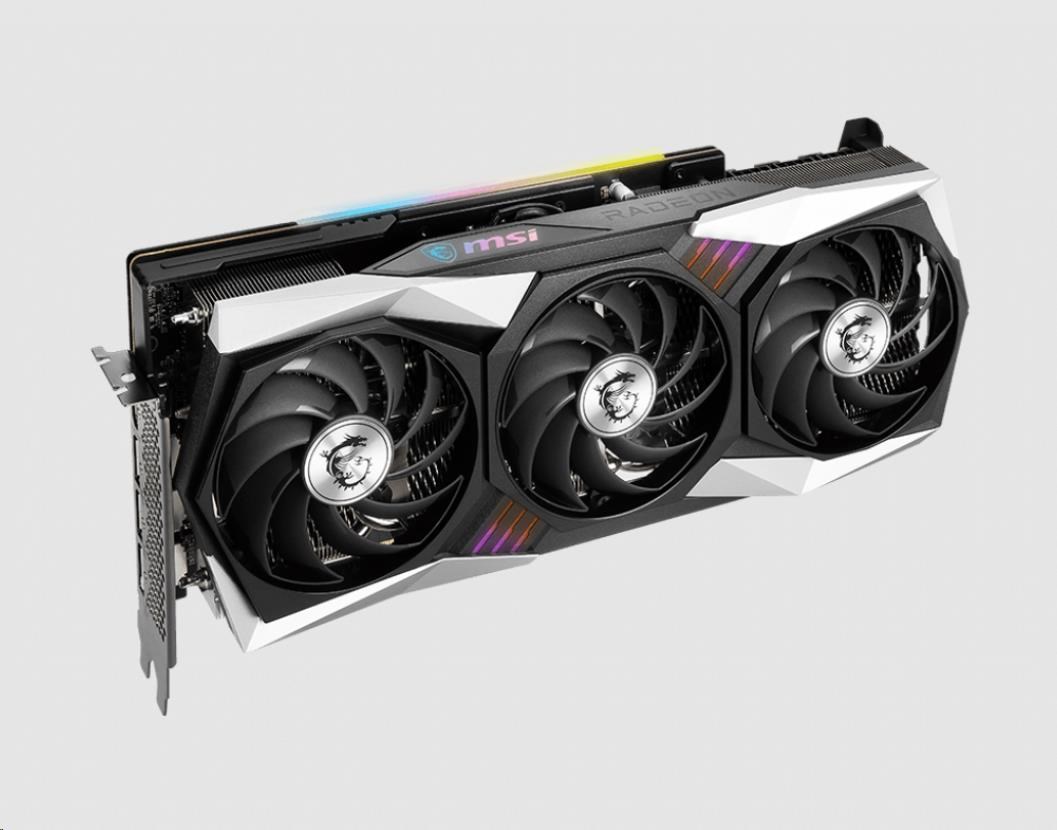

Radeon RX 6900 XT GAMING X TRIO 16G

Get the ultimate game changer. AMD Radeon™ RX 6900 XT graphics card features breakthrough AMD RDNA™ 2 architecture. Now you can game in 4K with ultra-smooth frame rates and at max settings. Never again compromise on resolution to enjoy fluid, high-refresh-rate gaming. Experience a new level of immersion with the AMD Radeon™ RX 6900 XT graphics card.

Boost Clock / Memory Speed

• Up to 2340 MHz / 16 Gbps
• 16GB GDDR6
• DisplayPort x 3
• HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

TRI FROZR 2 Thermal Design

• TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
• Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
• Airflow Control: Don't sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.

RGB Mystic Light

• Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products.

MSI Center

• The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

MODEL NAME

Radeon™ RX 6900 XT GAMING X TRIO 16G

GRAPHICS PROCESSING UNIT

Radeon™ RX 6900 XT

INTERFACE

PCI Express® Gen 4

CUDA® CORES

5120 Units

CORE CLOCKS

Boost: Up to 2340 MHz / Game: Up to 2105 MHz

MEMORY SPEED

16 Gbps

MEMORY

16GB GDDR6

MEMORY BUS

256-bit

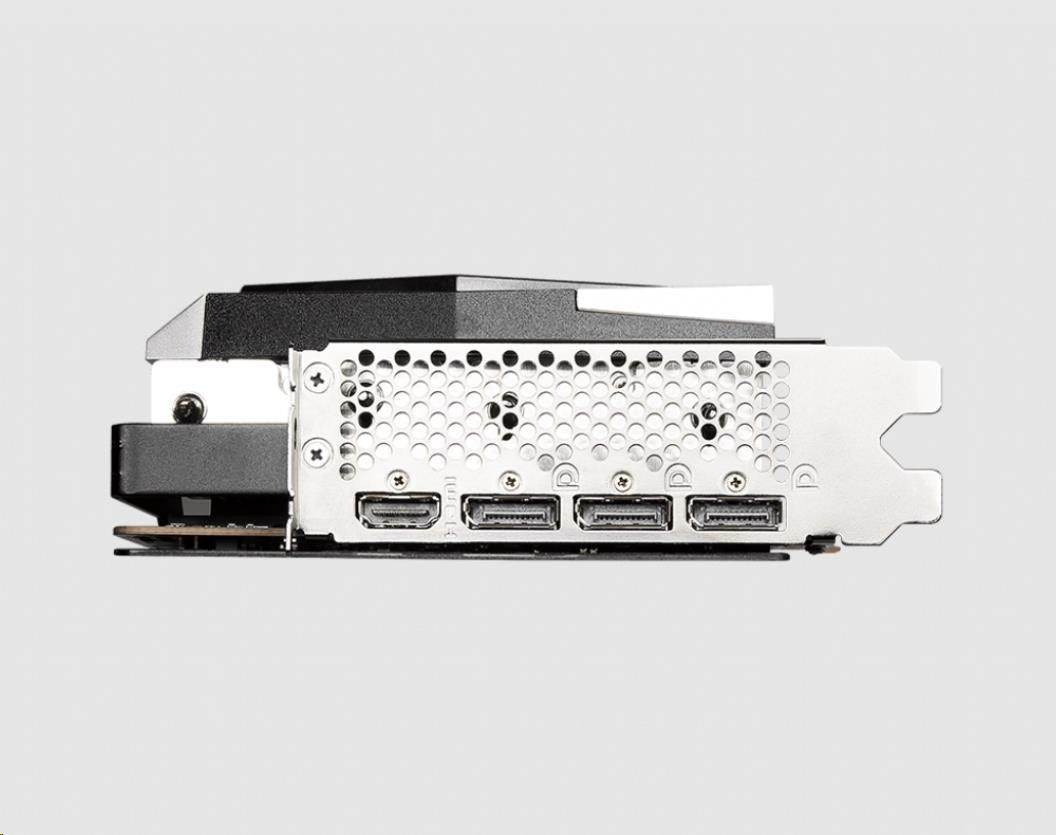

OUTPUT

DisplayPort x 3 (v1.4)
HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

HDCP SUPPORT

Y

POWER CONSUMPTION

300 W

POWER CONNECTORS

8-pin x 3

RECOMMENDED PSU

850 W

CARD DIMENSION (MM)

324 x 141 x 55 mm

WEIGHT (CARD / PACKAGE)

1576g / 2381g

DIRECTX VERSION SUPPORT

12

OPENGL VERSION SUPPORT

4.6

MULTI-GPU TECHNOLOGY

Y

AFTERBURNER OC

Y

MAXIMUM DISPLAYS

4

VR READY

Y

DIGITAL MAXIMUM RESOLUTION

7680x4320
