CHIEFTEC skříň Elox Series / Minitower, HT-01B, 350W, Black
CHIEFTEC skříň Elox Series / Minitower, HT-01B, 350W, Black

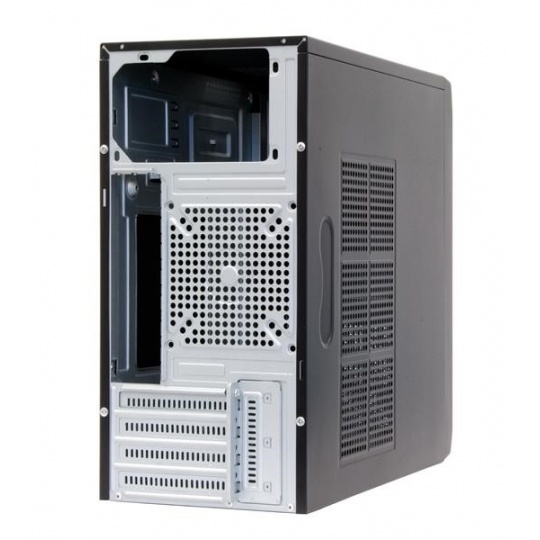

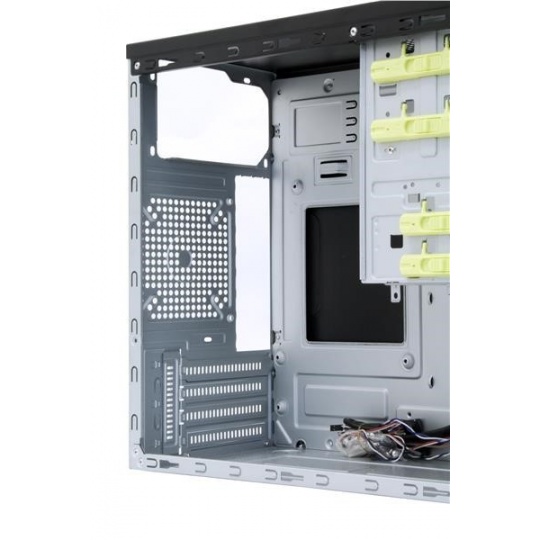

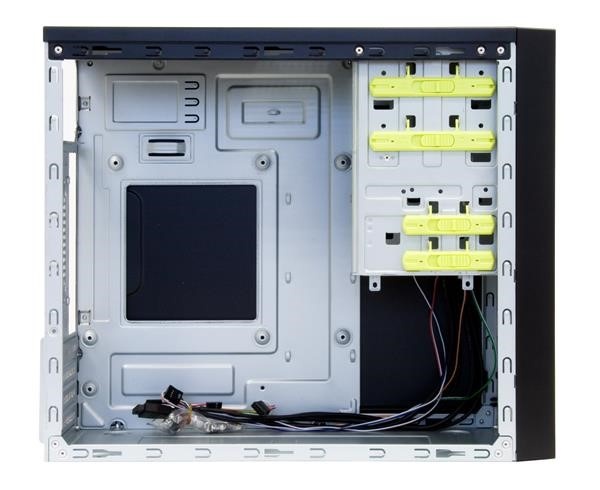

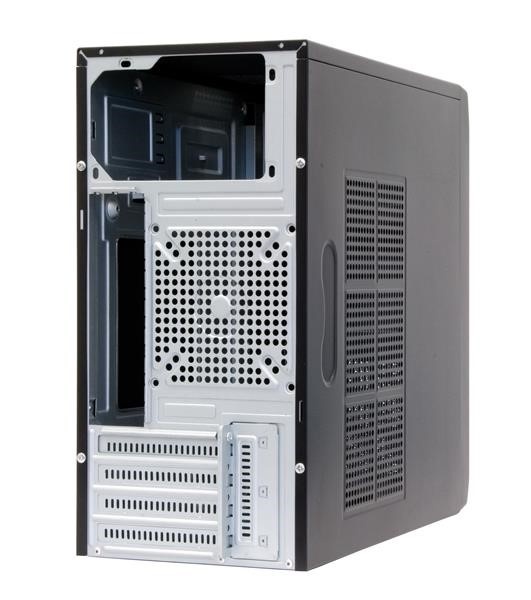

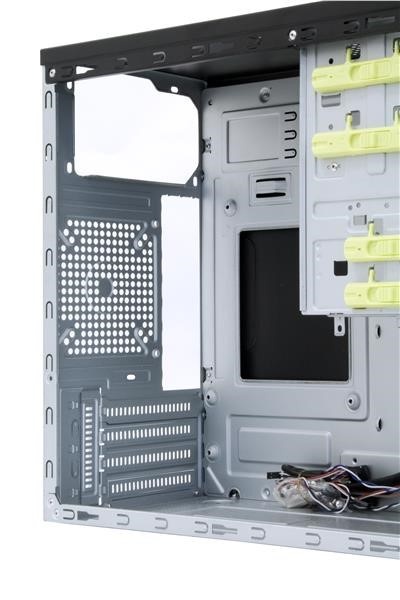

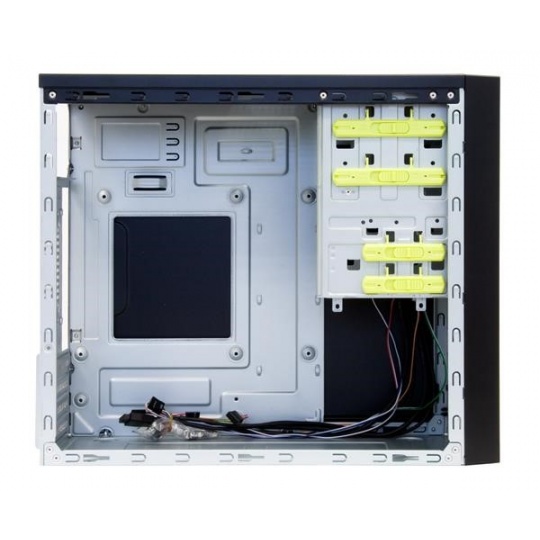

HT-01B – CHIEFTEC’s new compact chassis, the HT-01B, comes with a couple of new innovations. The eye-catching and outstanding front panel gives a brushed aluminum feeling. Next to the front audio ports, it offers as well, two USB 3.0 ports that allow the user to copy files with up to 5 GBit/s (USB 3.0 Super-Speed). To keep the temperature inside the chassis at a low 10 level, the side panels are equipped with large ventila-tion grills. Should this not be sufficient, an additional fan (80, 90 or 120 mm) can be installed at the rear side of the chassis. Thanks to the tool-less design, the installation of exter-nal drives (2x 5.25” and 1x 3.5”) are quick, easy and flawless thereby not using any slide rails or thumb screws. As for the internal drives, the mATX case of-fers enough space for two 3.5” and one 2.5” HDD’s. Last but not least the environmentally friendly packag-20 ing (the cardboard box) is made from 100% recyclable materials only.
Features:
Ergonomically positioned front interfaces
Solid
Space saving
2x USB 3.0 front connector
| M/B Support:
| mATX
|
| Dimension (DxWxH):
| 408mm x 180mm x 352mm (Stand +3mm)
|
| Weight:
| 4,5 kg w/o psu
|
| Drive Bays ext.:
| 2x 5,25" / 1x 3,5"
|
| Drive Bays int.:
| 2x 3,5" / 1x 2,5"
|
| Power Supply:
| 350Watt (GPA-350S8)
|
| Front I/O:
| 2x USB 3.0, Mic-in, Audio-out (AZALIA / HD-Audio)
|
| Expansion Slots:
| 4
|
| Material:
| 0,6mm
|
| Cooling (optional):
| 1x 80mm or 90mm or 120mm on the rear
|
| CPU cooler height (max.):
| 140mm
|
| VGA card lenght (max.):
| 340mm
|
http://www.chieftec.eu/en/chassis/mini-tower/ht-01b-new.html
