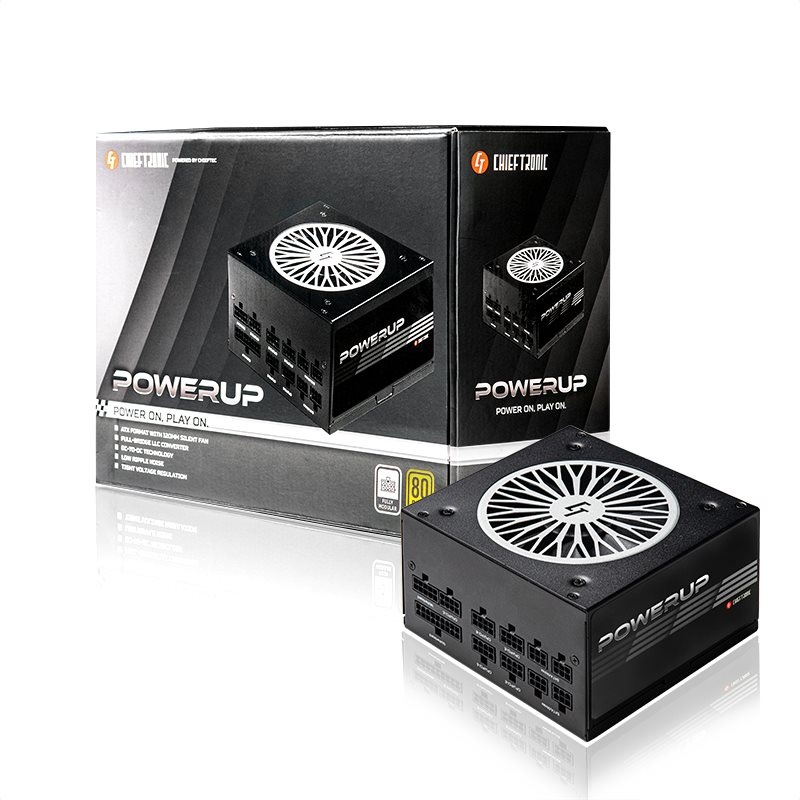

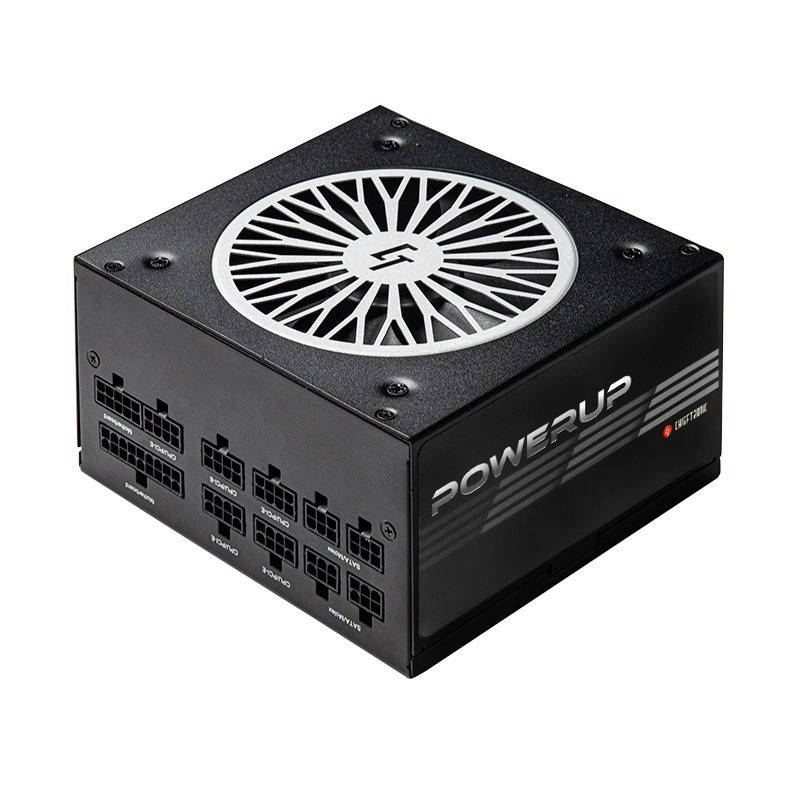

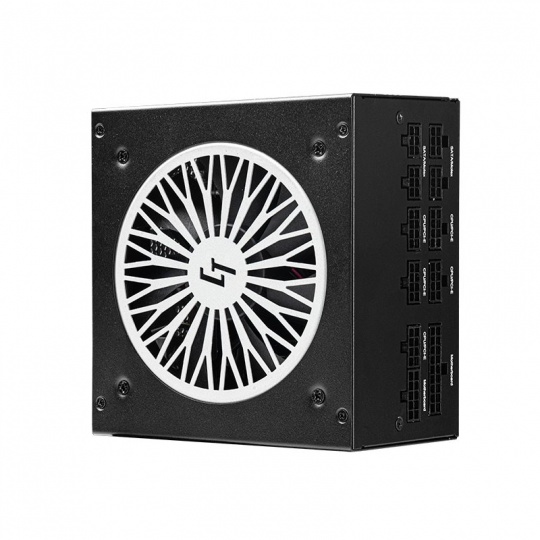

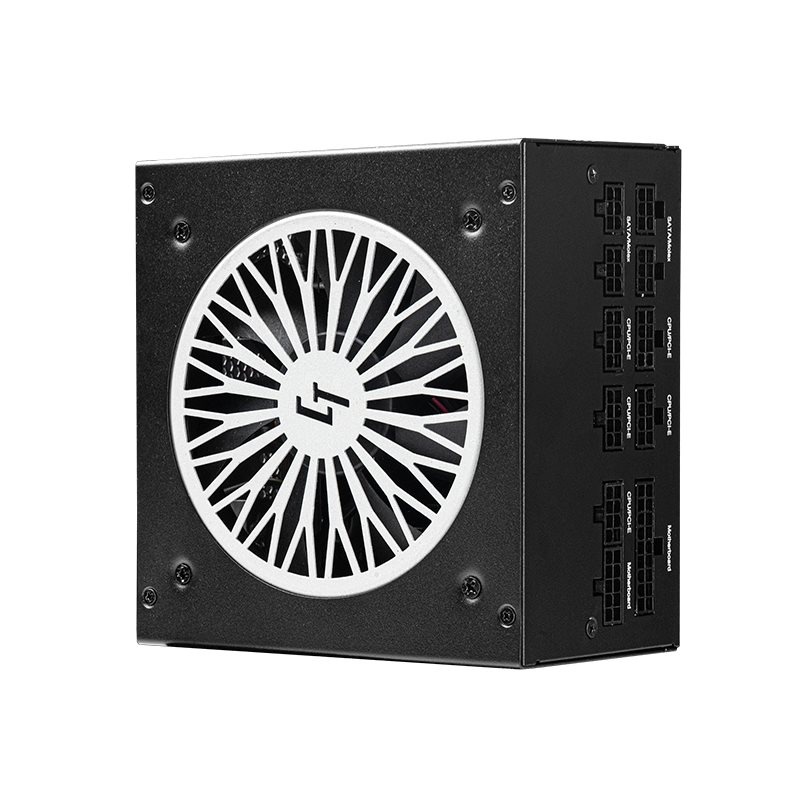

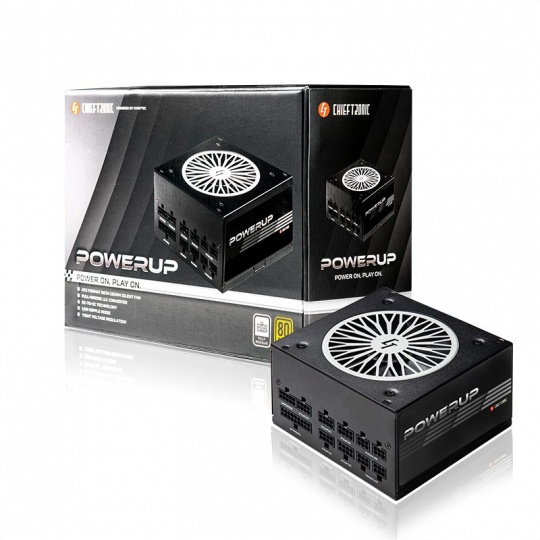

CHIEFTEC zdroj Chieftronic PowerUp GPX-550FC, 550W ATX,80PLUS GOLD,cable-mgt,retail
Popis a parametry
CHIEFTEC zdroj Chieftronic PowerUp GPX-550FC, 550W ATX,80PLUS GOLD,cable-mgt,retail
GPX-550FC
- 80 PLUS® Gold certified efficiency
- Fully modular cable management
- Full-bridge LLC converter with DC-to-DC technology
- Low ripple and tight voltage regulation
- 5-year warranty
With the PowerUp series, Chieftronic aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer’s market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.
A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS® Gold certified efficiency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat, black cables support builds even in very
large gaming cases.
- Fully modular cable management
- Full-bridge LLC converter with DC-to-DC technology
- Low ripple and tight voltage regulation
- 5-year warranty
With the PowerUp series, Chieftronic aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer’s market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.
A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS® Gold certified efficiency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat, black cables support builds even in very
large gaming cases.
Performance
Model | PowerUp 550W |
Article no. | GPX-550FC |
EAN code | 0753263077172 |
Weight (without/with package) | 2.15 kg / 2.7 kg |

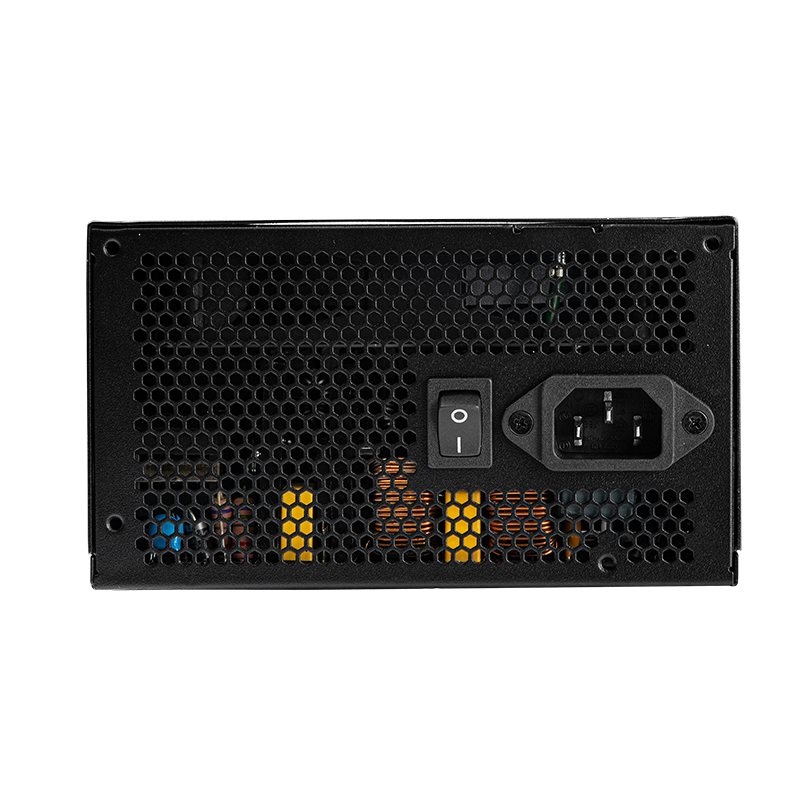

AC Input | 100 - 240V / 8.0A |
Frequency | 47 - 63Hz |
+5V | 20A |
+3,3V | 20A |
+5V & +3,3V combined | 100W |
+12V | 45.5A/ 546W |
-12V | 0.3A / 3.6W |
+5VsB | 2.5A / 12.5W |
Maximum Power | 550W |

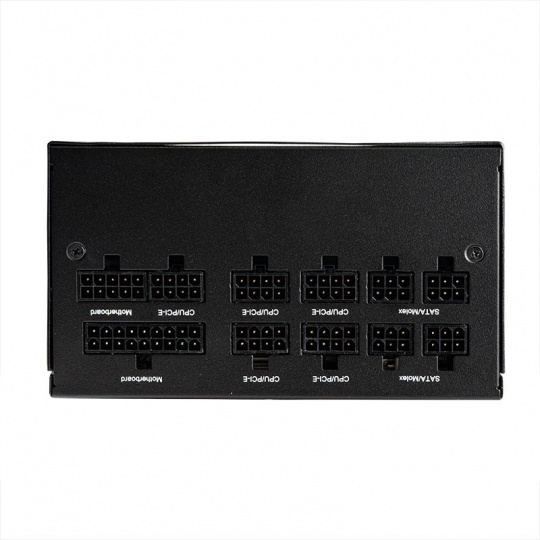

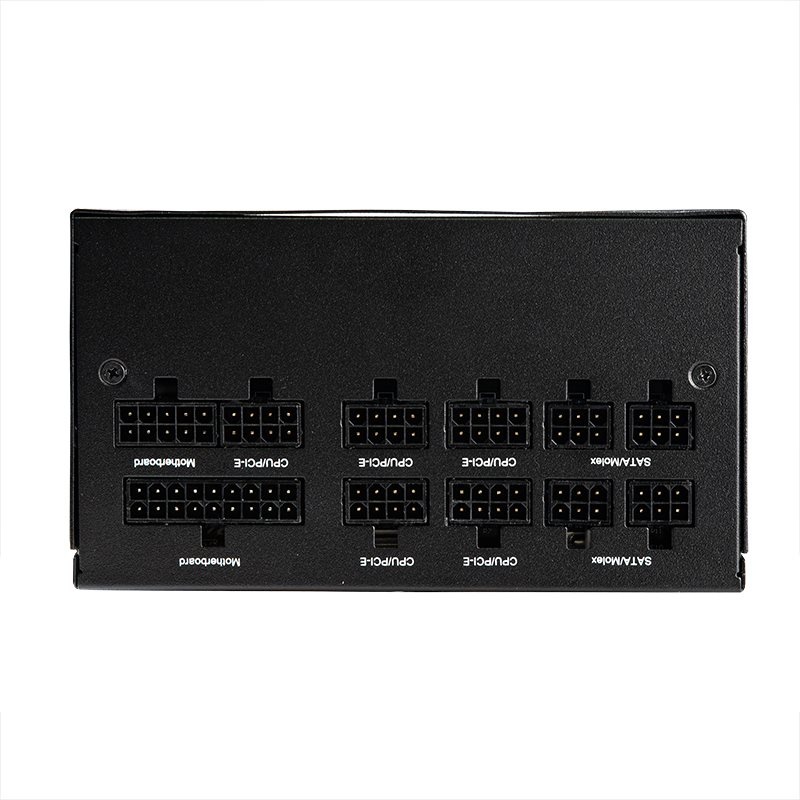

Connectors
20+4PIN ATX | 1 |
8 PIN CPU (4+4) | 2 |
8 PIN PCIe (6+2) | 2 |
SATA | 6 |
MOLEX | 3 |
FLOPPY | 1 |

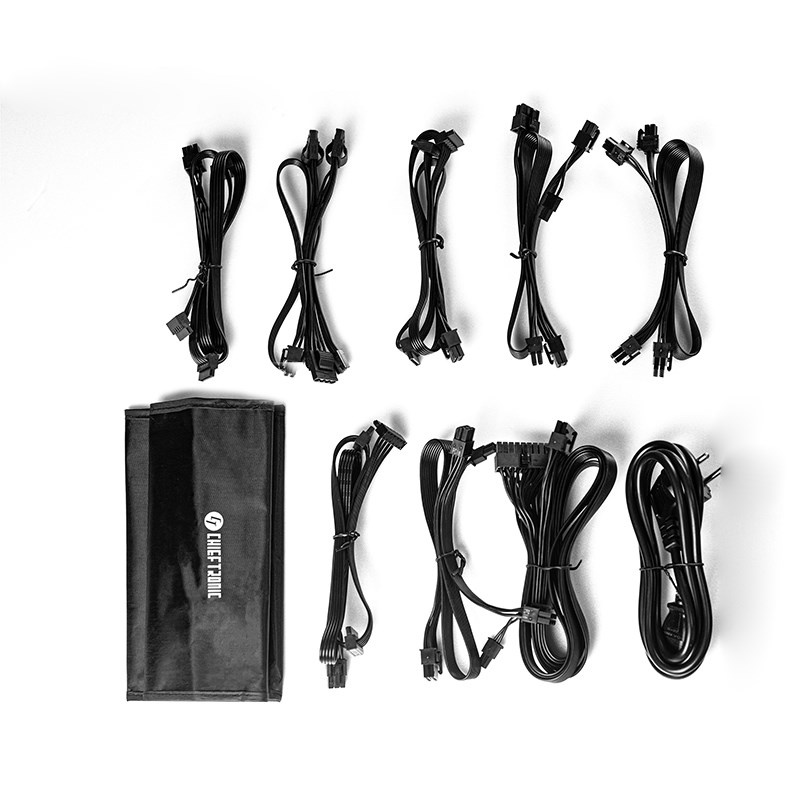

Cable length
20+4PIN ATX | 650 |
8 PIN CPU (4+4) | 650/150 |
8 PIN PCIe (6+2) | 2x 500 |
SATA | 2x 500/150/150 |
MOLEX | 500/150/150/150 |
FLOPPY | Molex |
Features
ATX 12V Version | v2.53 |
Efficiency | 80 PLUS Gold |
Dimension (DxWxH) | 140 mm x 150 mm x 86 mm |
PFC | Active PFC |

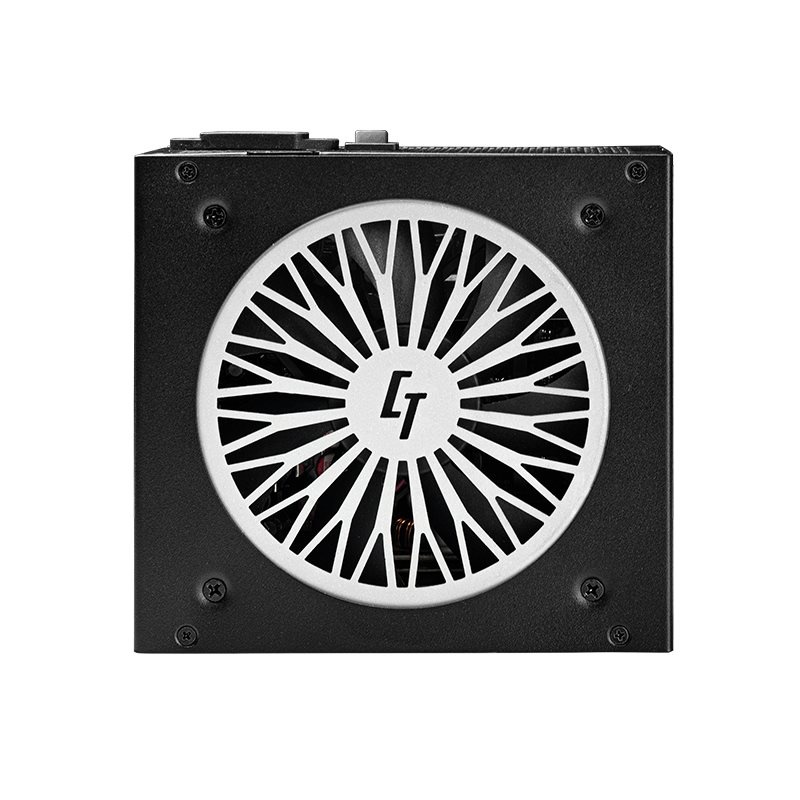

Fan | 120mm silent fan |
Security |
|
Warranty | 60 Months |
ParametryPorovnání
Formát zdroje
ATX
Konektory
PCIe 8-pin
Konektory
Molex
Konektory
SATA 15-pin
Konektory
FDD
Konektory pro základní desku
ATX 20-pin
Konektory pro základní desku
ATX 24-pin
Konektory pro základní desku
EPS 8-pin
Vlastnosti zdroje
Modulární kabeláž
Efektivita zdroje
80 Plus Gold
Modulární kabeláž
Ano
Výkon zdroje (W)
550
