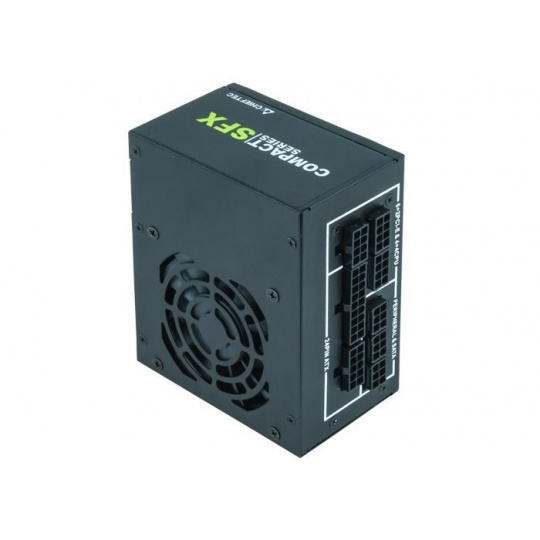

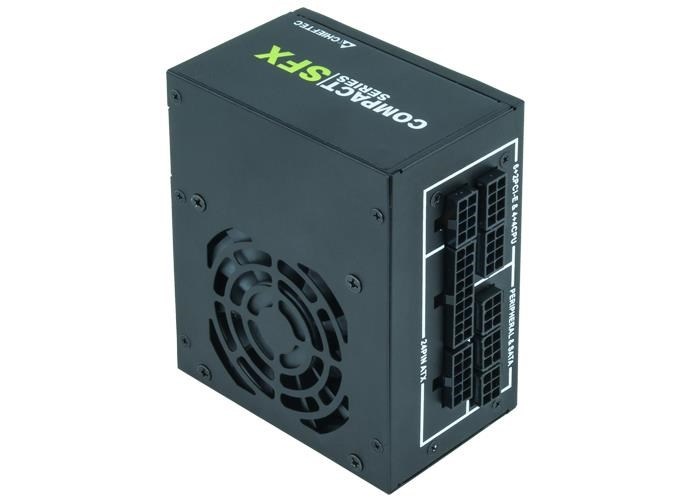

CHIEFTEC zdroj SFX CSN-650C 650W, 80+ Gold,full range, cable management

Name: CHIEFTEC zdroj SFX CSN-650C 650W, 80+ Gold,full range, cable management
Brand: Chieftec
SKU: 1022548
Price: 2281 CZK
Availability: InStock

-5%

Kód: 1022548

Kód dod.: CSN-650C

EAN: 4710713235779

Záruka: 24 Měsíc(ů)

Výrobce: Chieftec

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

CHIEFTEC zdroj SFX CSN-650C 650W, 80+ Gold,full range, cable management

This small SFX PSU surprises with massive power and an incredible power output of 650 watts. You won’t have unnecessary cables anymore as it comes with a cable managment and 80plus gold certification. The 80mm Ultra Silent fan is perfect to cool down the power supply.

SPECIFICATIONS:

Performance

AC Input:	100V-240V / 6A
Frequency:	47-63 Hz
+5V:	15A
+3,3V:	18A
+5V & +3,3V combined:	90W
+12V 1:	54A
+12V 2:	N/A
+12V 1 & +12V 2 combined:	N/A
+12V 3:	N/A
+12V 4:	N/A
+12V 3 & +12V 4 combined:	N/A
P.F.:	>0,9
-12V:	0,3A
+5VSB:	3,0A
Maximum Load:	650W

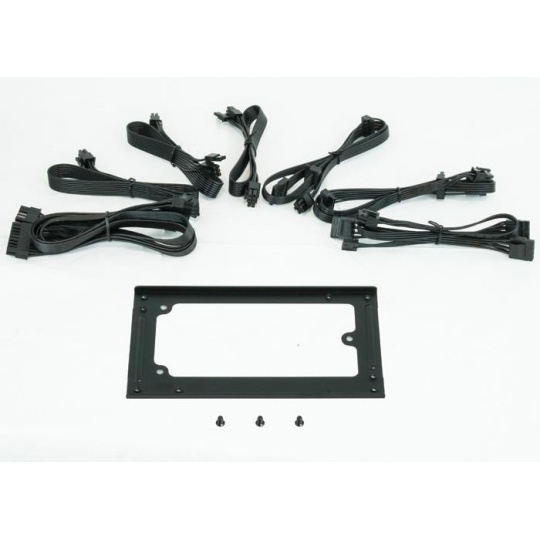

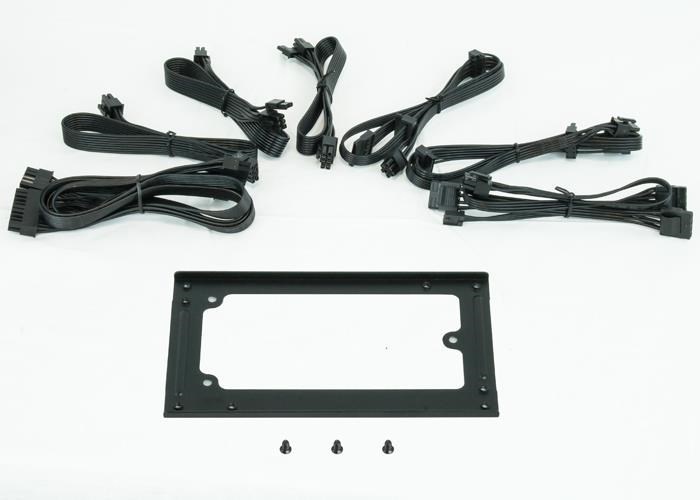

Modular cable

20+4PIN ATX:	1
SATA:	4
MOLEX:	3
Floppy:	1
4PIN 12V:	-
8PIN 12V:	-
8PIN (4+4) 12V:	1
6PIN PCIe:	-
8PIN (6+2) PCIe:	2

Features

Spezification:	ATX 12V 2.3
Form factor:	SFX
Efficiency:	> 90%
Dimension (DxWxH):	100 mm x 125 mm x 64 mm
PFC:	Active PFC (0,9)
Fan:	80mm silent fan
Security:	UVP (Undervoltage protection) OVP (Overvoltage protection) SCP (Short-circuit protection) OPP (Overload protection) OCP (Over Current Protection) OTP (Over Temperature Protection) AFC (Automatic Fanspeed Control) SIP (Surge & Inrush Protection)
Warranty:	24 Month

ParametryPorovnání

Formát zdroje

SFX

Konektory

SATA 15-pin

Konektory pro základní desku

EPS 8-pin

Efektivita zdroje

80 Plus Gold

Modulární kabeláž

Ano

Výkon zdroje (W)

650
