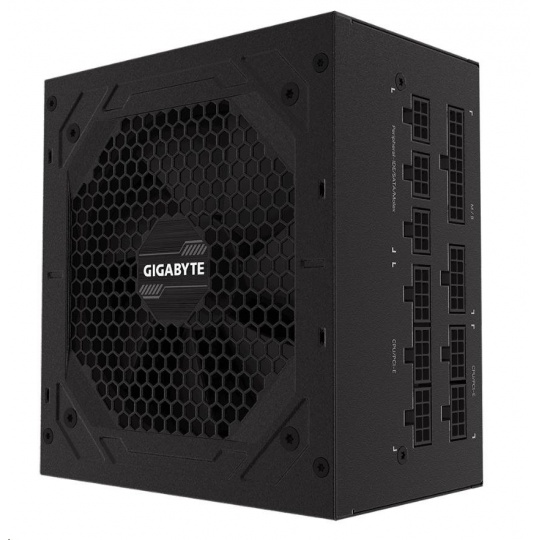

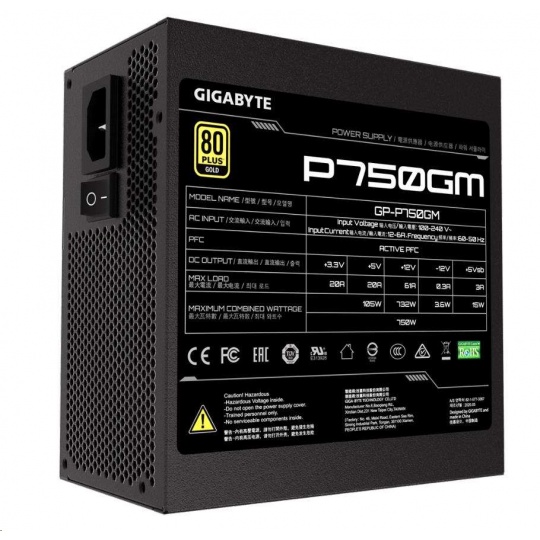

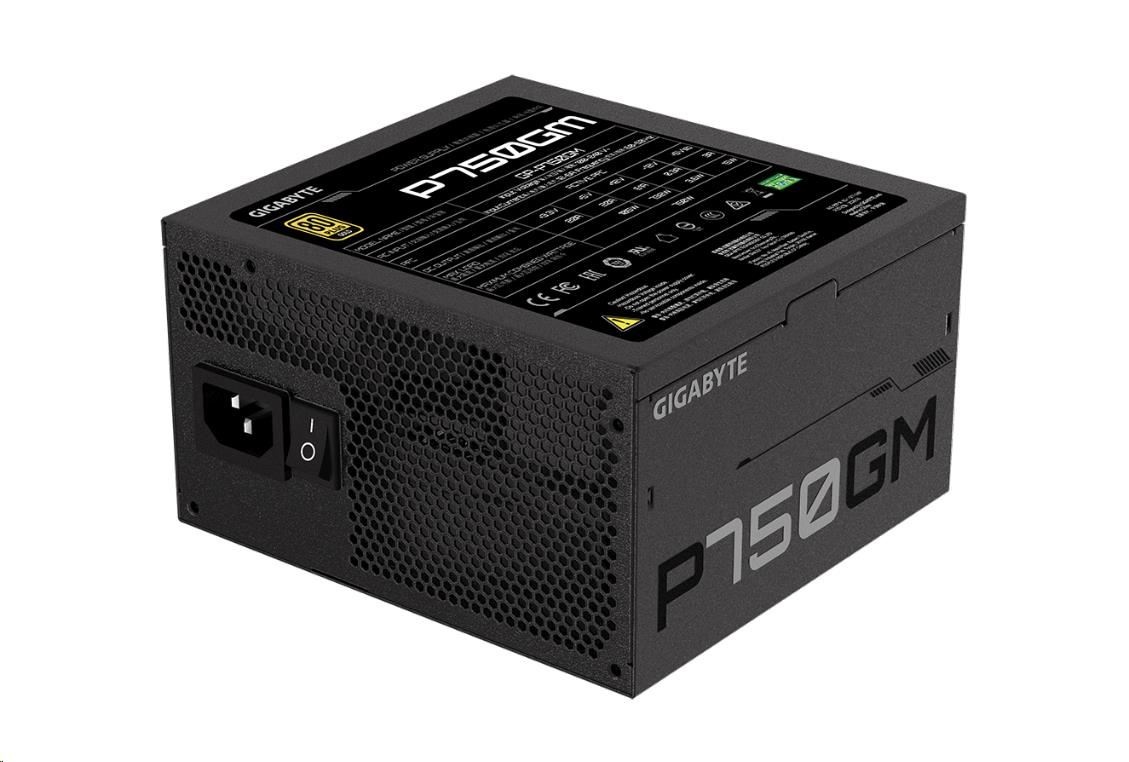

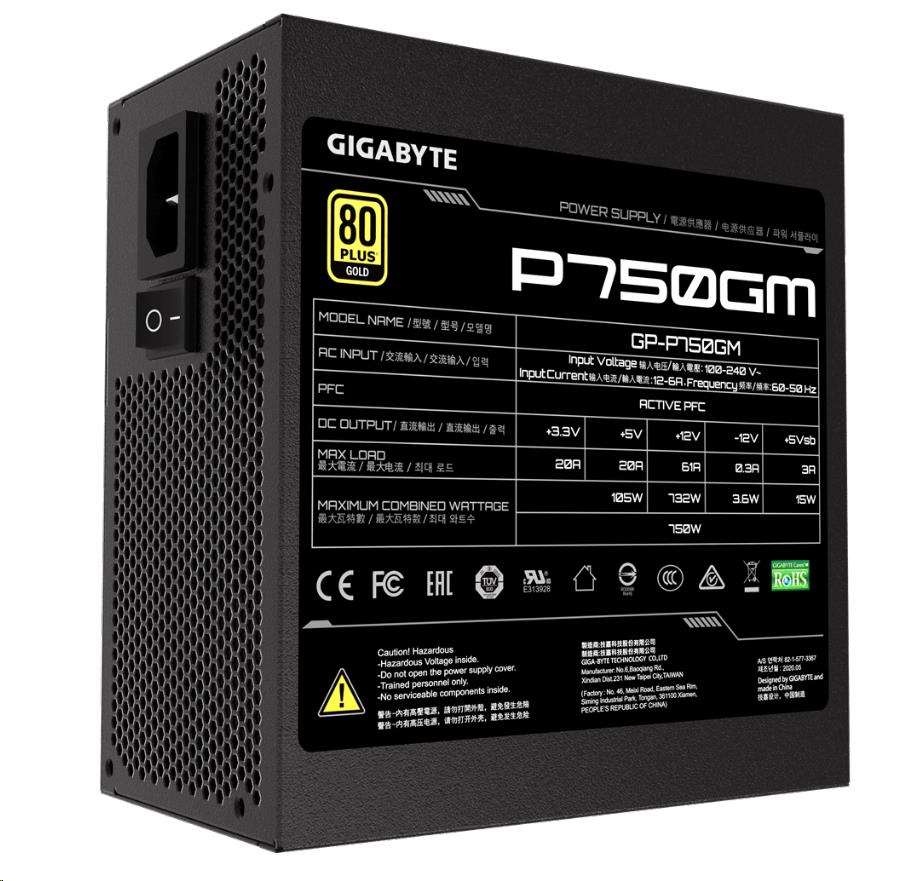

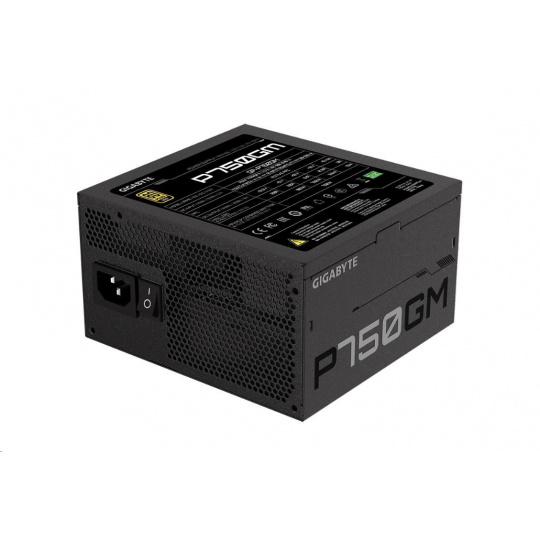

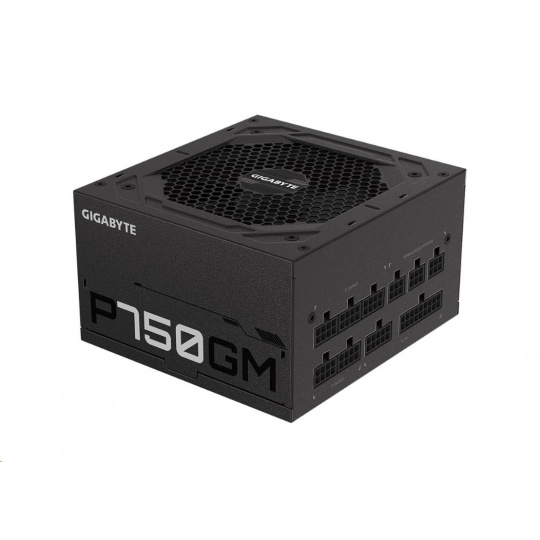

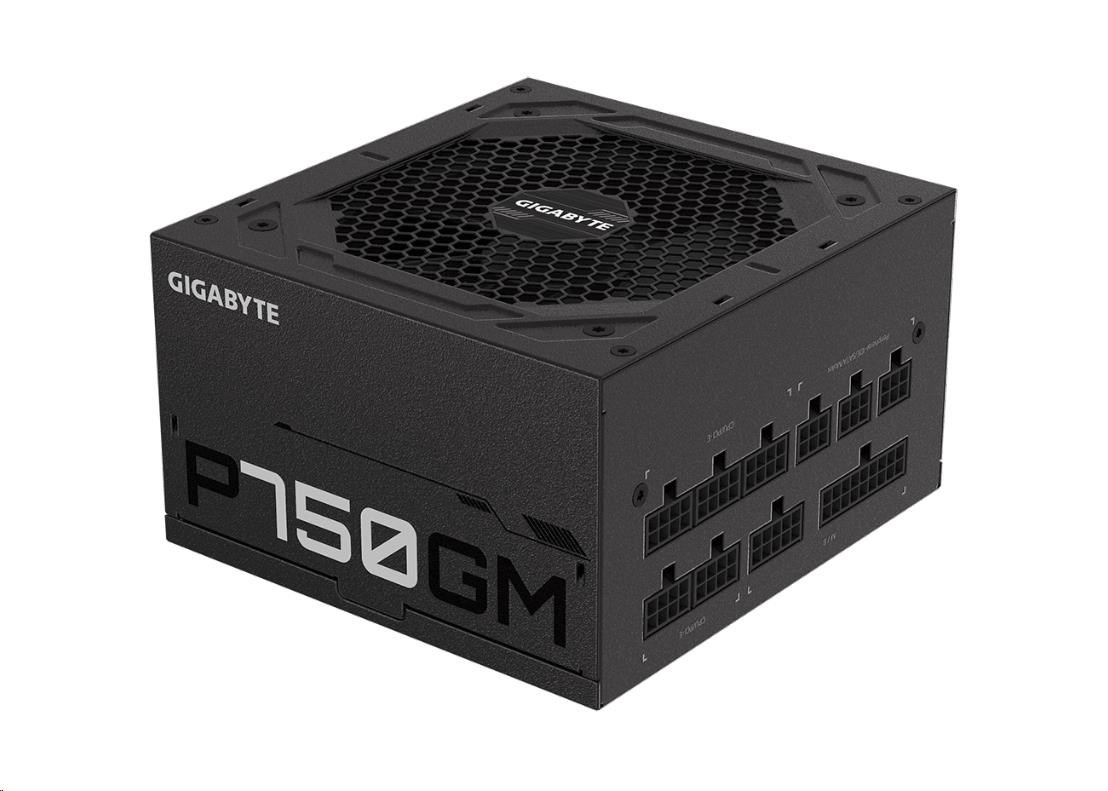

GIGABYTE zdroj P750GM, 750W, 80plus gold, modular, 120 mm fan
Popis a parametry
GIGABYTE zdroj P750GM, 750W, 80plus gold, modular, 120 mm fan
P750GM
- 80 PLUS Gold certified

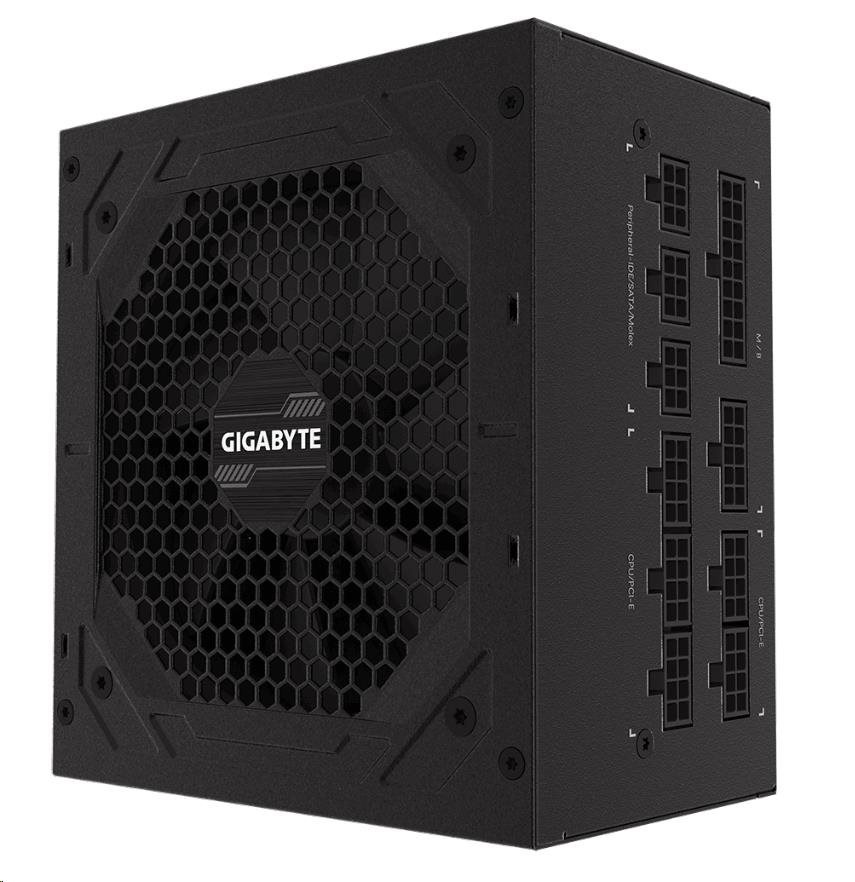

- Fully modular design

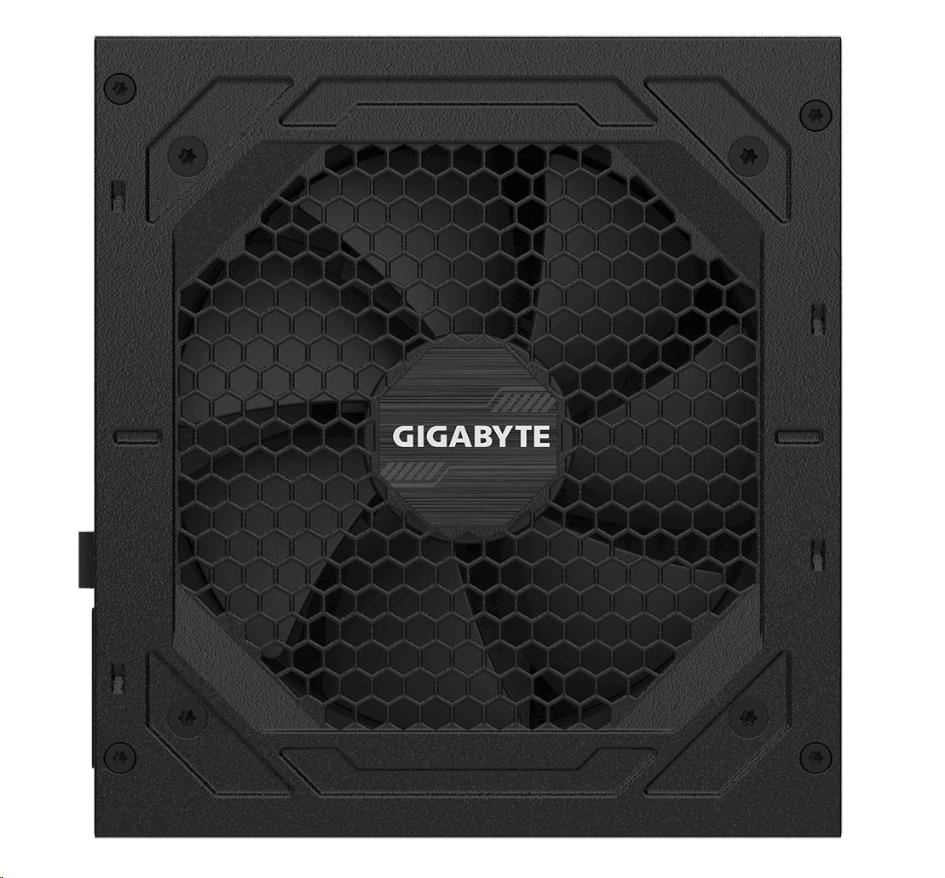

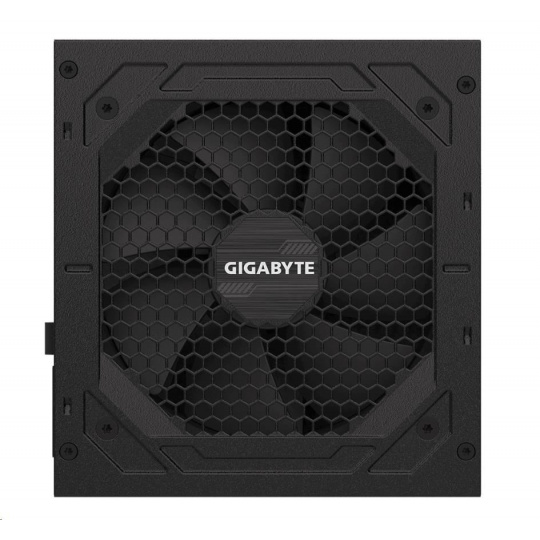

- 120mm Smart Hydraulic Bearing (HYB) Fan
- Japanese capacitors
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- Compact size
- 5 years warranty (Adjusted according to different regions)
TECHNICAL SPECIFICATIONS
| Model | P750GM |
| Type | Intel Form Factor ATX 12V v2.31 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 12-6A |
| Input Frequency | 50-60 Hz |
| Output Capacity | 750W |
| Dimension | D150 x W140 x H86 mm |
| Fan Type | 120mm Hydraulic Bearing fan |
| 80+ | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-500ms |
| Hold up Time | >16ms |
| Cable Type | Flat, All black |

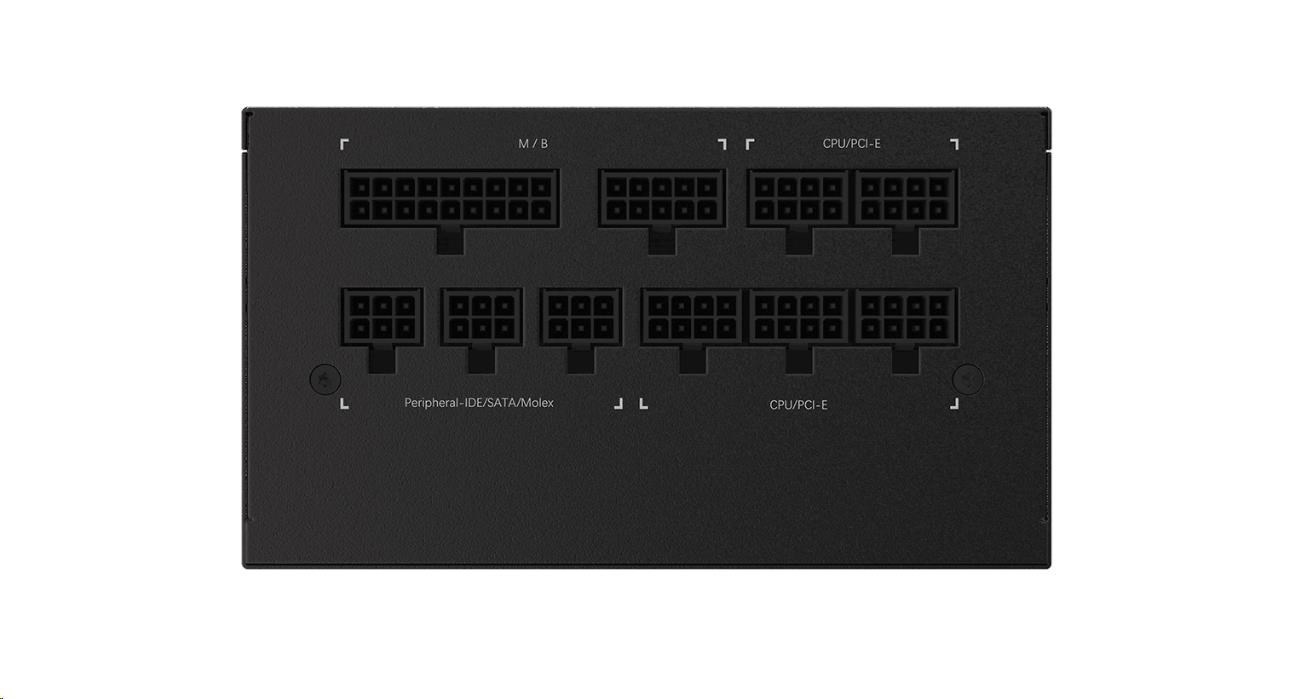

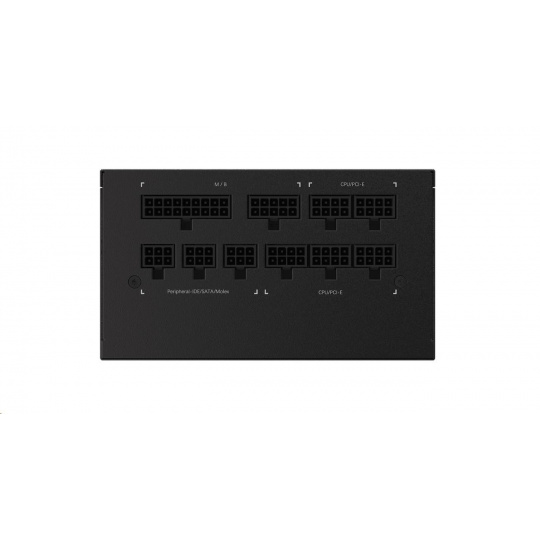

| Connectors | ATX/MB 20+4 Pin x 1 : 600mm*1 CPU/EPS 4+4 Pin x 2 : 600mm*2 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 : 4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm *1 |
.
ParametryPorovnání
Formát zdroje
ATX
Konektory
PCIe 8-pin
Konektory
SATA 15-pin
Konektory
Molex
Konektory
FDD
Konektory
8pin CPU 1x
Konektory pro základní desku
ATX 24-pin
Konektory pro základní desku
EPS 8-pin
Efektivita zdroje
80 Plus Gold
Modulární kabeláž
Ano
Výkon zdroje (W)
750
