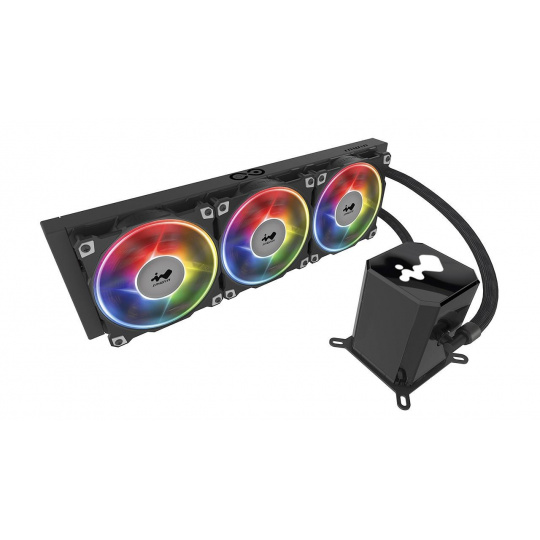

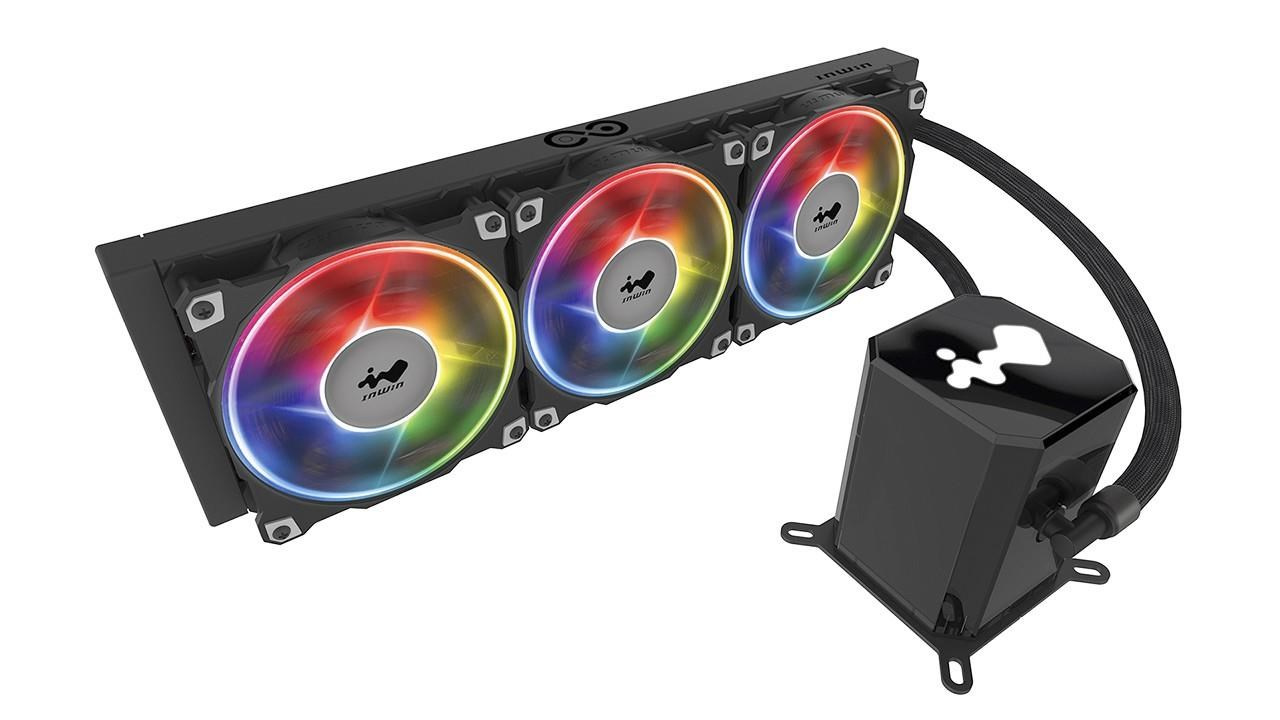

IN WIN CPU chladič SR36, 360mm, 500-2500 RPM, 23 dBA, 101.5 CFM
Popis a parametry
IN WIN CPU chladič SR36, 360mm, 500-2500 RPM, 23 dBA, 101.5 CFM
SR36
Twin turbines liquid CPU cooler
- Patented Integrated Twin Turbines - The patented twin-turbine function runs parallel with one another and functions simultaneously to push both currents toward the copper cold-plate to significantly reduce the temperature and keep hardware cool.
- Cautionary LEDs - The pump illuminates a white LED logo under normal circumstances. If it detects an unusual current or excessive heat, the LEDs will flash red and blue to prevent damaging components.
- Approach to Noise Reduction - The noise of an All-In-One liquid cooling radiator is difficult to control. The main reason is because of the way the high airflow sounds when it runs through the traditional radiator fins. To combat this, the SR series feature the AJF120 fans to provide the best operation performance, while reducing noise pollution.
- Array of Microchannel Fins - The SR series possesses a high waterflow pump, which enhances cooling performance directly on the copper plate to cool the CPU. The copper plate hosts an array of microchannel fins that dissipates heat.
- Syncs with Addressable Motherboards - There are about 16.8 million ARGB color possibilities, which means the AJF120 case fans allow the customization to meet your build’s standards. Users can choose to control lighting independently by using the One-Click controller included or to sync with an addressable motherboard (3-pin, 5V).
TECHNICAL SPECIFICATIONS
Model | SR36 |
Model Number | IW-LC-SR36 |
CPU Socket Support | Intel® LGA 2066/2011-V3/2011/1366/1156/1155/1151/1150/1200 AMD® AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1/TR4 |

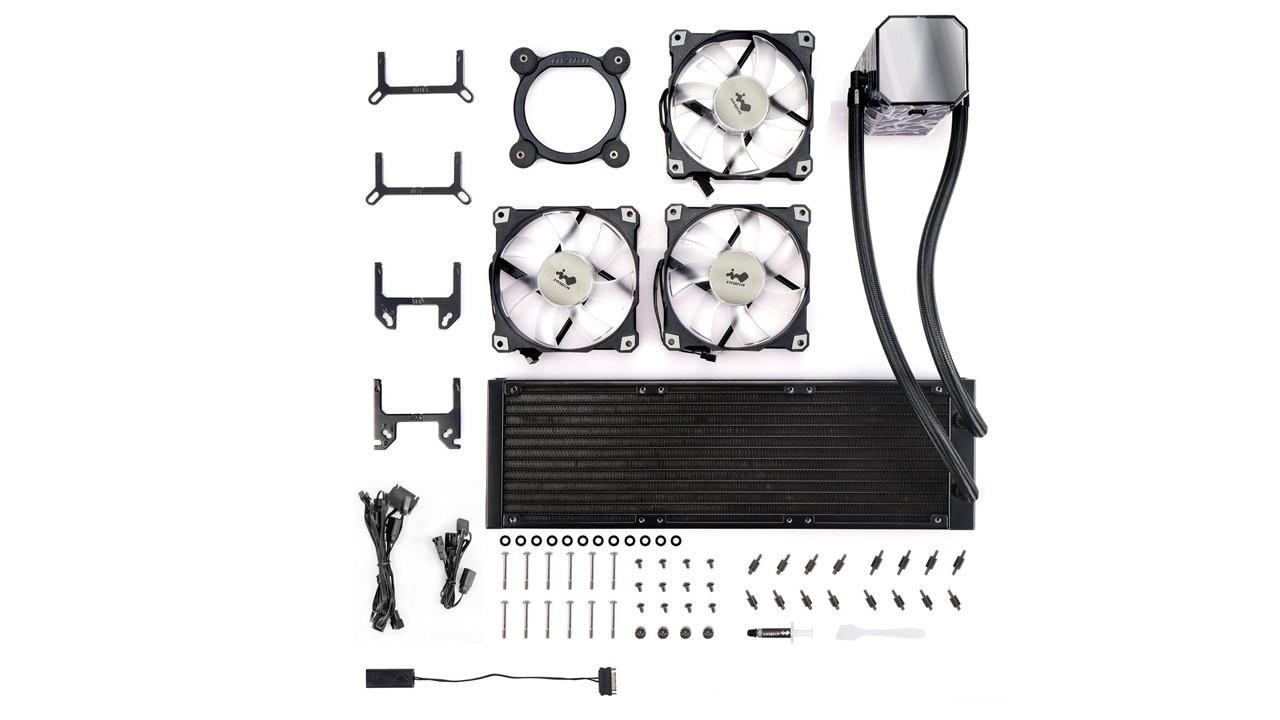

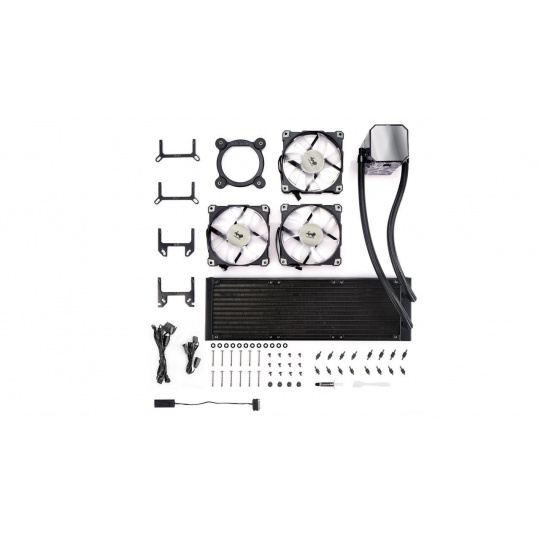

Package Contents | InWin SR series 360mm CPU Liquid Cooler *1 InWin AJF120 Addressable Fan * 3 ARGB One-Click Controller Fan and Radiator Mounting Screws Pack Mounting Kit for CPU Sockets Cable Pack |
Package Dimension (H x W x D) | 142 x 244 x 459 mm (5.6" x 9.6" x 18") |

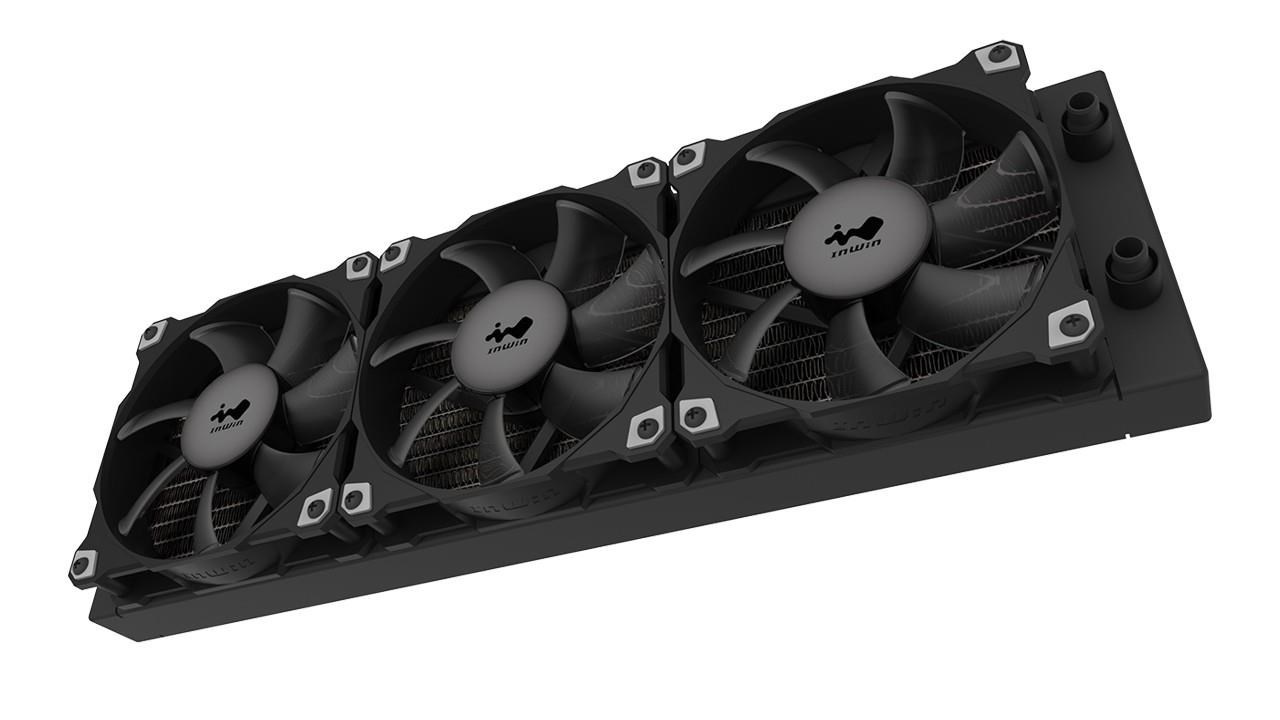

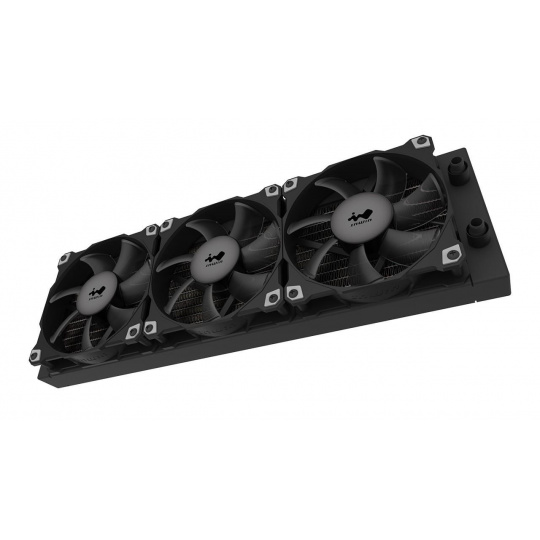

Radiator | |
Dimensions | 397 x 120 x 27 mm (15.6 x 4.7 x 1.1") |
Material | Aluminium |
Tube Length | 400 mm |
Tube Material | Rubber with Nylon Braided Sleeve |

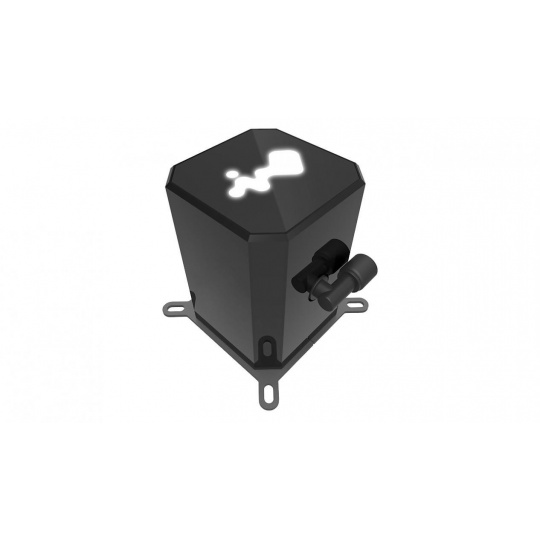

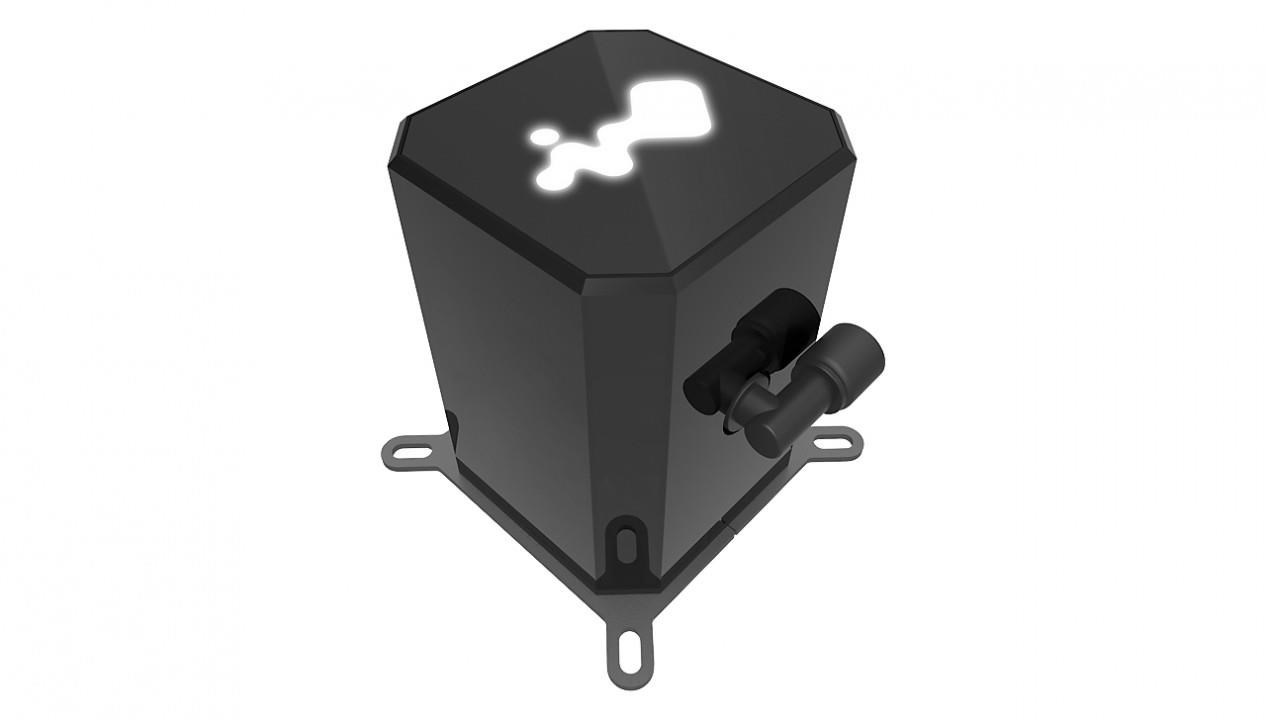

Water Block & Pump | |
Dimensions | 68 x 68 x 100 mm |
Materials | Copper, Plastic |
Pump Speed | 2400±10%RPM |
Fan | |
Model | Jupiter Series AJF120 |
Quantity Included | 3 PCS |
Dimensions (L x W x H) | 120 x 120 x 26 mm |
Speed Mode (PWM) | PWM 500-2500 RPM +/- 10% |
Noise Level | 23 dBA (normal) |
Airflow | 101.5 CFM (max) |
Static Pressure | 4.22 mm-H2O |
Connectors | 4-pin (12V, PWM) , 3-pin (5V, ARGB) |
Bearing Type | Double Ball Bearing |
.
ParametryPorovnání
Využití chladiče
Na procesory
Typ chladiče
Vodní
Barva podsvícení
RGB
Velikost ventilátoru
120x120
