MSI MB Sc LGA1700 MAG Z690 TORPEDO, Intel Z690, 4xDDR5, 1xDP, 1xHDMI

Socket (patice):Socket 1700; Chipset:Intel Z690; Technologie paměti RAM:DDR5; Formát základní desky:ATX; Podpora RAID:1, 5, 10; PCI Express x16:Více než 1; Integrovaná LAN karta:1; Další rozhraní:M.2.... více
Běžná cena: 7 713  (-3%)
6 168.6 Kč bez DPH
Skladem > 5 ks
7 464 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 2648213
Kód dod.: MAG Z690 TORPEDO
EAN: 4719072886578
Záruka: 36 Měsíc(ů)
Výrobce: MSI
Popis a parametry

MSI MB Sc LGA1700 MAG Z690 TORPEDO, Intel Z690, 4xDDR5, 1xDP, 1xHDMI

MAG Z690 TORPEDO

  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 6400(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™

PROCESSOR

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors *
Processor socket LGA1700
*Please go to msi.com to get the newest support status as new processors are released.

CHIPSET

Intel® Z690 Chipset

MEMORY

4x DDR5 memory slots, supporting up to 128GB *
Supports 1R 4800 MHz (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 6400+ MHz
1DPC 2R Max speed up to 5400+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
*Please refer to www.msi.com for more information on compatible memory.

EXPANSION SLOT

3x PCIe x16 slots
PCI_E1 (From CPU)
Support up to PCIe 5.0 x16
PCI_E3 (From Z690 chipset)
Support up to PCIe 3.0 x4
PCI_E4 (From Z690 chipset)
Support up to PCIe 3.0 x1
1x PCIe 3.0 x1 slot (From Z690 chipset)

MULTI-GPU

Supports AMD® CrossFire™ Technology

ONBOARD GRAPHICS

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz */**
1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz */**
*Available only on processors featuring integrated graphics.
**Graphics specifications may vary depending on the CPU installed.

STORAGE

6x SATA 6Gb/s ports (From Z690 chipset)
4x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (From Z690 chipset)
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_3 slot (From Z690 chipset)
Supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_4 slot (From Z690 chipset)
Supports up to PCIe 4.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Intel® Optane™ Memory Ready for M.2 slots from Z690 Chipset
Supports Intel® Smart Response Technology for Intel Core™ processors

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

USB

Intel® Z690 Chipset
1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel
4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector, 3 Type-A ports on the back panel)
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal connector)
1x USB 2.0 Type-A port on the back panel
Hub-GL850G
5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)

AUDIO

Realtek® ALC4080 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

LAN

1x Intel® I225V 2.5Gbps LAN controller

INTERNAL CONNECTORS

1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
4x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Clear CMOS jumper
1x TBT connector (supports RTD3)
1x Tuning Controller connector

LED FEATURE

1x EZ LED Control switch
1x 4-pin RGB LED connectors
3x 3-pin RAINBOW LED connectors
4x EZ Debug LED

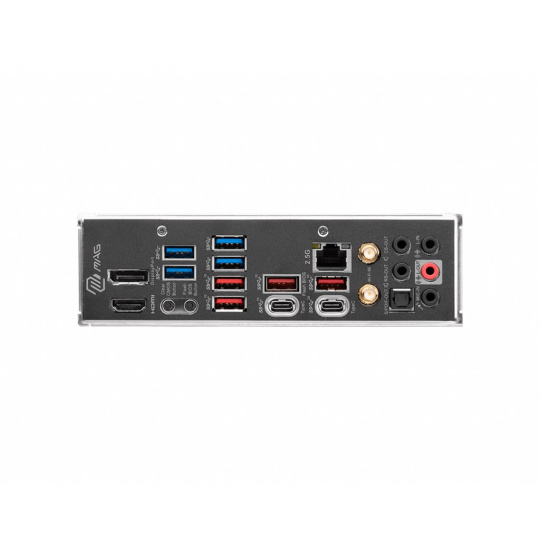

BACK PANEL PORTS

DisplayPort 1.4
USB 2.0 Port
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port
HD Audio Connectors
HDMI 2.1 Port
Flash BIOS Button
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2 10Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
Optical S/PDIF OUT
MAG Z690 TOMAHAWK back panel ports

DIMENSIONS

ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)

.
ParametryPorovnání
Technologie paměti RAM
DDR5
Socket (patice)
Socket 1700
Formát základní desky
ATX
Chipset
Intel Z690
PCI Express x16
Více než 1
Integrovaná LAN karta
1
Podpora RAID
10
Další rozhraní
M.2
