MSI MB Sc LGA1700 PRO Z690-A WIFI, Intel Z690, 4xDDR5, 1xDP, 1xHDMI, WI-FI

Socket (patice):Socket 1700; Formát:ATX; Integrovaná grafická karta; Chipset:Intel Z690; Technologie paměti RAM:DDR5; PCI express 16x:Více než 1; Integrovaná LAN karta:1; Rozhraní:HDMI, USB 2.0, USB 3.2, DisplayPort; Další rozhraní:WiFi.... více
Běžná cena: 6 608  (-5%)
5 207.44 Kč bez DPH
Na dotaz
6 301 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 2648195
Kód dod.: PRO Z690-A WIFI
EAN: 4719072886592
Záruka: 36 Měsíc(ů)
Výrobce: MSI
Popis a parametry

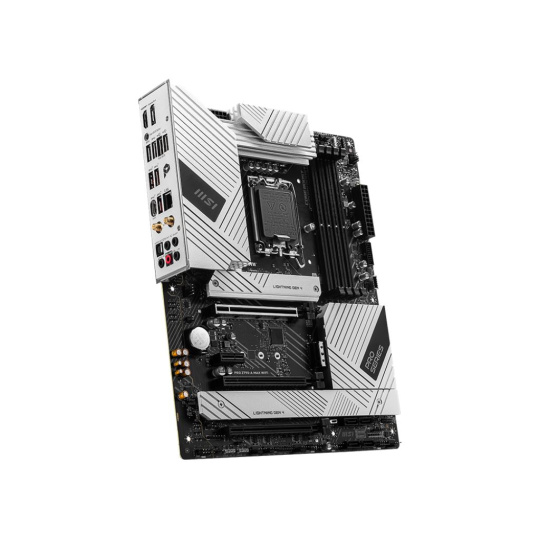

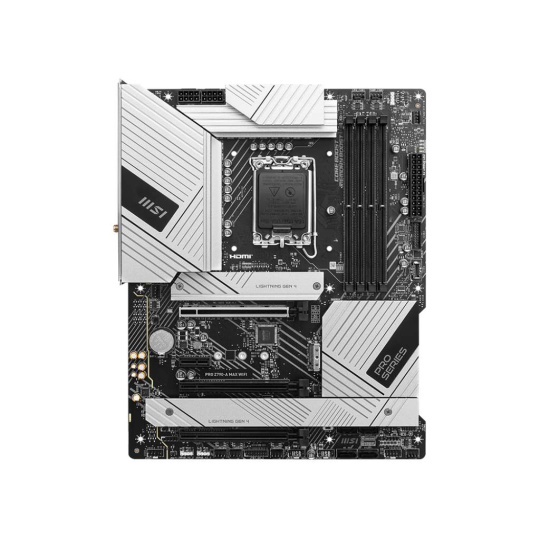

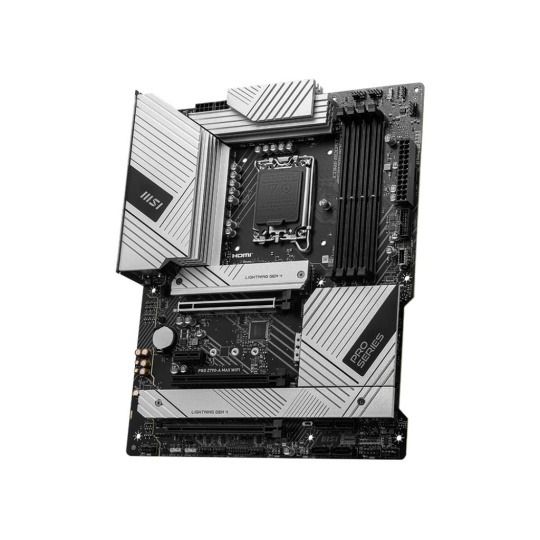

MSI MB Sc LGA1700 PRO Z690-A WIFI, Intel Z690, 4xDDR5, 1xDP, 1xHDMI, WI-FI

PRO Z690-A WIFI

  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 6400+(OC) MHz
  • Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2
  • Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • Audio Boost: Reward your ears with studio grade sound quality
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire™

PROCESSOR

Supports 12th Gen Intel® Core™ , Pentium® Gold and Celeron® Processors
Processor socket LGA1700

CHIPSET

Intel® Z690 Chipset

MEMORY

4x DDR5 memory slots, supporting up to 128GB
Supports 1R 4800 MHz (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 6400+ MHz
1DPC 2R Max speed up to 5400+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

EXPANSION SLOT

3x PCIe x16 slots
PCI_E1 (from CPU)
Supports up to PCIe 5.0 x16
PCI_E3 & PCI_E4 (from Z690 chipset)
Supports up to PCIe 3.0 x4 & 3.0 x1
1x PCIe 3.0 x1 slot (from Z690 chipset)

ONBOARD GRAPHICS

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz */**
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz */**
*Available only on processors featuring integrated graphics.
**Graphics specifications may vary depending on the CPU installed.

MULTI-GPU

Supports AMD® CrossFire™ Technology

STORAGE

6x SATA 6Gb/s ports (from Z690 chipset)
4x M.2 slots (Key M)
M2_1 slot (from CPU)
Supports PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from Z690 chipset)
Supports PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_3 slot (from Z690 chipset)
Supports PCIe 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_4 slot (from Z690 chipset)
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Intel® Optane™ Memory Ready for M.2 slots that are from Z690 Chipset
Support Intel® Smart Response Technology for Intel Core™ processors

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

USB

Intel® Z690 Chipset
1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB connectors)
4x USB 2.0 Type-A ports on the back panel
USB Hub GL850G
4x USB 2.0 ports are available through the internal USB connectors

AUDIO

Realtek®ALC897 Codec
7.1-Channel High Definition Audio

LAN

1x Intel® I225-V 2.5Gbps LAN controller

WIRELESS LAN & BLUETOOTH®

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz *(160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.2**, FIPS, FISMA
*Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 version 21H1 and Windows 11.
**Bluetooth 5.2 will be ready in Windows 10 version 21H1 and Windows 11.

INTERNAL CONNECTORS

1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
4x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x Tuning controller connector
1x TBT connector (Supports RTD3)

LED FEATURE

1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
4x EZ Debug LED

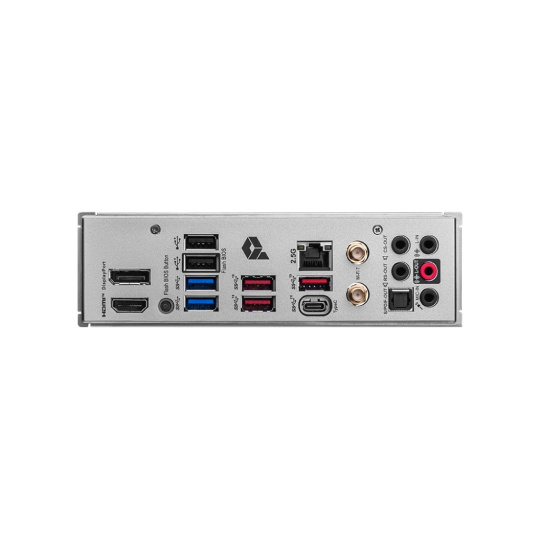

BACK PANEL PORTS

Keyboard / Mouse
DisplayPort
USB 2.0
LAN port
WIFI / Bluetooth
Audio connector
Flash BIOS Button
USB 2.0
HDMI
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
USB 3.2 Gen 2 10Gbps Type-A
PRO Z690 A WIF back panel ports

DIMENSIONS

ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)

MOUNTING

9 mounting holes

OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit

.
Technologie paměti RAM
DDR5
Rozhraní
USB 2.0
Socket (patice)
Socket 1700
Formát
ATX
Integrovaná grafická karta
Ano
Chipset
Intel Z690
PCI express 16x
Více než 1
Integrovaná LAN karta
1
Další rozhraní
WiFi
