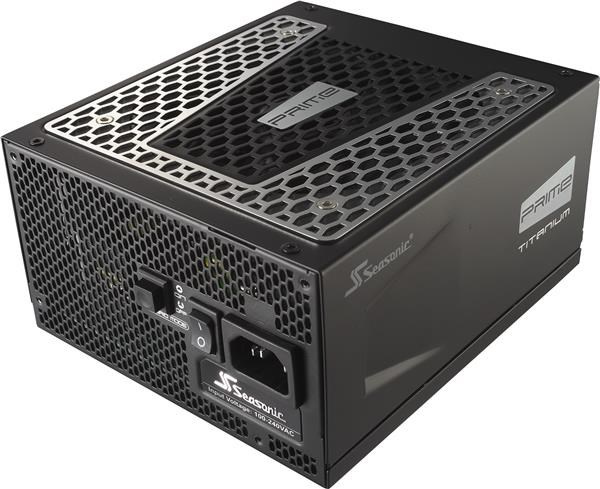

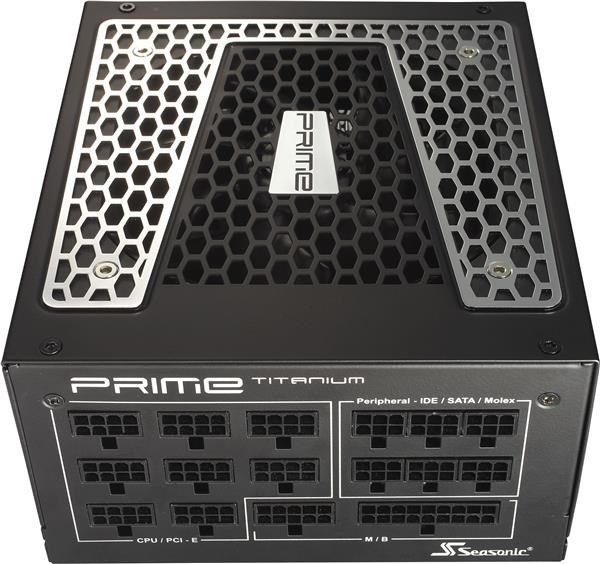

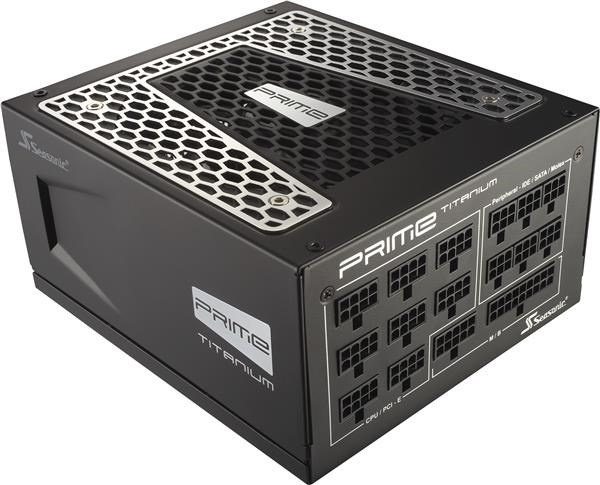

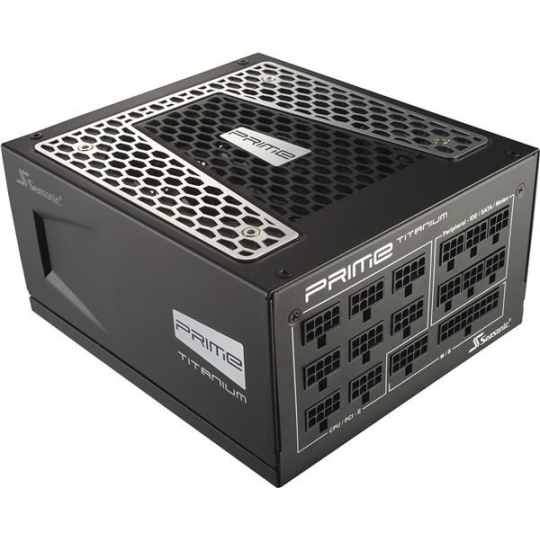

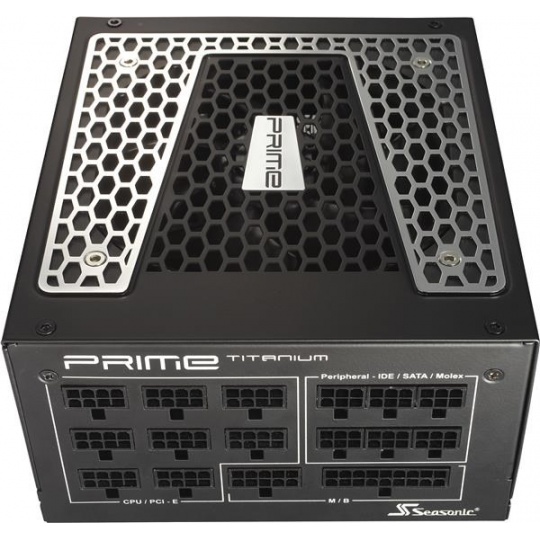

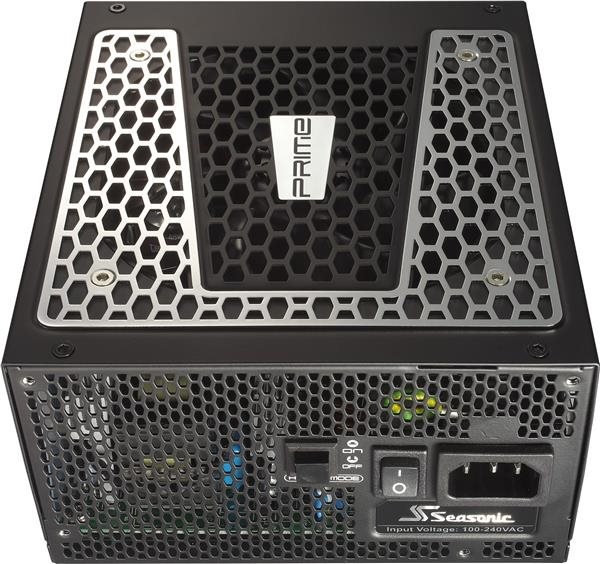

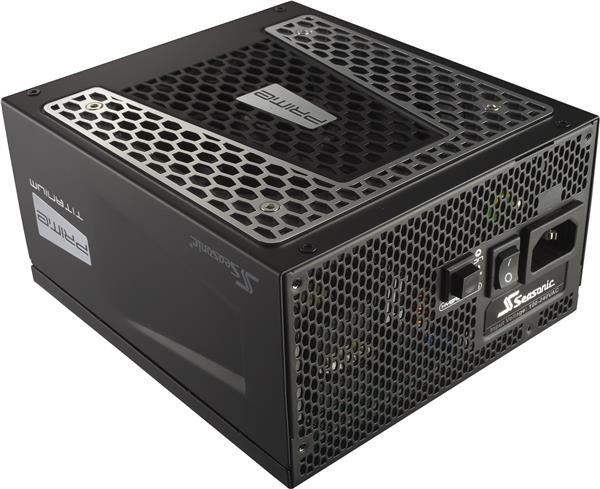

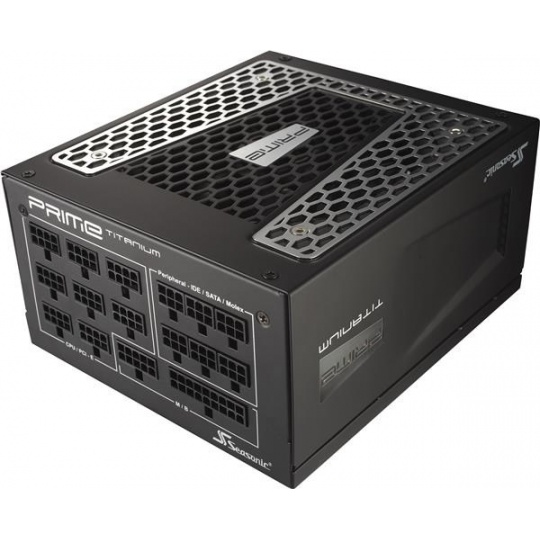

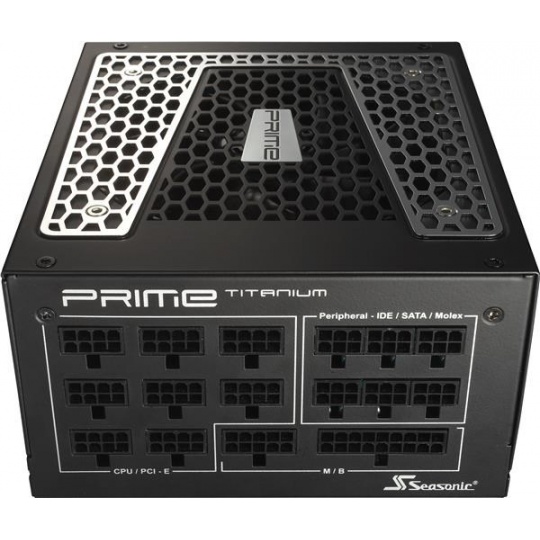

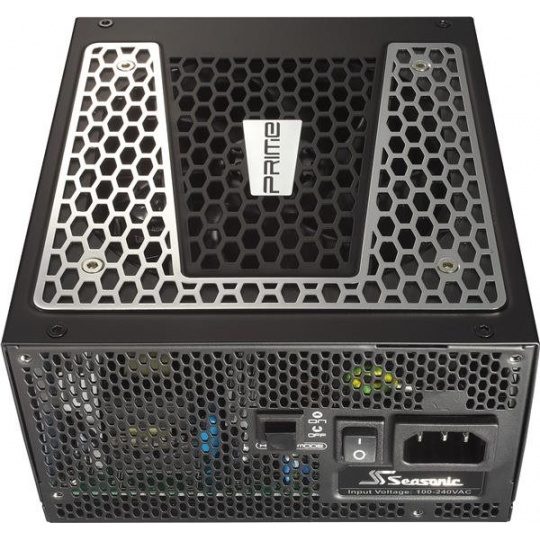

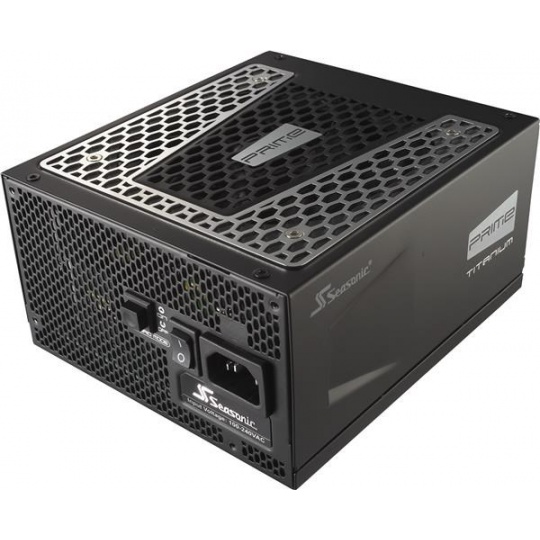

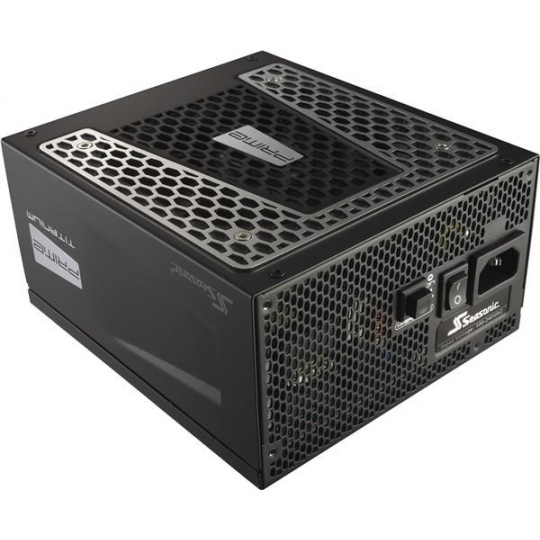

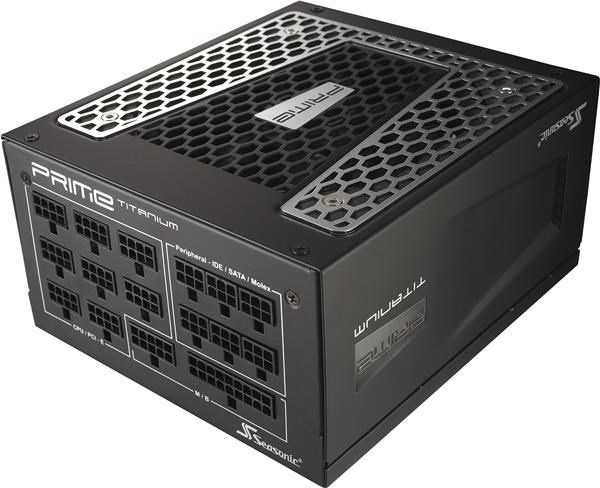

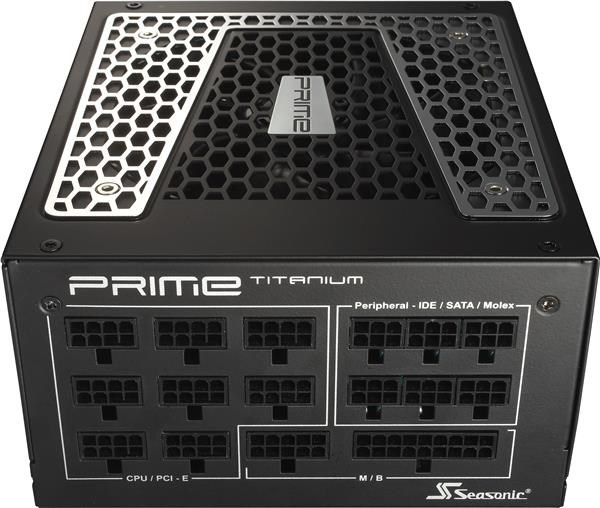

SEASONIC zdroj 650W Prime TX-650 (SSR-650TR), 80+ TITANIUM

Name: SEASONIC zdroj 650W Prime TX-650 (SSR-650TR), 80+ TITANIUM
Brand: Seasonic
SKU: 522057
Price: 4475 CZK
Availability: OutOfStock

-21%

Kód: 522057

Kód dod.: PRIME-TX-650

EAN: 4711173874140

Záruka: 12 Rok(ů)

Výrobce: Seasonic

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

SEASONIC zdroj 650W Prime TX-650 (SSR-650TR), 80+ TITANIUM

Technical Specifications
80PLUS^®		Titanium
Cybenetics Efficiency Level		TBA
Cybenetics Noise Level		TBA
Form Factor		Intel ATX 12 V
Dimensions		170 mm (W) x 150 mm (L) x 86 mm (H)
Fan Information	Fan Size	135 mm
	Fan Control	Premium Hybrid Fan Control
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Fully Modular
Cable Information	Cable type	Flat black cables
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
	MTBF @ 25 °C, excl. fan	150,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		12 Years

Power Output
AC Input	Voltage: 100 V - 240 V
	Current: 9.5 - 4.5 A
	Frequency: 50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	54 A	0.3 A	3 A
	Maximum Power	100 W		648 W	3.6 W	15 W
	Total continuous power	650 W

SSR-650TR

Connector	Connector count	Cable count
Main Power (24/20 pins)	1	1
CPU (8/4 pins)	2	2
PCIe (8/6 pins)	4	0
PCIe (8/6 pins)	4	2
SATA	6	0
		0
		1
		0
		1
Peripheral	5	1
Peripheral	5	1
Floppy	1	1

ParametryPorovnání

Formát zdroje

ATX

Konektory

8pin CPU 1x

Konektory pro základní desku

ATX 20-pin

Vlastnosti zdroje

Modulární kabeláž

Efektivita zdroje

80 Plus Titanium

Modulární kabeláž

Ano

Výkon zdroje (W)

650
