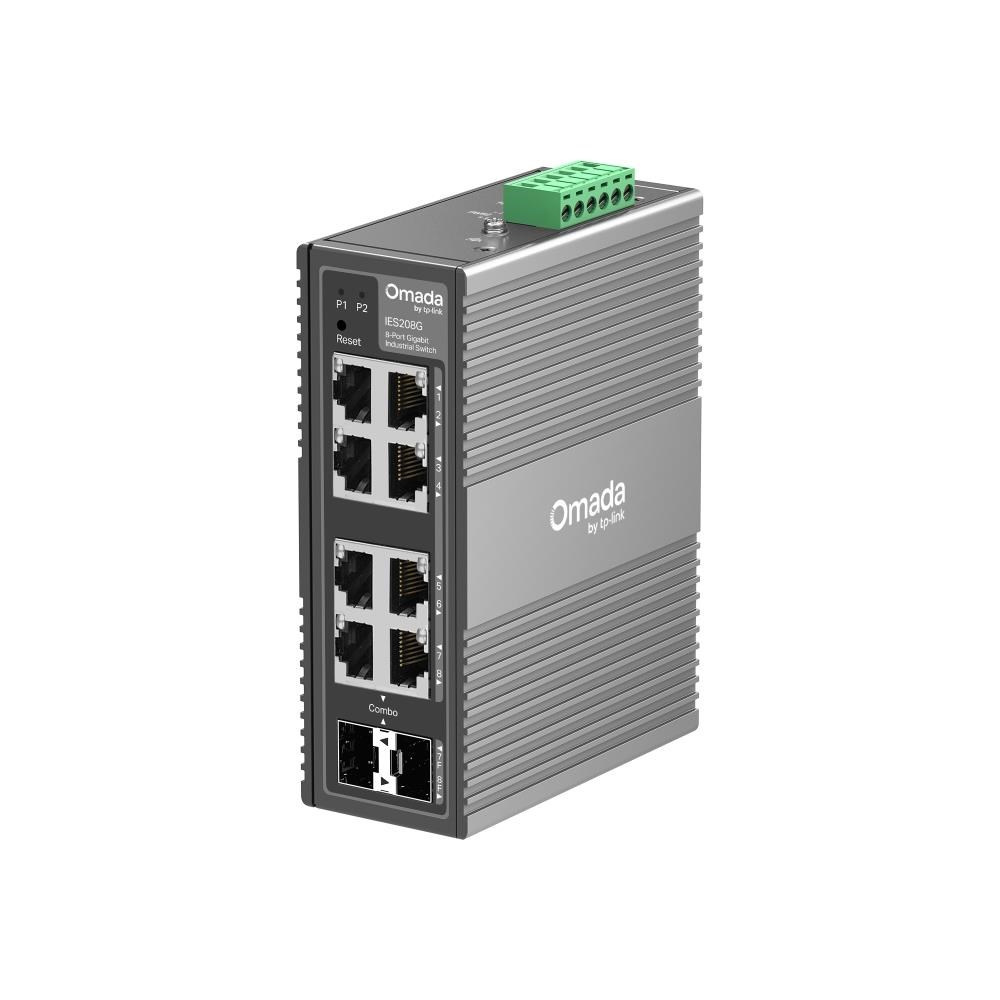

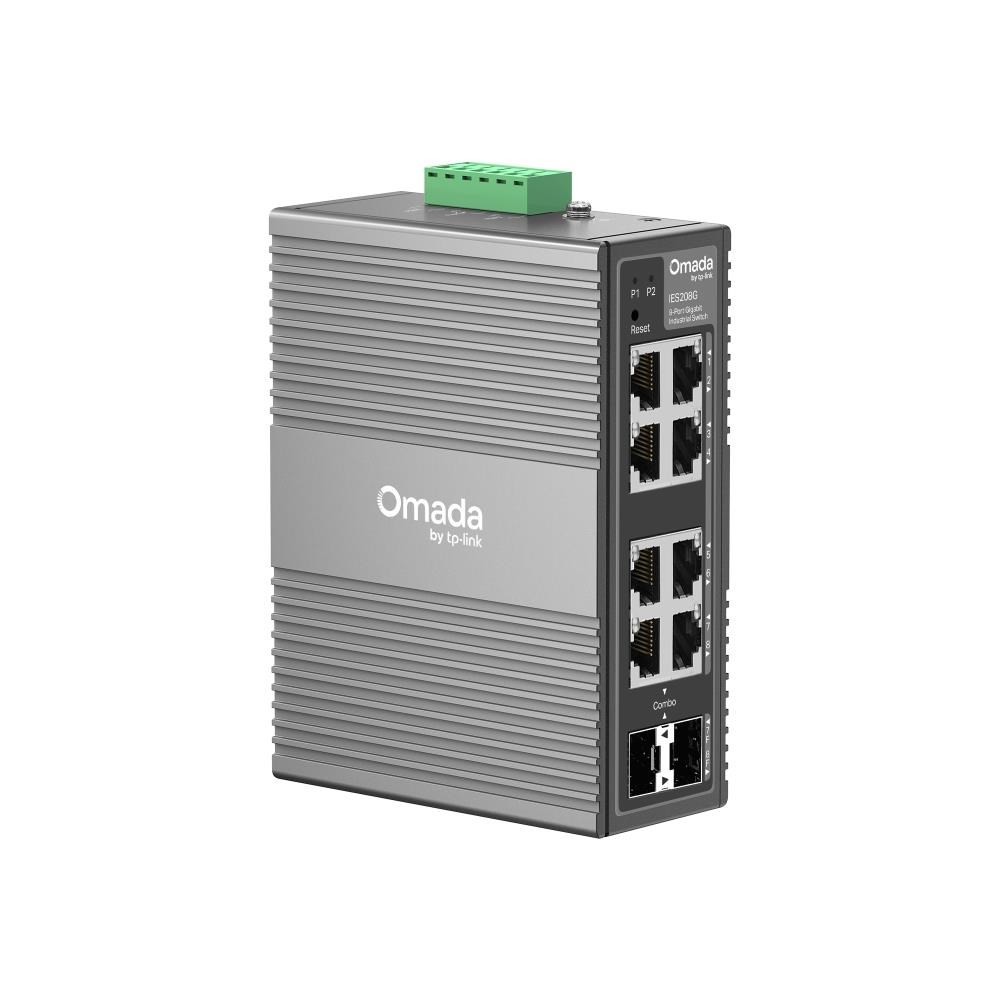

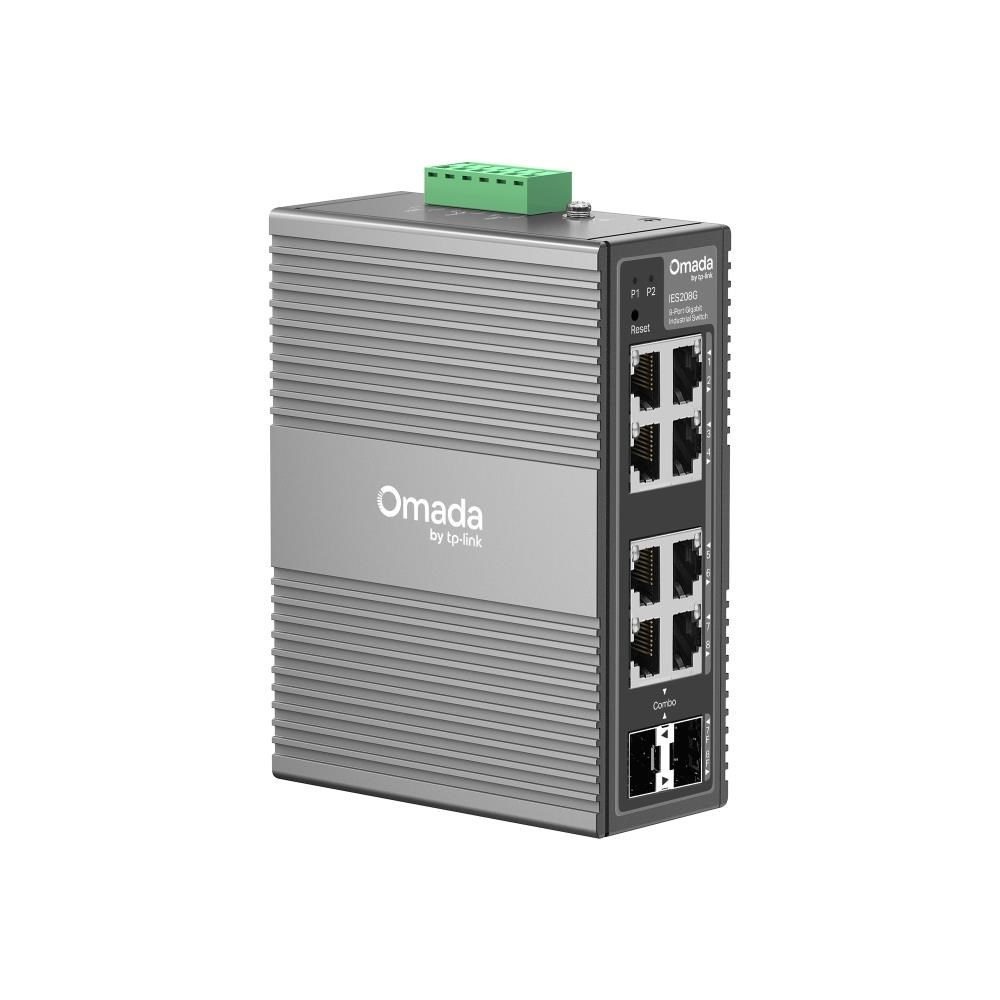

TP-Link OMADA průmyslový switch IES208G (6xGbE,2xGbE/SFPcombo,DIN,IP40,fanless)
Popis a parametry
TP-Link OMADA průmyslový switch IES208G (6xGbE,2xGbE/SFPcombo,DIN,IP40,fanless)
TP-Link OMADA průmyslový switch IES208G
Omada 8portový gigabitový průmyslový Easy Managed switch
- 8× gigabitových portů (6× RJ45, 2× RJ45/SFP Combo)
- Profesionální průmyslové provedení: -40°C~75°C provozní teplota, 6 kV přepěťová ochrana a 1+1 redundantní napájecí vstup
- Bohatá výbava: VLAN, QoS a STP/RSTP
- Centralizovaná cloudová správa přes web nebo aplikaci Omada†
- Odolný hliníkový kryt s krytím IP40 a konstrukce pro montáž na DIN lištu / na stěnu
Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-industrial/ies208g
Technické specifikace
| HARDWARE FEATURES | |

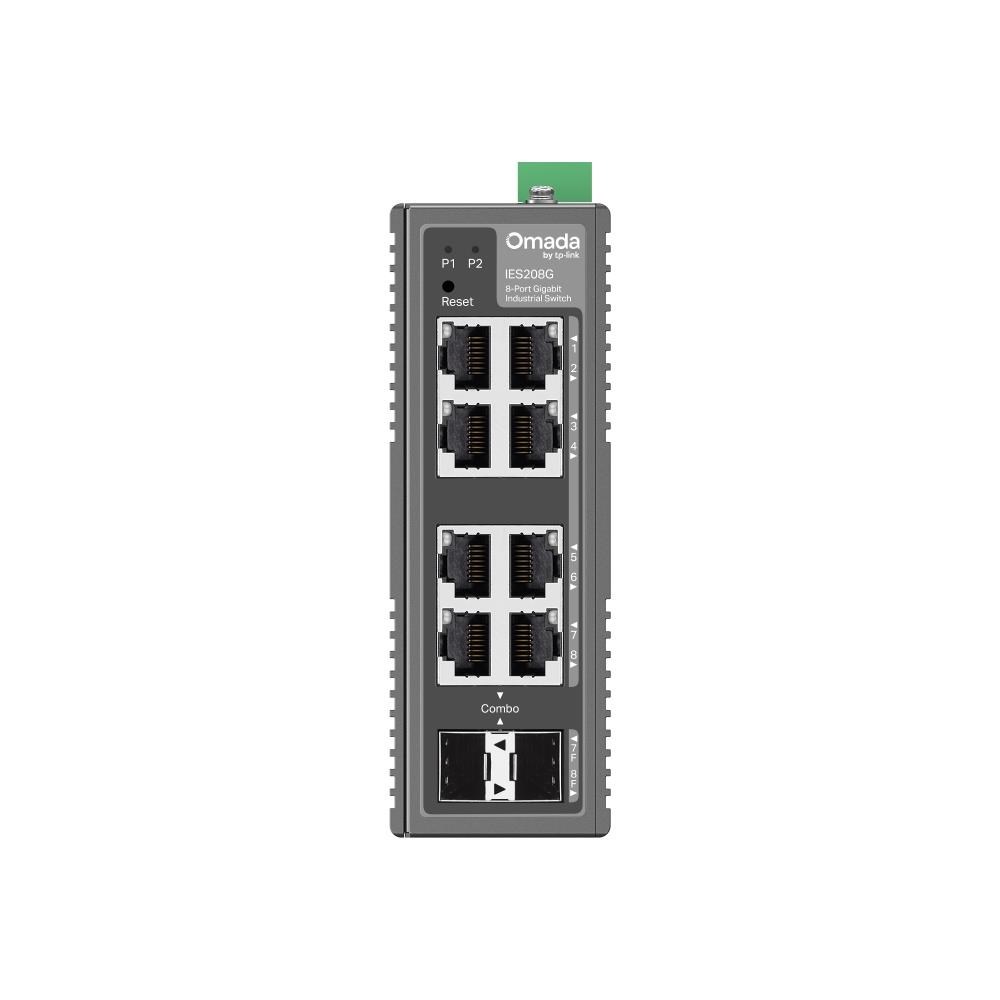

| Interface | • 6× 10/100/1000 Mbps RJ45 Ports • 2× Gigabit SFP/RJ45 Combo Slots • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |

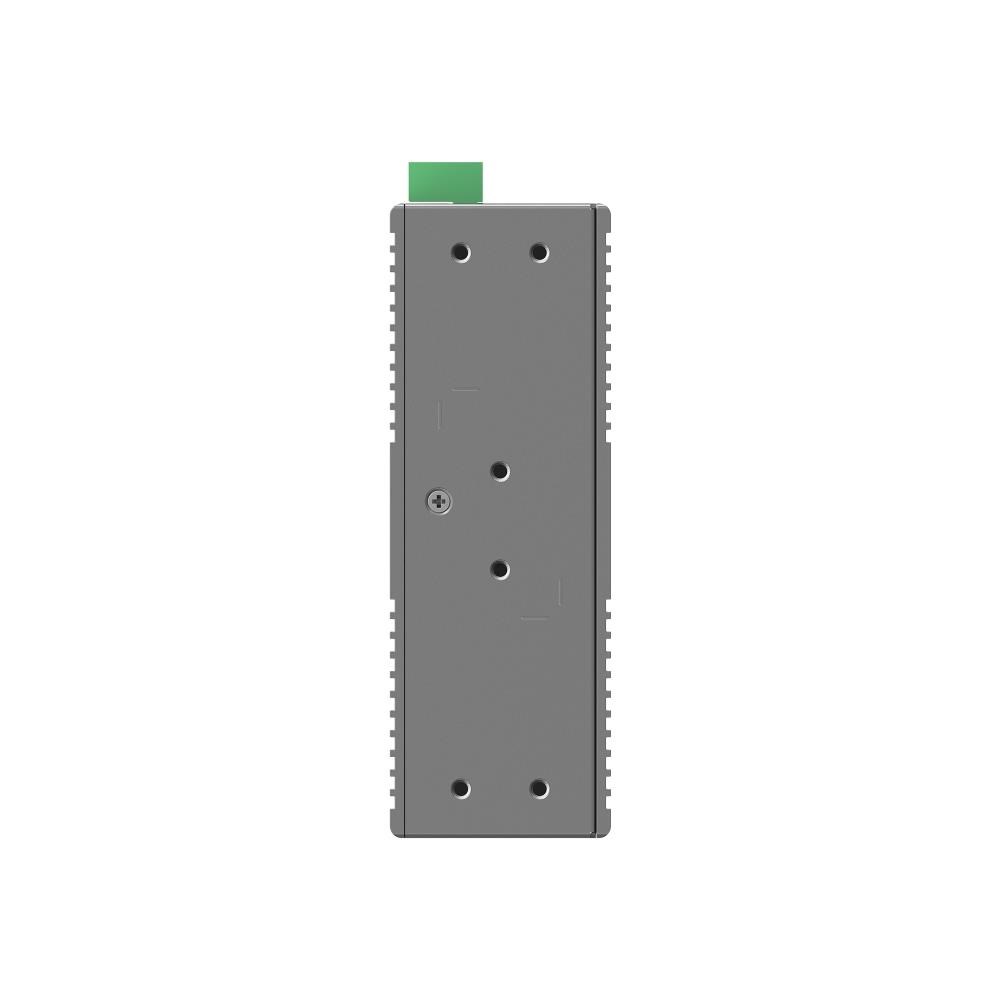

| Installation | • DIN-rail mounting • Wall mounting |

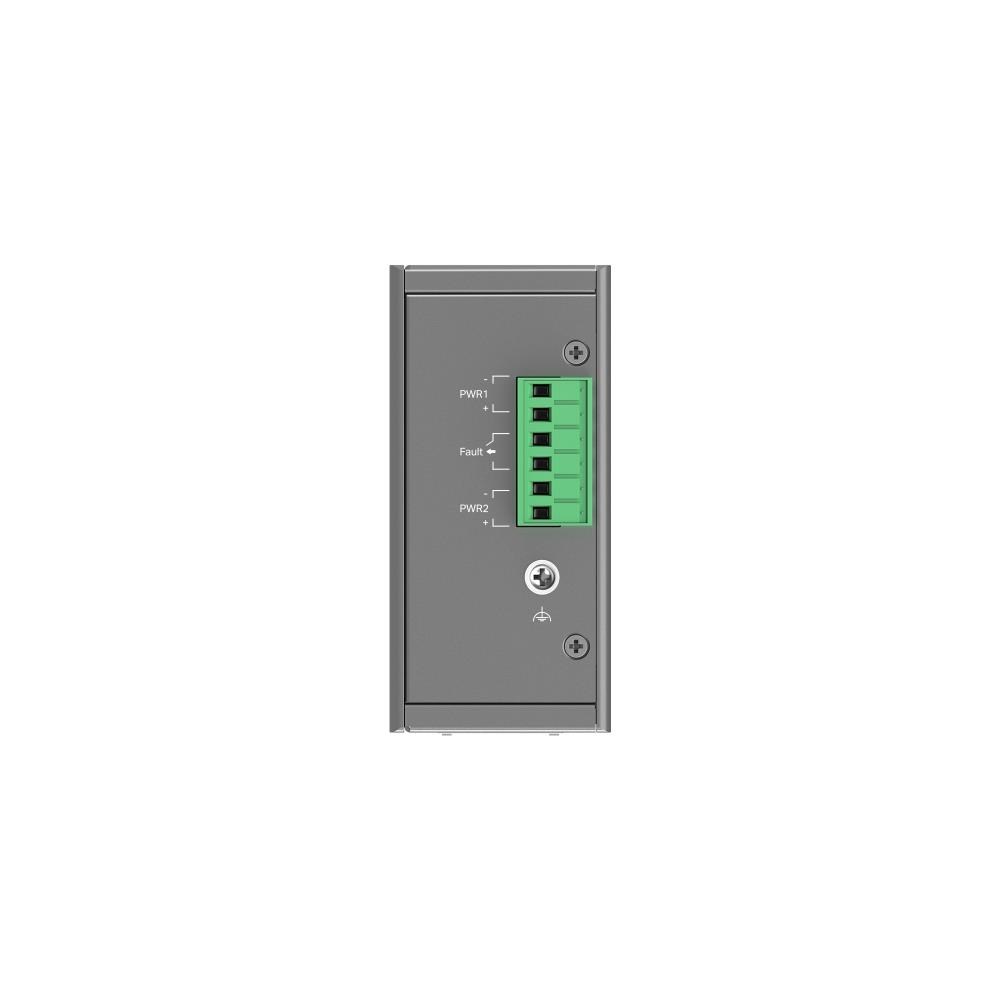

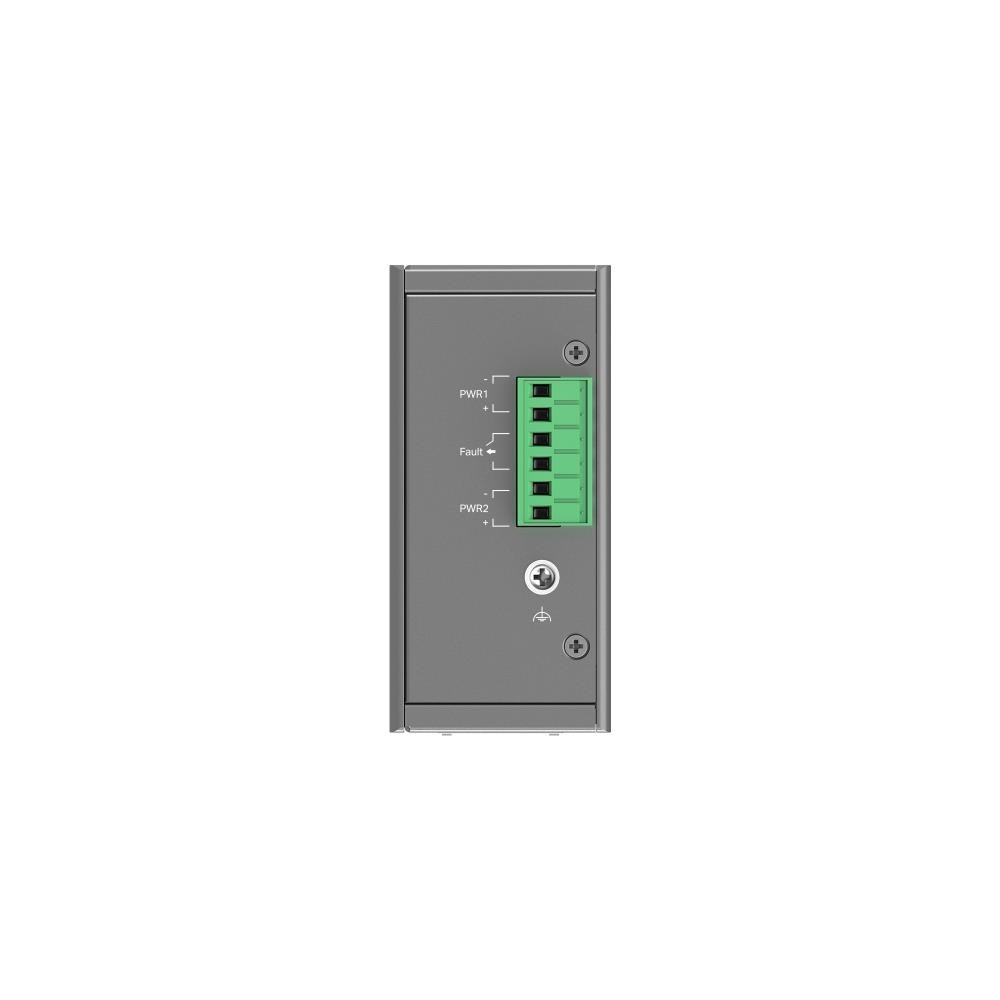

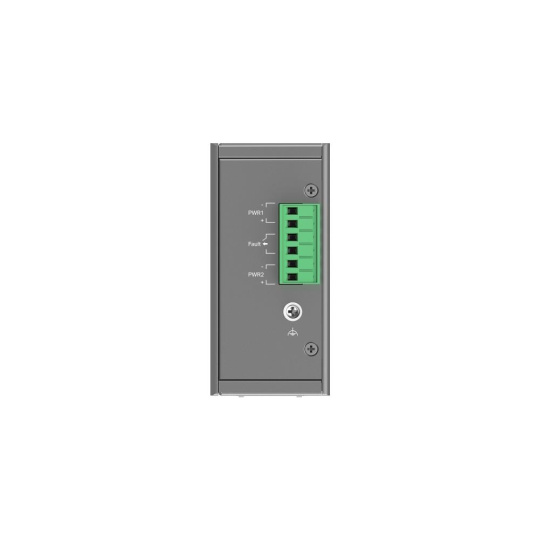

| Power Supply | 9.6-60V 1+1 Redundant DC Power Input |
| Dimensions ( W x D x H ) | 5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm) |
| Surge Protection | • ±6 kV in common mode for Ethernet ports • ±4 kV in common mode for DC power input ports |
| PERFORMANCE | |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rate Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | • Link Aggregation - Static Link Aggregation - Up to 2 aggregation groups and up to 4 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP • Spanning Tree - STP (802.1d) - RSTP (802.1w) |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| Transmission Method | Store-And-Forward |
| Management Features | |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Content | • IES208G • DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installation Guide |
| Environment | • Operating Temperature: -40?~75? (-40?~167?) • Storage Temperature: -40?~85? (-40?~185?) • Operating Humidity: 5%~95% non-condensing • Storage Humidity: 5%~95% non-condensing |
ParametryPorovnání
Provedení
DIN Rail
Technologie
Gigabit ethernet + Gigabit optika
Technologie
Gigabit Ethernet 1000Mbps
Management
Web
Funkce
QoS (Quality of service)
Funkce
VLAN (virtual local area network)
Funkce
DHCP snooping
Funkce
L2
Funkce
Web management/Smart switch
Ventilátor
Ne
Počet portů LAN
8
Přenosová rychlost LAN (Mb/s)
1000
Maximální počet portů
8
Počet portů Combo
2
Počet SFP portů
2
