ASUS MB Sc LGA1700 PROART B760-CREATOR WIFI, Intel B760, 4xDDR5, 1xDP, 1xHDMI, ATX

Formát základní desky:ATX; Chipset:Intel B760; Socket (patice):Socket 1700; Pro procesory:Intel; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; M.2 slot:3; SATA 3:4; PCI Express x16:2; PCI Express x1:1; LAN:2.5Gbit/s; Bezdrátové připojení:WiFi + Bluetooth; DisplayPort:1; HDMI:1; VGA:0; DVI:0; DisplayPort Type-C:0; USB 2:8; USB 3:6; USB C:2.... více
Běžná cena: 5 901  (-5%)
4 655.37 Kč bez DPH
Skladem > 5 ks
5 633 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 1887236
Kód dod.: 90MB1FY0-M1EAY0
EAN: 4711387275962
Záruka: 36 Měsíc(ů)
Výrobce: Asus
Popis a parametry

ASUS MB Sc LGA1700 PROART B760-CREATOR WIFI, Intel B760, 4xDDR5, 1xDP, 1xHDMI, ATX

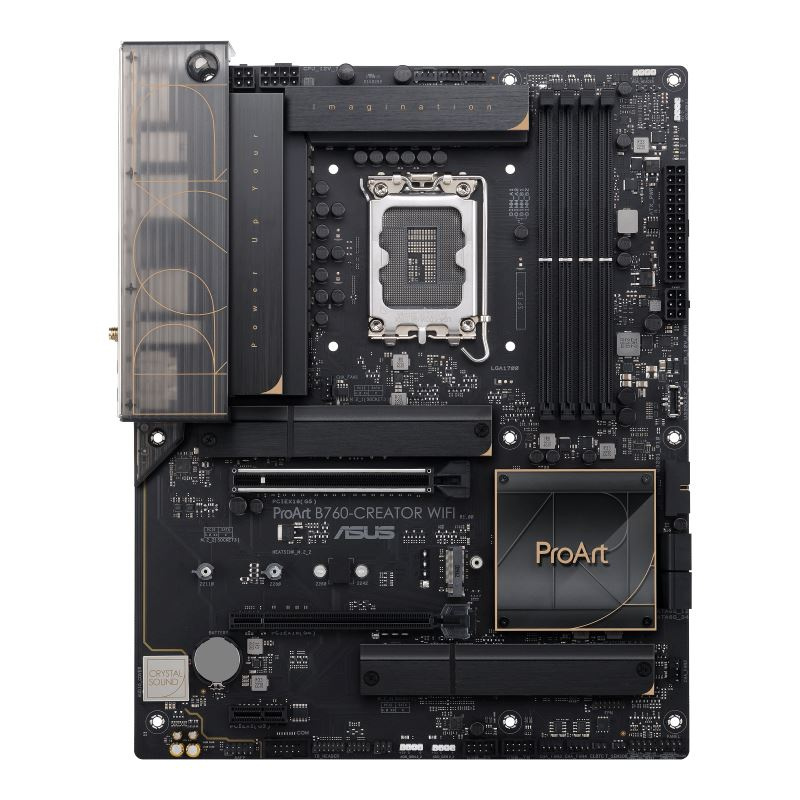

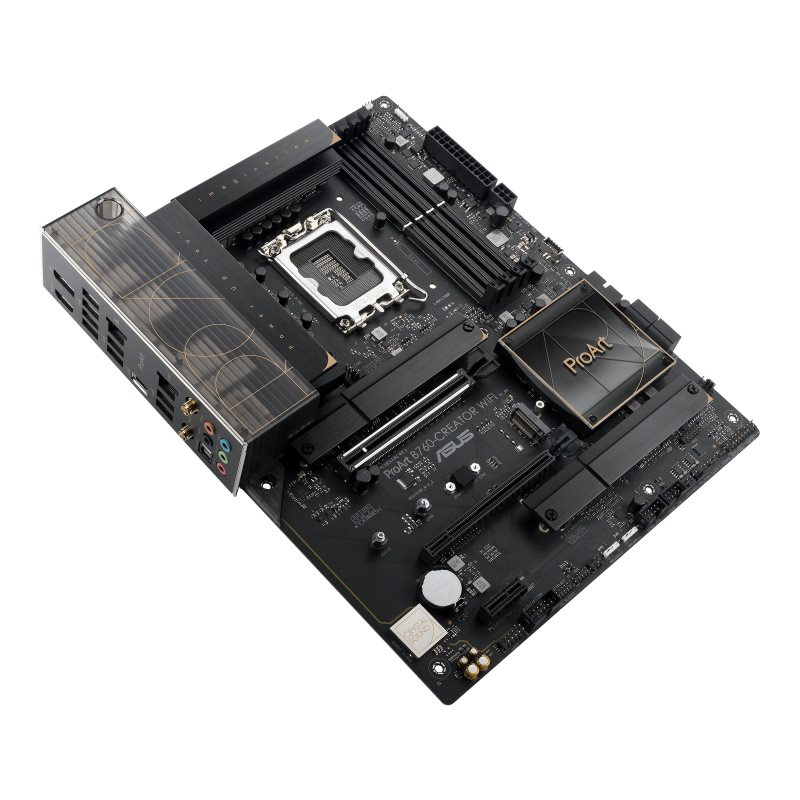

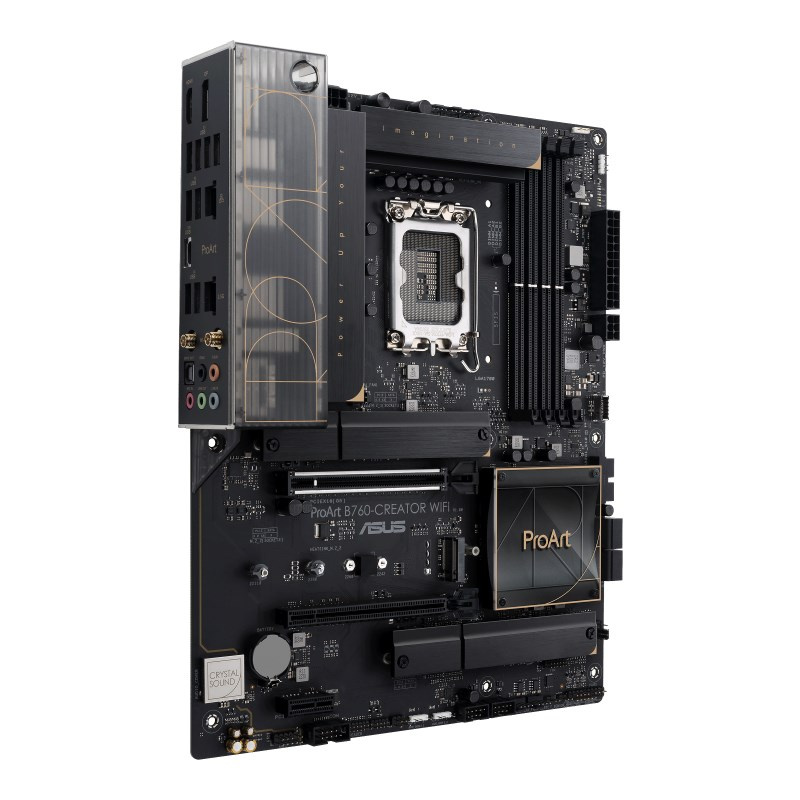

ASUS ProArt B760-CREATOR WIFI

ProArt B760-Creator WiFi is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of 14th & 13th & 12th Gen Intel® Core™ processors through robust power delivery and cooling design, and its comprehensive connectivity includes three M.2 slots, WiFi 6, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C® front-panel connector with 60W Quick Charge 4+ and a Thunderbolt™ 4 header.


Supports 14th Gen Intel® Core™ Processors


CPU

Intel® Socket LGA1700 for 14th Gen Intel® Core™ & 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 10 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.



Chipset

Intel® B760 Chipset



Memory

4 x DIMM slots, Max. 192GB, DDR5 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/



Graphics

1 x HDMI port**
1 x DisplayPort port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Support 4K@60Hz as specified in HDMI 2.1.
*** Support max. 8K@60Hz as specified in DisplayPort 1.4.



Expansion Slots

Intel® 14th & 13th & 12th Gen Processors
1 x PCIe 5.0/4.0/3.0 x16 slot
Intel® B760 Chipset*
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot**
** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled.



Storage

Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports*
Intel® 14th & 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode.
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)**
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
** M.2_2 slot shares bandwidth with PCIe X1 and WiFi module and will run at PCIe 3.0 x2 by default. You need to set M.2_2 running at PCIe 3.0 x4 by manually enabled in BIOS.



Ethernet

1 x Realtek 2.5Gb Ethernet
1 x Intel® 1Gb Ethernet
ASUS LANGuard



Wireless & Bluetooth

Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2*
*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications



USB

Rear USB (Total 9 ports)
1 x USB 3.2 Gen 2 (10G) Type-C® port
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 (20G) connector (supports USB Type-C® with 60W PD/QC4+)
1 x USB 3.2 Gen 1 (5G) header supports additional 2 x USB 3.2 Gen1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports



Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit

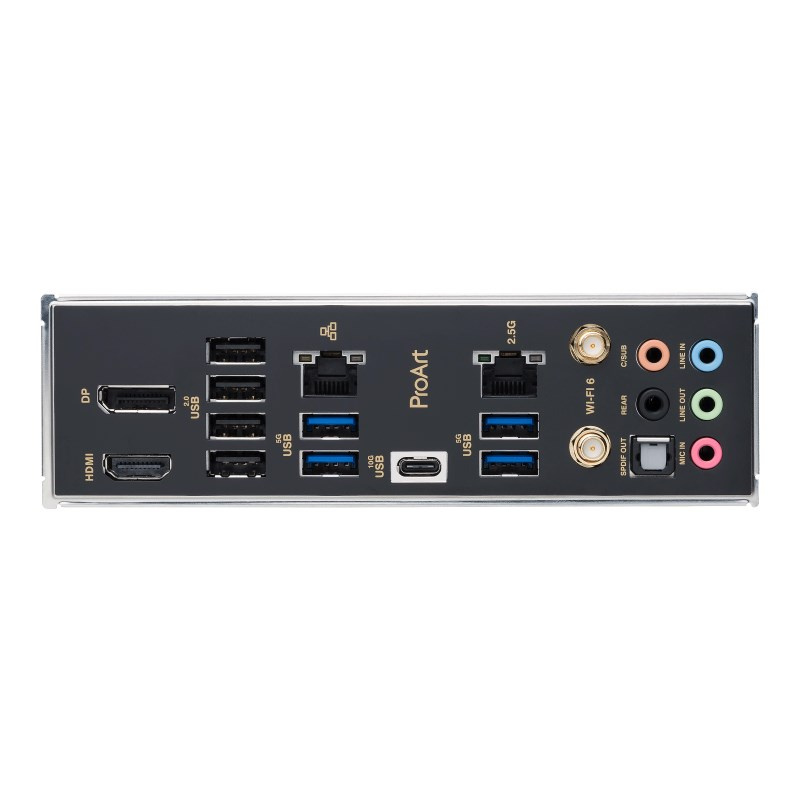

Back Panel I/O Ports

1 x USB 3.2 Gen 2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
1 x Intel® 1Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port



Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
1 x 6-pin PD_12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 (20G) connector (supports USB Type-C® with 60W PD/QC4+)
1 x USB 3.2 Gen 1 (5G) header supports additional 2 x USB 3.2 Gen1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-5 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ header



Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
- Pre-mounted I/O shield
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers



Software Features

ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Power Saving
- Two-Way AI Noise Cancelation
AI Suite 3
- Performance And Power Saving Utility
DIGI+ VRM
Turbo app
ASUS CPU-Z
IT Management software supported
- ASUS Control Center Express(ACCE)
ProArt Creator Hub
CreationFirst
MyASUS
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode



BIOS

128 Mb



Manageability

WOL by PME, PXE



Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
2 x M.2 Rubber packages
1 x ProArt ruler
1 x Q-connector
Documentation
1 x ACC Express Activation Key Card
1 x User guide



Operating System

Windows® 11 64-bit, Windows® 10 64-bit



Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )


.
ParametryPorovnání
Technologie paměti RAM
DDR5
Socket (patice)
Socket 1700
Formát základní desky
ATX
Chipset
Intel B760
PCI Express x16
2
COM port
Ano
3.5mm Jack
Ano
Bezdrátové připojení
WiFi + Bluetooth
Pro procesory
Intel
Počet paměťových slotů
4
DisplayPort
1
TPM
Ano
USB 2
8
USB 3
6
M.2 slot
3
SATA 3
4
VGA
0
DVI
0
HDMI
1
PCI Express x1
1
USB C
2
LAN
2.5Gbit/s
DisplayPort Type-C
0
