BAZAR - Fortron zdroj FSP500-50AAC 80PLUS BRONZE, 500W, černá - Po opravě
Popis a parametry

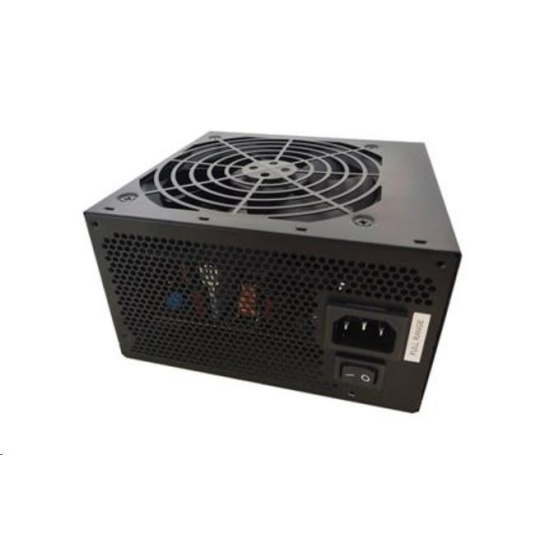

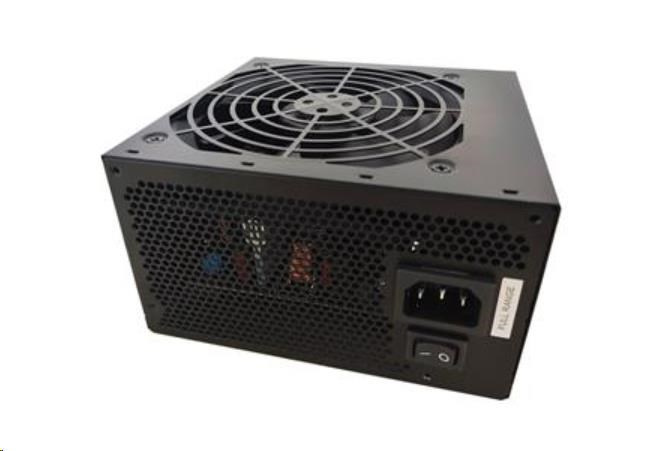

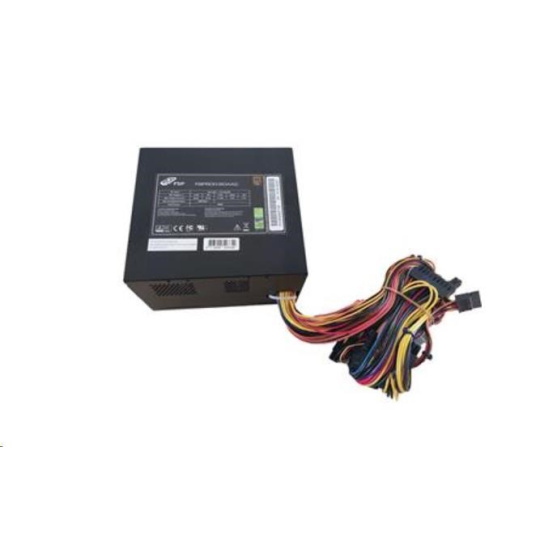

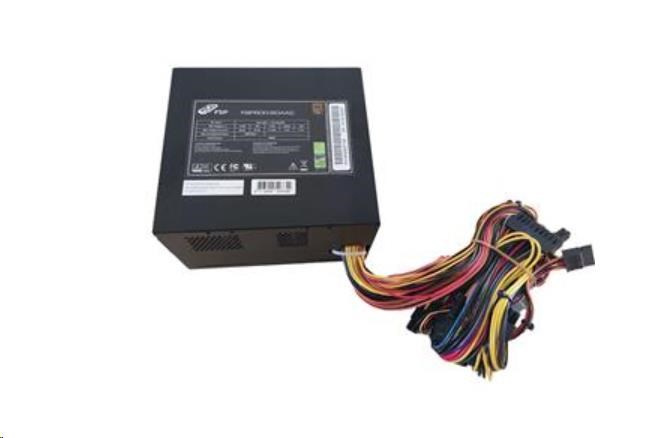

BAZAR - Fortron zdroj FSP500-50AAC 80PLUS BRONZE, 500W, černá - Po opravě
FSP/Fortron FSP500-50AAC 80PLUS BRONZE, bulk, 500W, black
FSP AAC sources have an ecological design, which allows the AAC series to achieve up to 85% efficiency. The AAC series is also equipped with complete protection that prevents damage to your system. The AAC series performs efficiently and reliably, making the stable power supply built to meet the requirements of all types of computer systems.
- High efficiency (85% at 50% load)
- Quality capacitors with long life
- Quiet 120 mm ball bearing fan
- Active PFC filter
- Low noise function
- Hold-up time: min. 17 ms
- Power switch
- Meets the requirements of the ErP 2013 directive (consumption in stand-by mode <0.5W)
- MTBF 100,000 hours at 25 ° C
TECHNICAL SPECIFICATIONS
| Model | FSP500-50AAC |
| Format | ATX |
| Power supply | 500W |
| PFC | Active PFC |
| Power supply fan | 120mm |
| Dimensions (W x L x H) | 140 x 150 x 86 (mm) |
| Efficiency | >85% |
| Input voltage | 100-240 V |
| Connectors | 1x 24 pin to MB 5x SATA 2x Molex (PATA) 1x FDD 1x 4 + 4 pin (12V) connector for CPU power supply 1x 6 + 2 pin PCI-E |
.
ParametryPorovnání
Formát zdroje
ATX
Konektory
8pin CPU 1x
Konektory
PCIe 6-pin
Konektory
PCIe 8-pin
Konektory
SATA 15-pin
Konektory
Molex
Konektory
FDD
Konektory pro základní desku
ATX 24-pin
Konektory pro základní desku
ATX 20-pin
Konektory pro základní desku
EPS 8-pin
Efektivita zdroje
80 Plus Bronze
Modulární kabeláž
Ne
Podsvícení
Bez podsvícení
Výkon zdroje (W)
500
BAZAR - Fortron zdroj FSP500-50AAC 80PLUS BRONZE, 500W, černá - Po opravě
