USB-C 3.2 Gen1 7in1 Hub HDMI 4K60Hz SD TF Card slot 2x USB Type A USB Type C PD RJ45

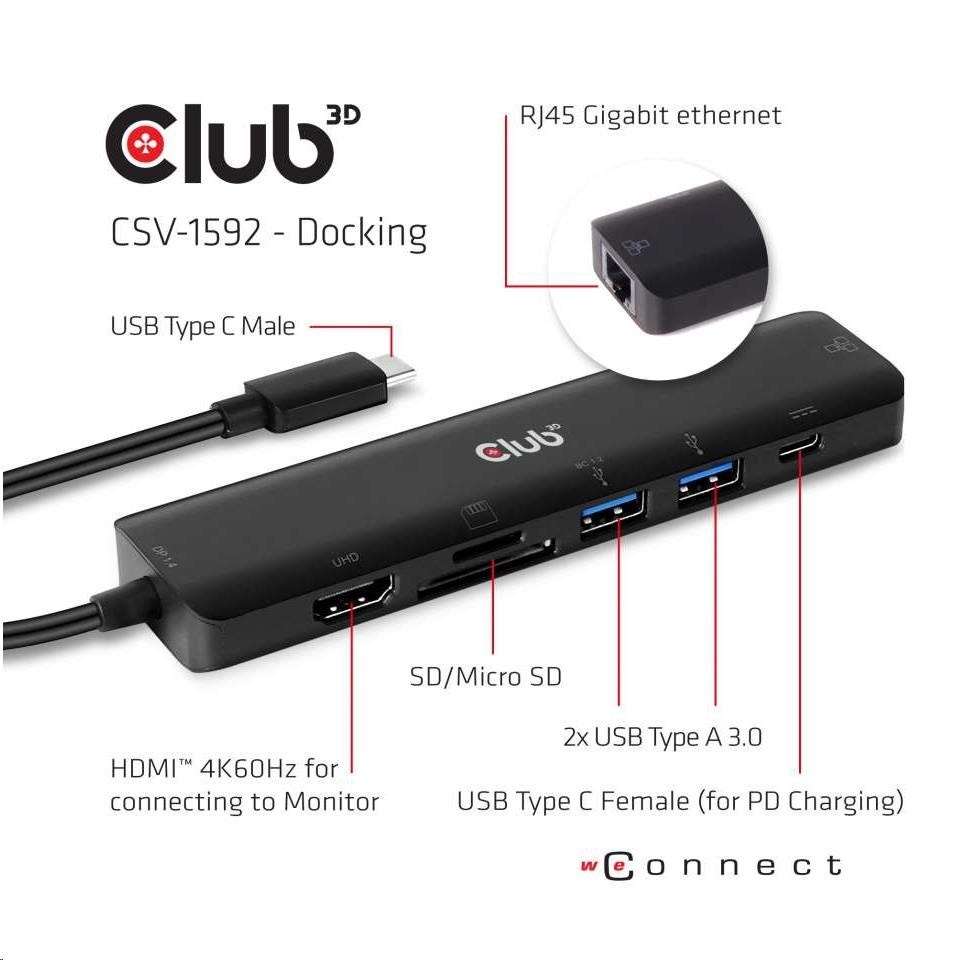

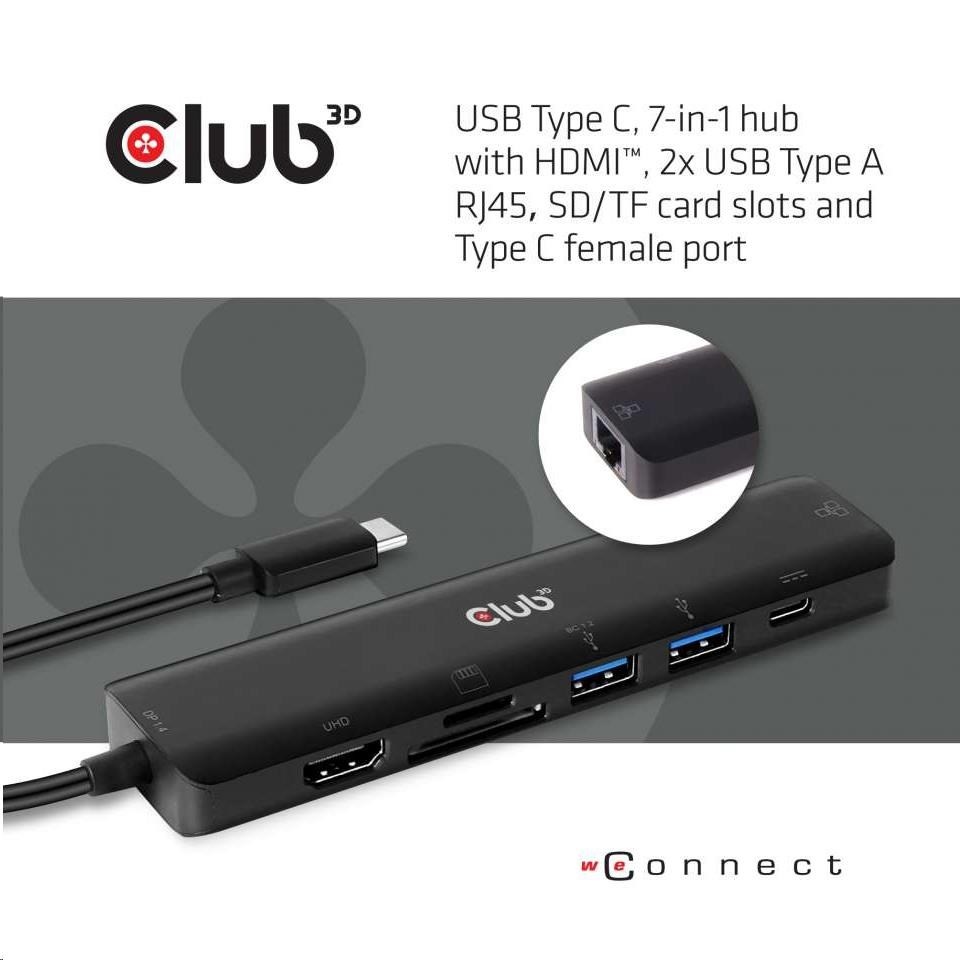

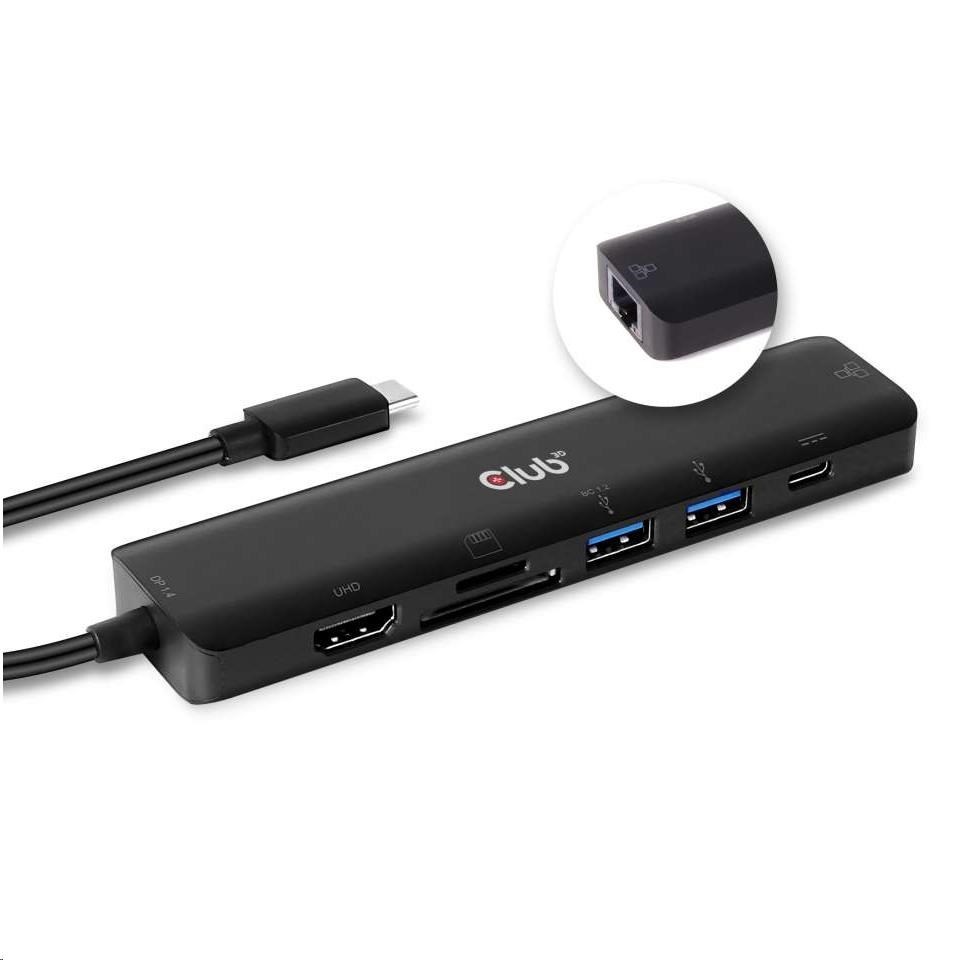

CSV-1592 - The Club 3D Hub is a USB Type C 7-in-1 Hub to HDMI™ 4K60Hz /SD-TF Card slot / 2x USB Type A / USB Type C PD / RJ45, providing an ideal solution for extending the port of USB Type C or Thunderbolt™ 3 host (PC/Laptop/tablet/Mobile phone, etc.),especially for the host with a single USB Type C port. This hub adopts the latest DP 1.4 Alt mode technology available today, enabling to output HDMI™ video with max 4k/60Hz and at the meanwhile transfer USB 3.1 data with max 5Gbps. 2x USB Type A ports allow you to connect 2 USB devices simultaneously.
SD/Micro SD allow to insert 2 card slots simultaneously for data transmission or for reading/writing information on the host. RJ45 ports allows the host to get access to Gigabit Ethernet. Besides, the USB Type C female supports PD 3.0 with max 100W PD Charging. It can work on all USB Type C and Thunderbolt™3 host that supports DP Alt mode(including DP1.2 and DP1.4 Alt mode).When working on Thunderbolt™3 host, this product transmits DP signal.
Features
- Upstream:
USB-C Male (Connection to host)
Support DP 1.4 Alt mode, with bandwidth max 2 lanes 16.2Gbps (8.1Gbps per lane),downward compatible with DP1.2 Alt mode
Note: To get max bandwidth, the host should support DP 1.4 Alt mode with DSC format. - Downstream:
Support HDMI™ max 4K/60Hz 4:4:4, 8bit with 18Gbps Bandwidth
Support 6/8/10/12 bit color depth output
Support output pixel format RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2
Support HDCP 2.2&HDCP1.4
Support HDR
Note: When connecting a DP 1.4 Alt mode supported host, the max resolution of HDMI is 4k/60Hz; When connecting a DP 1.2 Alt mode supported host, the max resolution of HDMI™ is 4k/30Hz due to bandwidth limitation - 2x USB Type A 3.0
1- USB Type A port supports BC 1.2 with max. 7.5W(5V@1.5A) downstream charging,
2- USB Type A share max. 8W (5V/1.6A) downstream charging.
Max. 5Gbps bandwidth per USB Type A port - SD/Micro SD
Support Secure Digital v3.0 UHS-I (Ultra High Speed)SDR12 (12.5Mbyte/s)/SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/DDR50(50Mbyte/s)/SDR104(104Mbyte/s) - RJ45 (Gigabit Ethernet) Support 10Mbps/100Mbps/1000Mbps
- USB-C Female (for PD Charging)
Support PD Charging 100W (20V/5A)
Support Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging in and out PD Adapter
8W is dedicated to the functioning of this product, the rest power (max 92W) will be passed to charge for the host
TECHNICAL SPECIFICATIONS
| Product Series | Docking Station |
| EAN | 8719214471477 |
| OS Support | All |
| AVAILABLE INTERFACES | |
| Upstream | 1x USB type C male (Host connection) |
| Downstream | 1x HDMI™ Female for connecting to Monitor 1x SD Card Slot 1x Micro SD Card Slot 2x USB type A, BC1.2 charging 1x USB type C female PD (Charging + Data) 1x RJ45 |

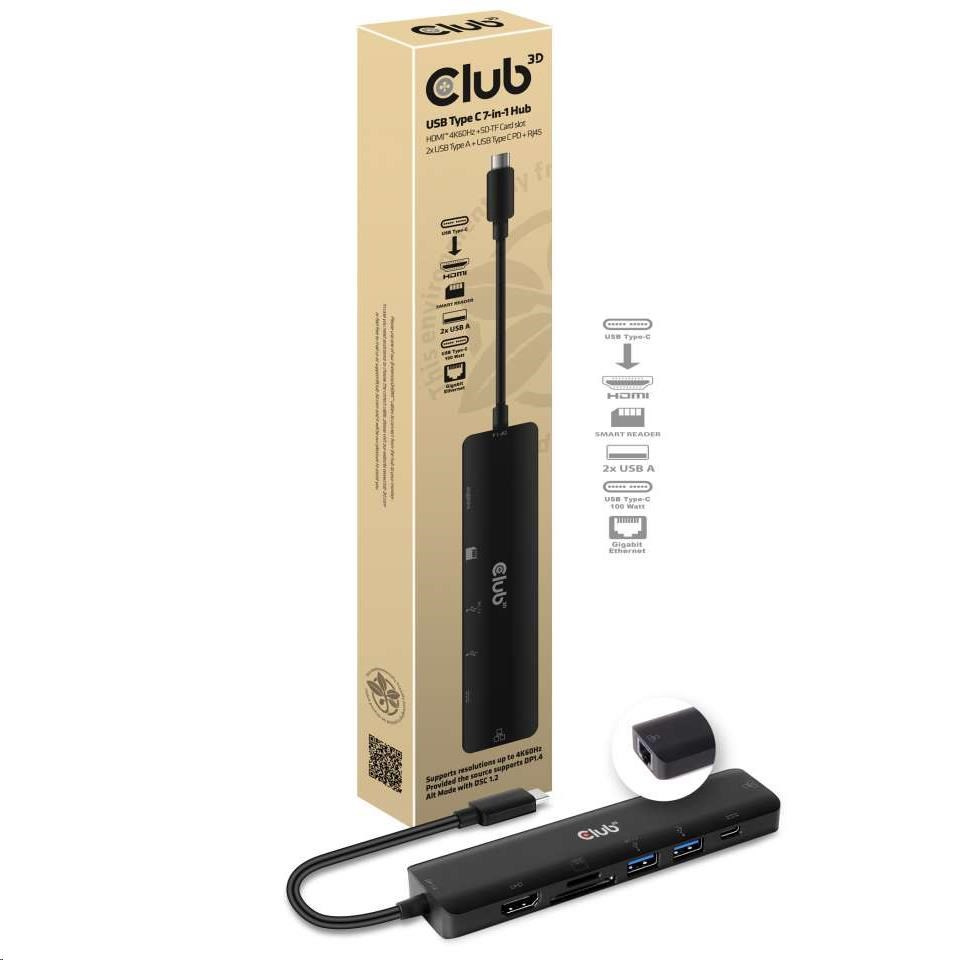

| Box contents | Hub User Manual |

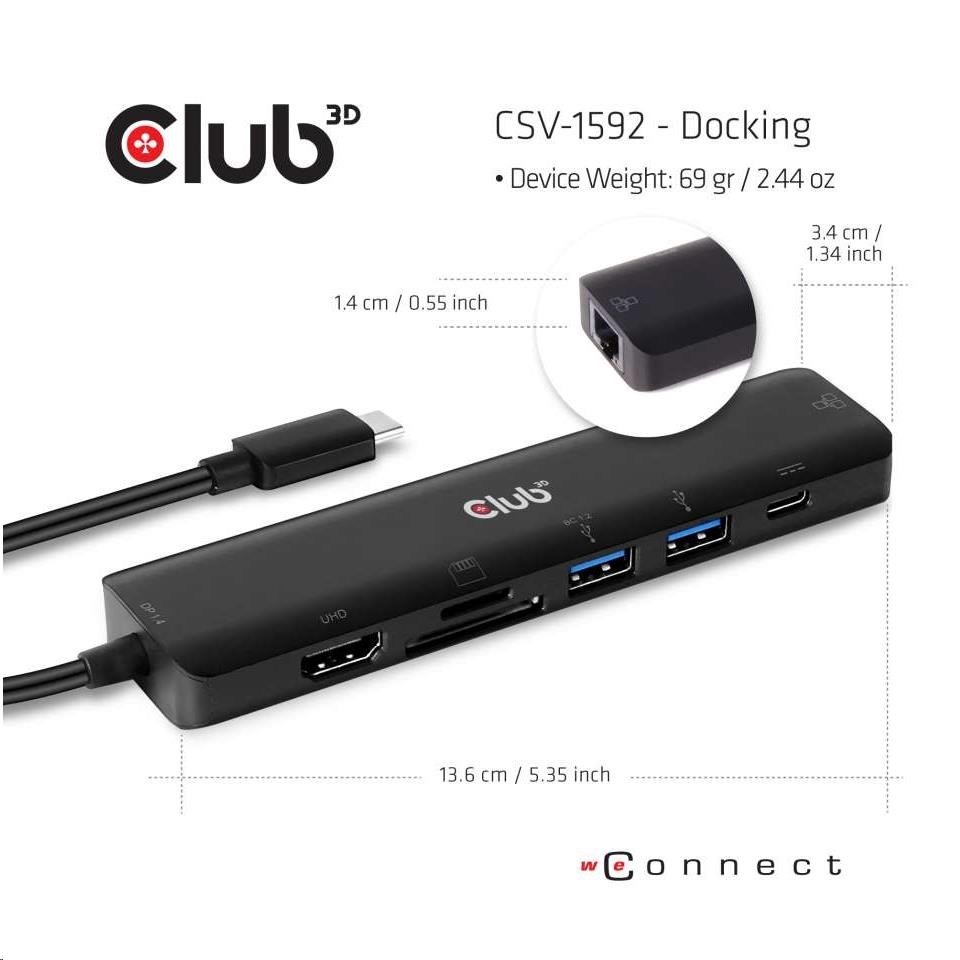

| Device size | 13.6 x 3.4 x 1.4 cm |
| Device weight | 69 g |
| Certifications | Meets ROHS, FCC, and CE EMI requirements |
