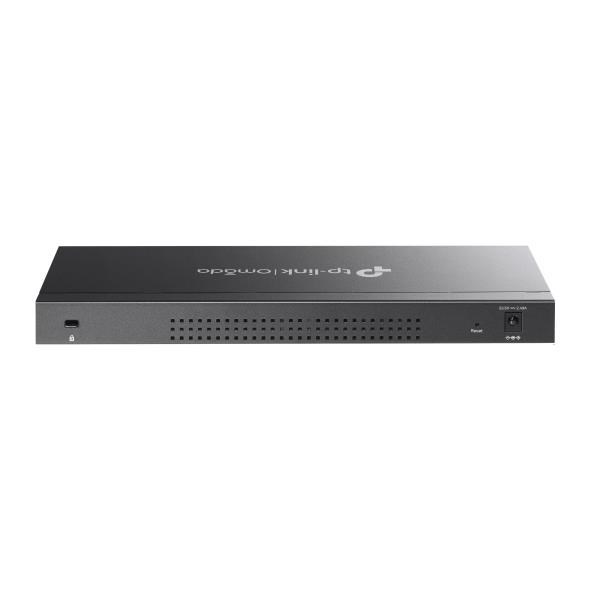

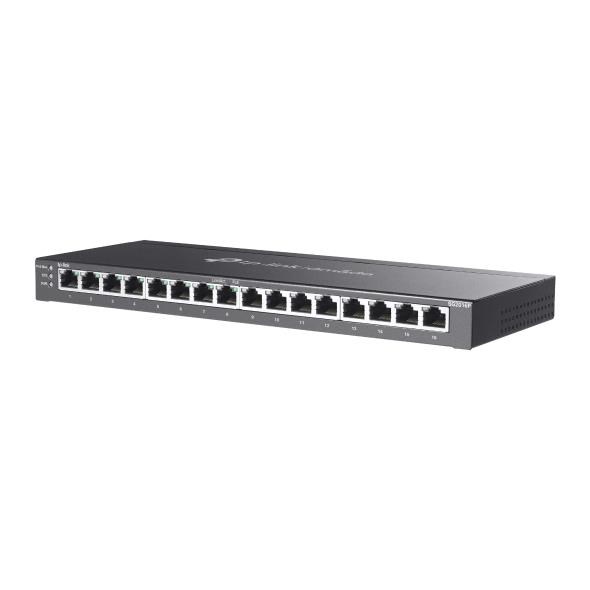

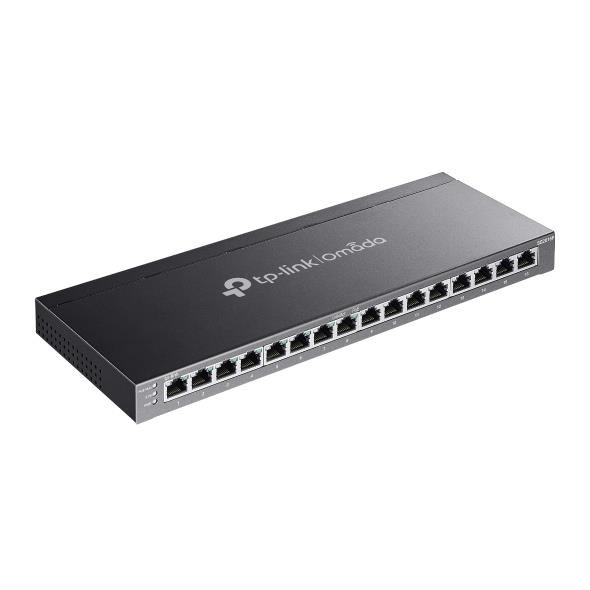

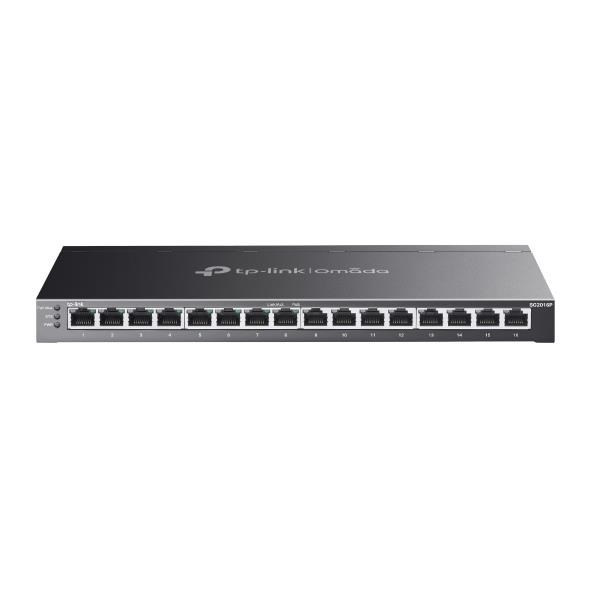

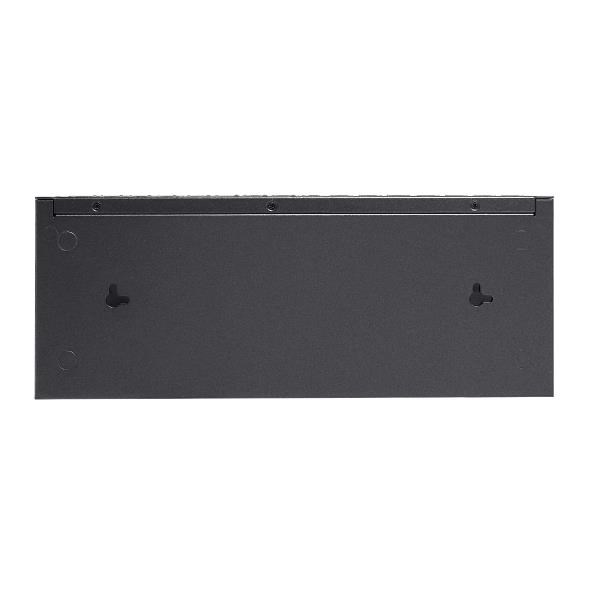

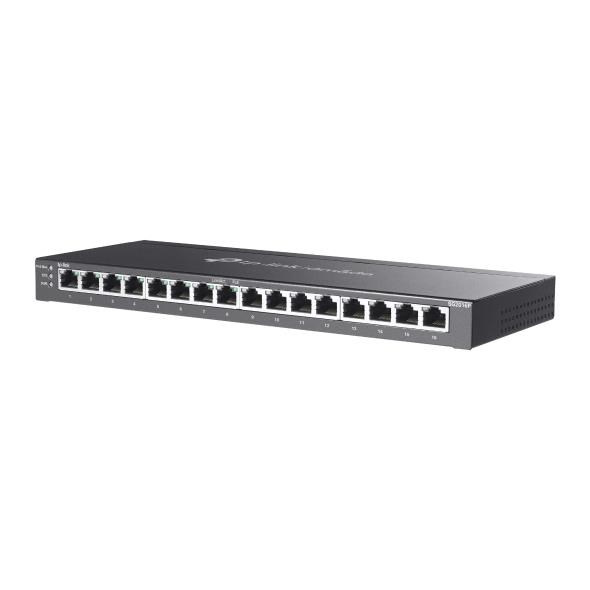

TP-Link OMADA switch SG2016P (16xGbE, 8xPoE+, 120W, fanless)
Popis a parametry
TP-Link OMADA switch SG2016P (16xGbE, 8xPoE+, 120W, fanless)
TP-Link OMADA switch SG2016P
16portový gigabitový OMADA smart switch s 8 porty PoE+
- 120 W PoE Budget: 8 × 802.3at/af kompatibilních PoE+ portů s celkovým napájením 120 W.
- Plně gigabitové porty: 8 × gigabitové porty PoE+ a 8× gigabitové porty bez PoE poskytují vysokorychlostní připojení.
- Integrováno do Omada SDN: Zero-Touch Provisioning, centralizovaná správa cloudu a inteligentní monitorování.
- Centralizovaná správa: Přístup ke cloudu a aplikace Omada pro maximální pohodlí a snadnou správu.
- Robustní bezpečnostní strategie: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication a další.
- Optimalizujte hlasové a video aplikace: L2/L3/L4 QoS a IGMP snooping.
Learn more about TP-Link PoE technology >
Learn more about Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/uk/business-networking/omada-sdn-switch/tl-sg2016p/
Technické specifikace
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
| Interface | • 16× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 Support 802.3at/af PoE+) • Auto-Negotiation/Auto MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | • External Power Adapter (Output: 53.5 VDC/ 1.31 A) |
| PoE Ports (RJ45) | • Standard: 802.3af/at compliant • PoE Ports: 8 Ports • Power Supply: 120 W* |
| Dimensions ( W x D x H ) | 11.3 x 4.4 x 1.0 in (286 x 111.7 x 25.4 mm) |
| Max Power Consumption | 146.5 W (110 V/60 Hz) (with 120 W PD connected) |
| Max Heat Dissipation | 499.98 BTU/hr (110 V/60 Hz) (with 120 W PD connected) |
| PERFORMANCE | |
| Bandwidth/Backplane | 16 Gbps |
| MAC Address Table | 8k |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow-based Rating Limit • Smoother Performance • Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control |
| L2 and L2+ Features | • DHCP Relay - DHCP VLAN Relay • DHCP L2 Relay • Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter/Protect, Root Protect • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED |
| L2 Multicast | • 511 IPv4, IPv6 shared multicast groups • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - Static Group Config • Multicast VLAN Registration (MVR) • Multicast Filtering • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config • Limited IP Multicast (256 profiles and 16 entries per profile) |
| IPv6 Support | • IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
| VLAN | • VLAN Group - Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN: 12 Entries • Protocol VLAN • GVRP • Voice VLAN |
| Access Control List | • Support up to 230 entries • Time-Range - Time Slice - Week Time-Range - Absolute Time-Range - Holiday • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - IP Protocol - TCP Flag - TCP/UDP Source Port - TCP/UDP Destination Port - DSCP/IP TOS • IPv6 ACL • Combined ACL • Rule Operation - Permit/Deny • Policy Action - Mirror - Rate Limit - Redirect - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding • Actions for flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark |
| Security | • AAA • 802.1X - Port-based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control |
| Advanced Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule |
| MIBs | • MIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs • RMON MIB(RFC1757, rmon 1,2,3,9) |
| MANAGEMENT | |
| Omada App | Yes, through • Omada Cloud-Based Controller • OC300 • OC200 • Omada Software Controller |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes, through • Omada Cloud-Based Controller • OC300 • OC200 • Omada Software Controller |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • TL-SG2016P • Power Adapter • Installation Guide • Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: 0–40 °C (32–104 °F); • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
.
ParametryPorovnání
Maximální počet portů
16
Provedení
Desktop
Technologie
Gigabit Ethernet 1000Mbps
Management
Web
Management
SNMP/RMON
Vlastnosti switche
Funkce POE po portech
PoE budget (W)
120
Přenosová rychlost LAN (Mb/s)
1000
Funkce
Web management/Smart switch
Funkce
QoS (Quality of service)
Funkce
L2
Funkce
VLAN (virtual local area network)
Funkce
DHCP snooping
Funkce
PoE (Power over ethernet)
Podporované standardy PoE
802.3af
Podporované standardy PoE
802.3at
Počet portů LAN
16
Ventilátor
Ne
Počet PoE+ portů
8
Počet portů LAN
16
Maximální počet portů
16
PoE budget (W)
120
Počet PoE+ portů
8
