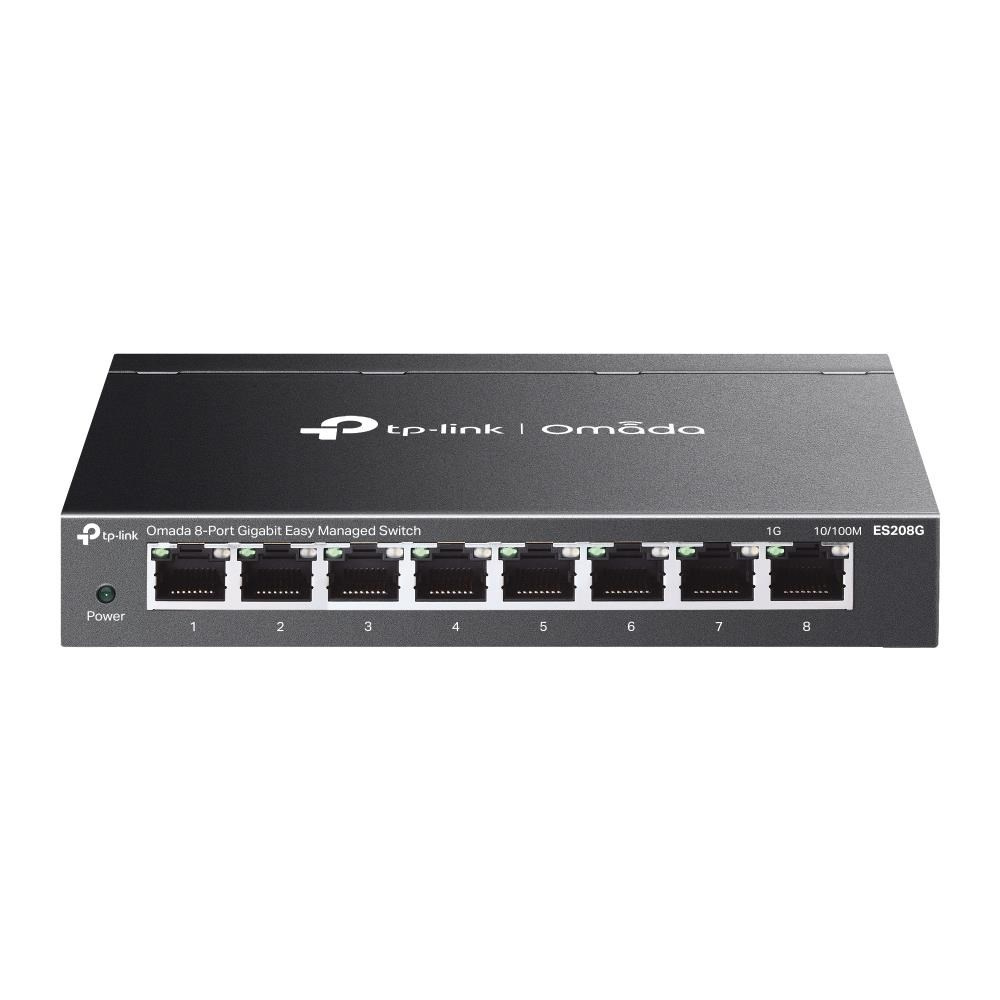

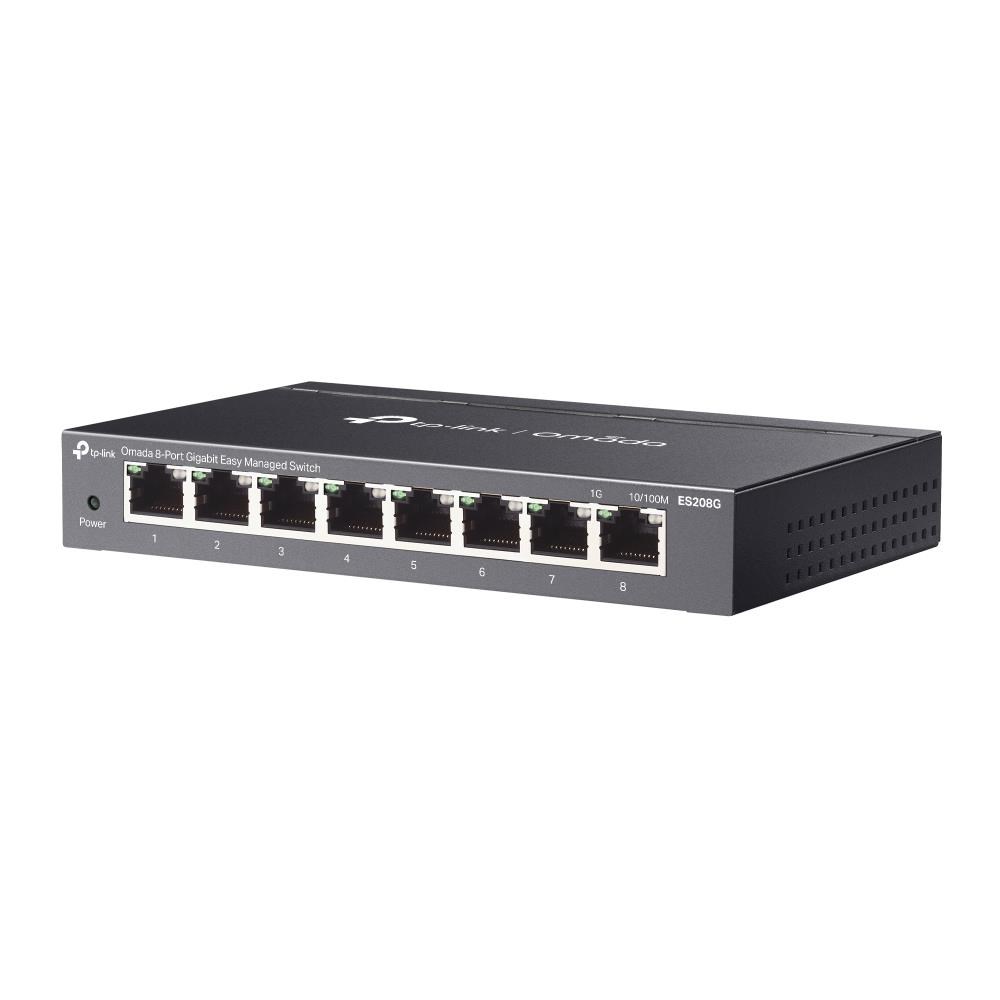

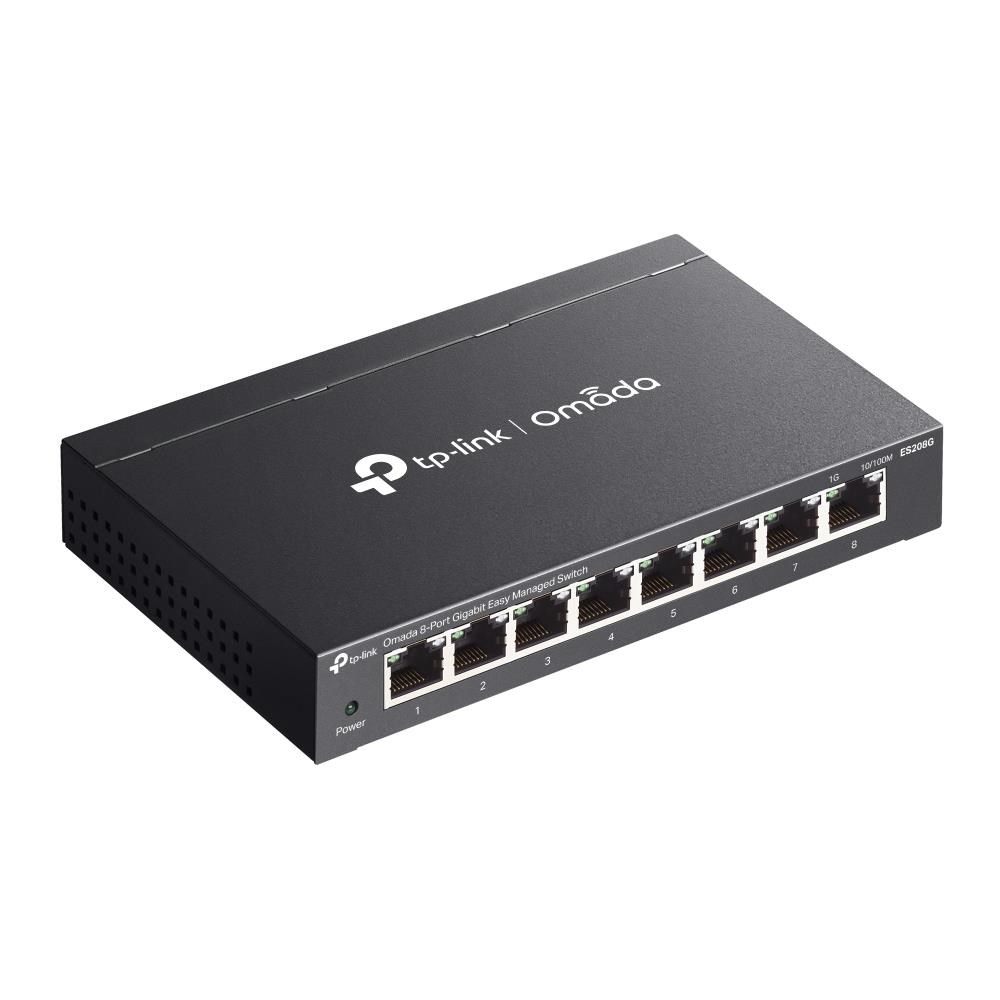

TP-Link OMADA switch ES208G (8xGbE,fanless)

Name: TP-Link OMADA switch ES208G (8xGbE,fanless)
Brand: TP-link
SKU: 324345
Price: 1031 CZK
Availability: InStock

-0%

Kód: 324345

Kód dod.: ES208G

EAN: 1210002600668

Záruka: 60 Měsíc(ů)

Výrobce: TP-link

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

TP-Link OMADA switch ES208G (8xGbE,fanless)

ParametryPorovnání

Provedení

Desktop

Technologie

Gigabit Ethernet 1000Mbps

Management

Web

Funkce

VLAN (virtual local area network)

Funkce

QoS (Quality of service)

Funkce

DHCP snooping

Funkce

Web management/Smart switch

Ventilátor

Počet portů LAN

Maximální počet portů

TP-Link OMADA switch ES208G (8xGbE,fanless)

HARDWARE FEATURES
Interface	• 8× 10/100/1000 Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX
Fan Quantity	Fanless

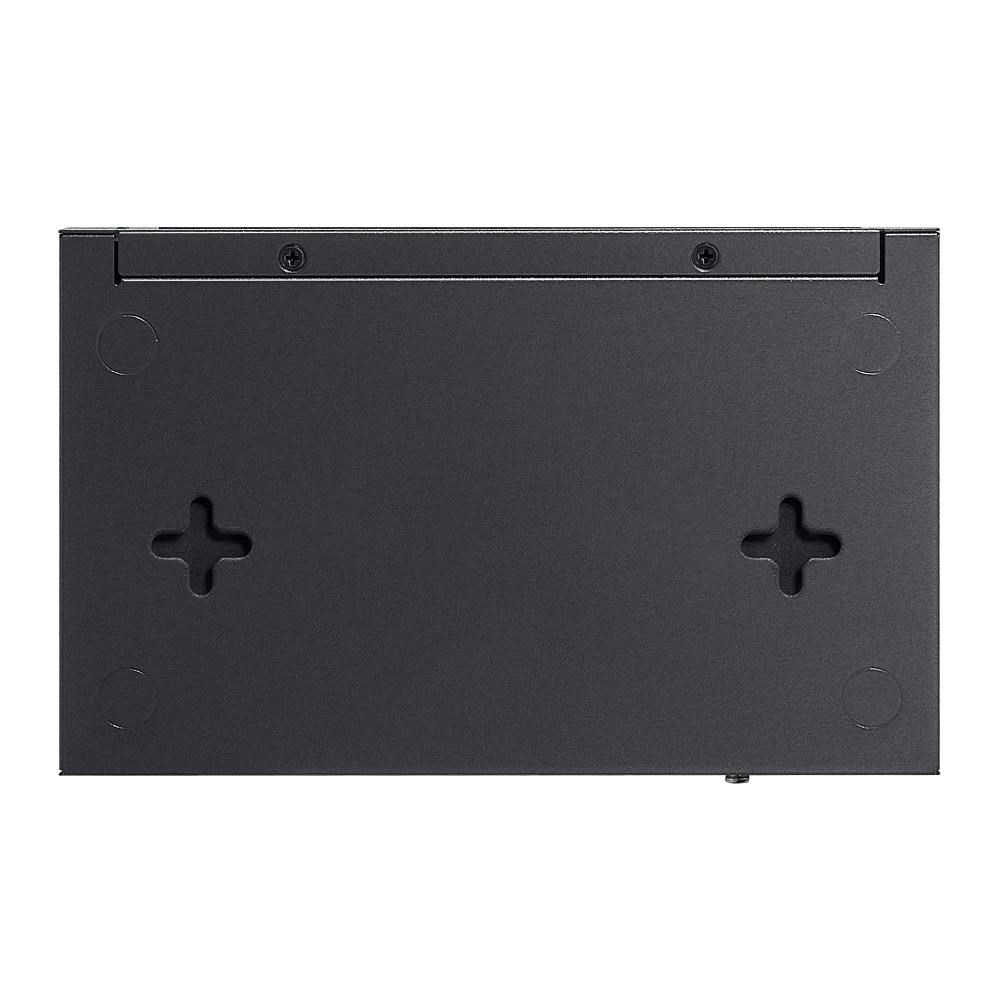

Installation	• Desktop • Wall Mount
Physical Security Lock	ANO
Power Supply	External DC Power Adapter (Output: 5 VDC/ 0.6 A)
Dimensions ( W x D x H )	6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
Surge Protection	±6kV
PERFORMANCE
Switching Capacity	16 Gbps
Packet Forwarding Rate	11.9 Mpps
MAC Address Table	8 K
Packet Buffer Memory	4 Mbits
Jumbo Frame	15 KB
SOFTWARE FEATURES
Quality of Service	• Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control?
L2 Features	• Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method	Store-And-Forward
MANAGEMENT
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Unified Configuration
OTHERS
Certification	FCC, CE, RoHS
Package Contents	• ES208G • Power Adapter • Installation Guide • Rubber Feet
Environment	• Operating Temperature: 0?~40? (32?~104?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
