TP-Link OMADA switch ES210GP (9xGbE,1xGbE/SFPcombo,8xPoE+,63W, fanless)

Name: TP-Link OMADA switch ES210GP (9xGbE,1xGbE/SFPcombo,8xPoE+,63W, fanless)
Brand: TP-link
SKU: 324481
Price: 3101 CZK
Availability: InStock

zdarma

-0%

TP-Link OMADA switch ES210GP (9xGbE,1xGbE/SFPcombo,8xPoE+,63W, fanless)

Kód: 324481

Kód dod.: ES210GP

EAN: 1210002609722

Záruka: 60 Měsíc(ů)

Výrobce: TP-link

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

TP-Link OMADA switch ES210GP (9xGbE,1xGbE/SFPcombo,8xPoE+,63W, fanless)

ParametryPorovnání

Provedení

Desktop

Technologie

Gigabit ethernet + Gigabit optika

Technologie

Gigabit Ethernet 1000Mbps

Management

Web

Funkce

VLAN (virtual local area network)

Funkce

DHCP snooping

Funkce

Web management/Smart switch

Funkce

PoE (Power over ethernet)

Funkce

QoS (Quality of service)

Podporované standardy PoE

802.3af

Podporované standardy PoE

802.3at

Ventilátor

Počet portů LAN

Maximální počet portů

Počet portů Combo

PoE budget (W)

Počet PoE+ portů

TP-Link OMADA switch ES210GP (9xGbE,1xGbE/SFPcombo,8xPoE+,63W, fanless)

HARDWARE FEATURES

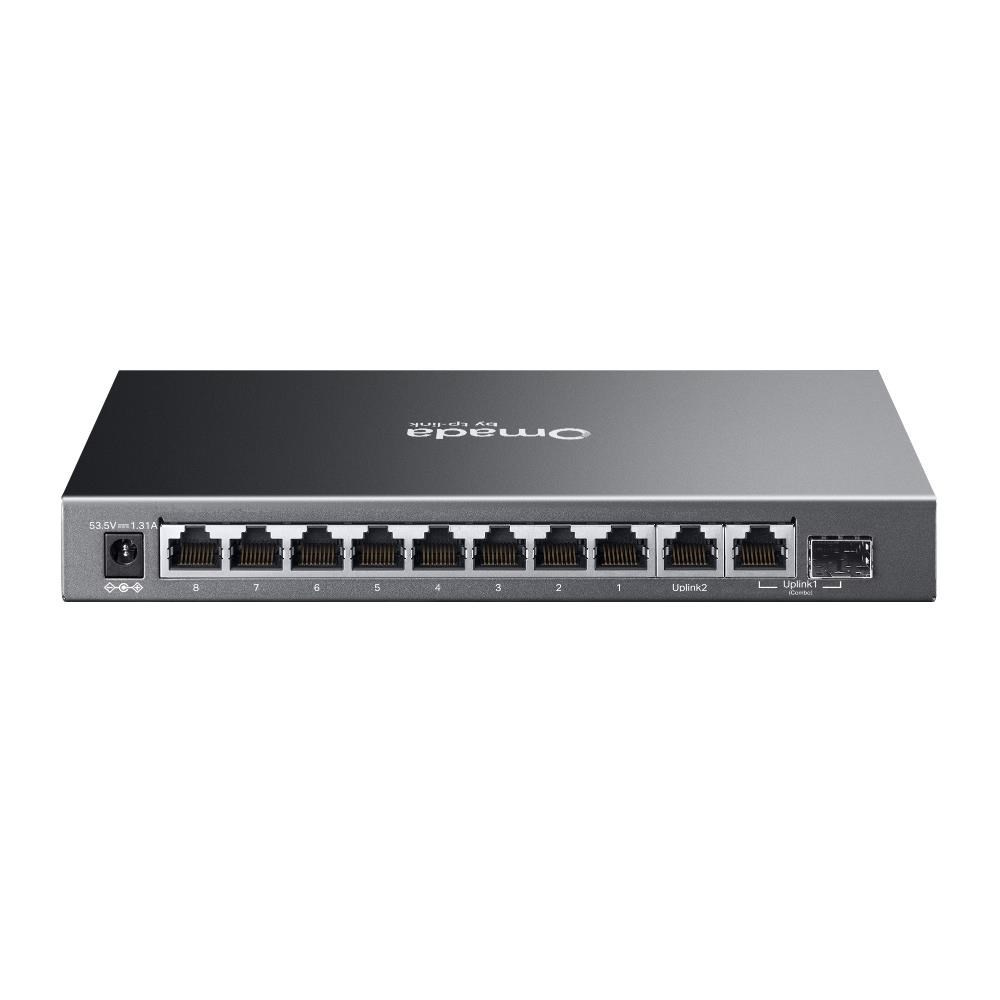

Interface	• 8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+) • 1× 10/100/1000 Mbps RJ45 Port • 1× Gigabit SFP/RJ45 Combo Port • Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	Fanless

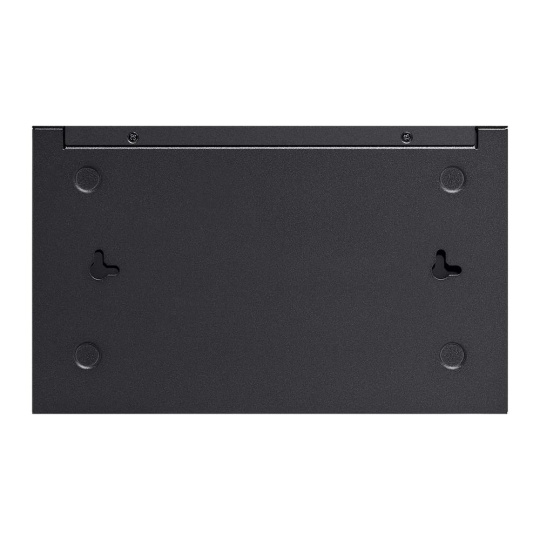

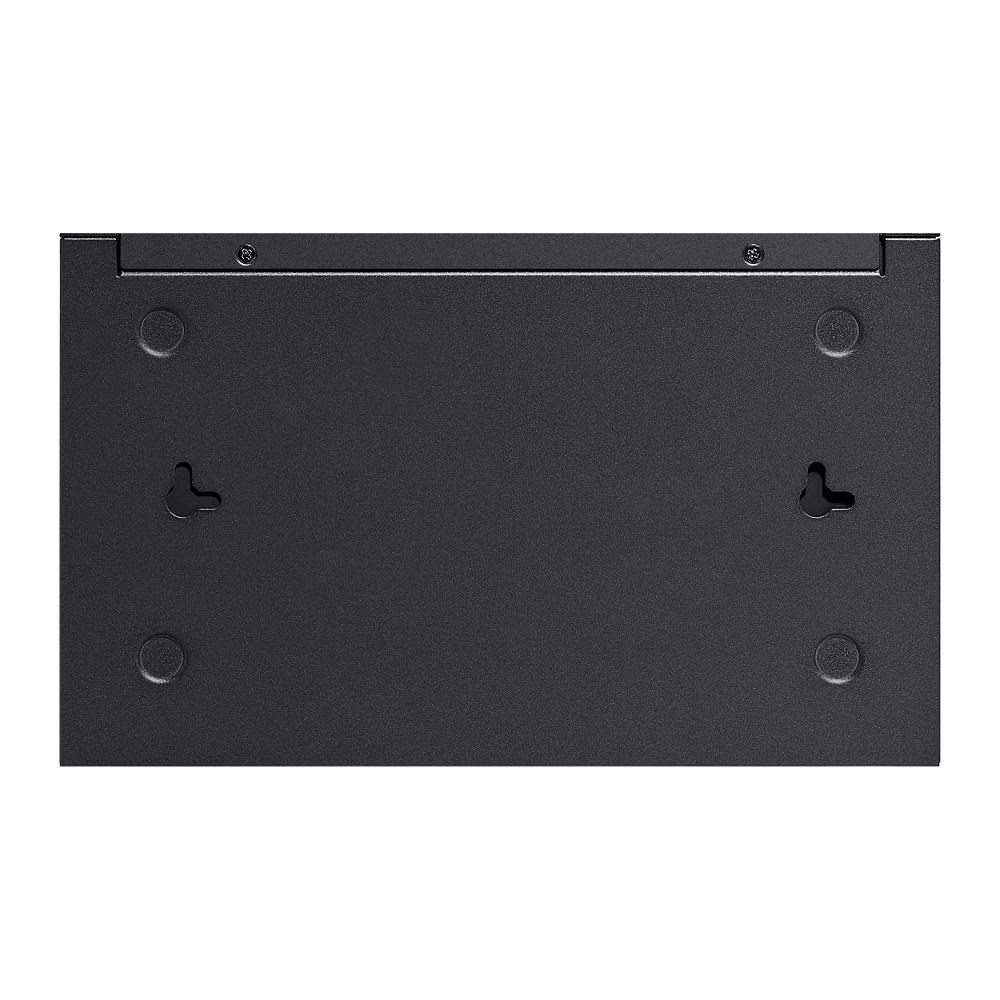

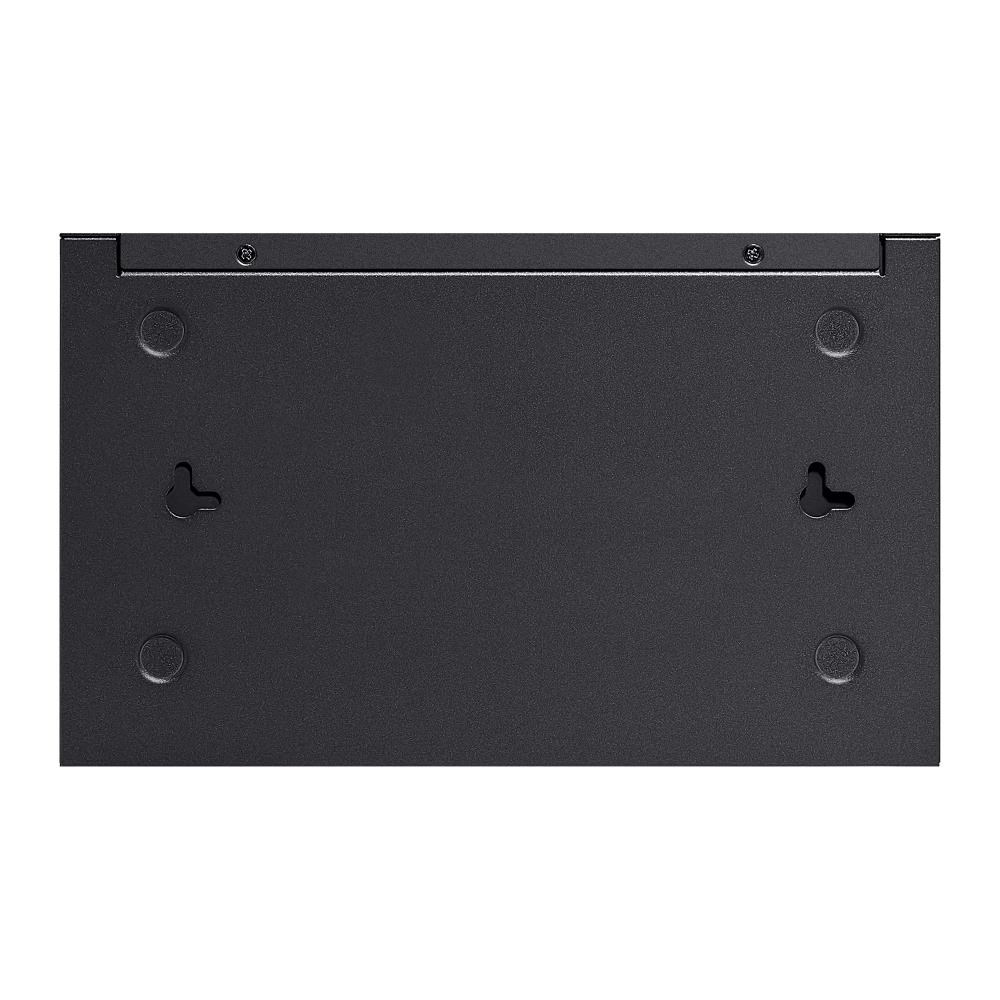

Installation	• Desktop • Wall Mount
Physical Security Lock	?
Power Supply	DC Power Adapter (Output: 53.5V DC / 1.31A)
PoE Ports (RJ45)	• Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 8 ports • PoE Budget: 63W available for all PoE+ ports, 30W max per port • Remote Camera Reboot† • Up to 820ft (250m) PoE transmission distance**
Dimensions ( W x D x H )	8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Surge Protection	±6kV
PERFORMANCE
Switching Capacity	20 Gbps
Packet Forwarding Rate	14.88 Mpps
MAC Address Table	8K
Packet Buffer Memory	4 Mbit
Jumbo Frame	15 KB
SOFTWARE FEATURES
Quality of Service	• Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control?
L2 Features	• Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method	Store-And-Forward
Management Features
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration†
OTHERS
Certification	FCC, CE, RoHS
Package Content	• ES210GP • Power Adapter • Power Cord • Installation Guide • Rubber Feet
Environment	• Operating Temperature: 0?~40? (32?~104?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing

TP-Link OMADA switch ES210GP (9xGbE,1xGbE/SFPcombo,8xPoE+,63W, fanless)

TP-Link OMADA switch ES210GP (9xGbE,1xGbE/SFPcombo,8xPoE+,63W, fanless)

TP-Link OMADA switch ES210GP

Omada 10portový gigabitový easy managed switch s 8 porty PoE+

TP-Link OMADA switch ES210GP (9xGbE,1xGbE/SFPcombo,8xPoE+,63W, fanless)
