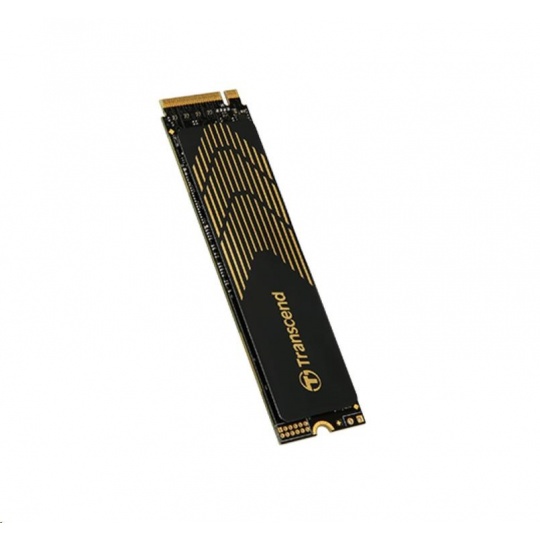

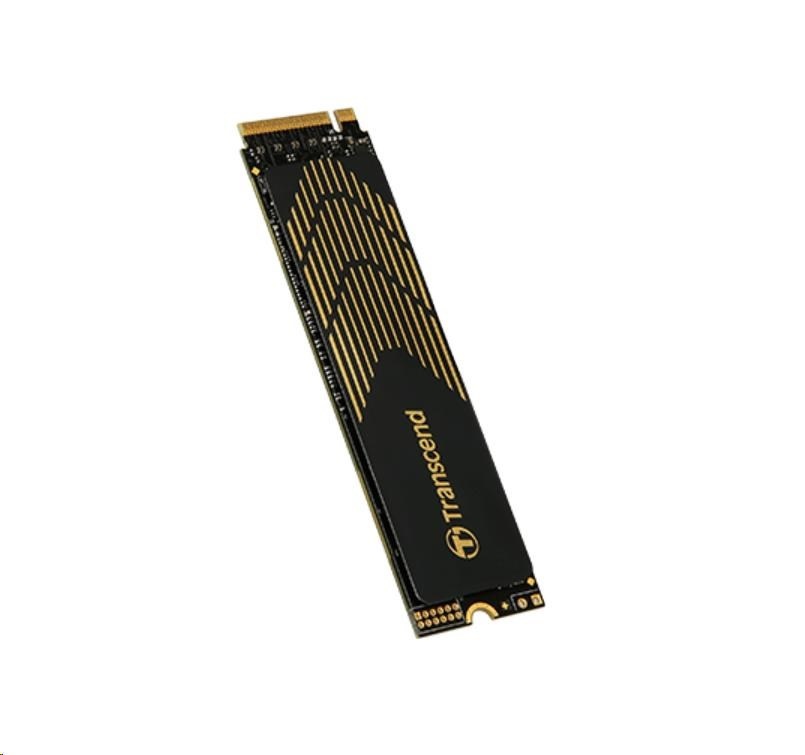

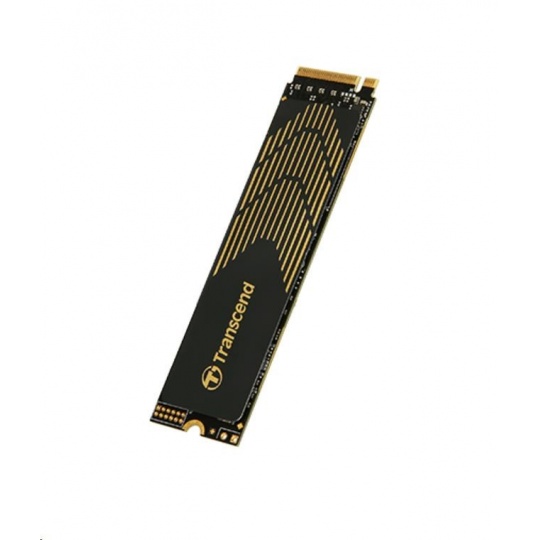

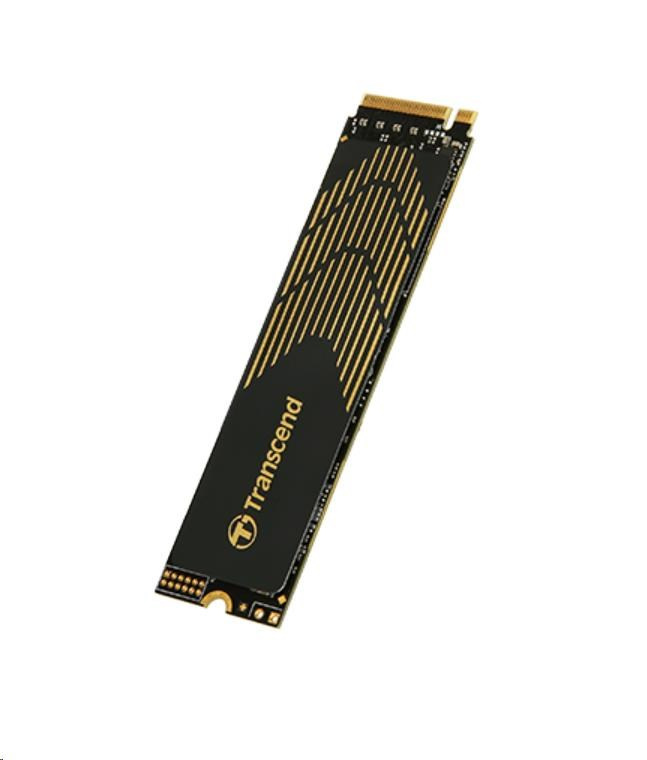

TRANSCEND SSD MTE240S 1TB, M.2 2280, PCIe Gen4x4, with Heatsink 3800/3200 MB/s
Popis a parametry
TRANSCEND SSD MTE240S 1TB, M.2 2280, PCIe Gen4x4, with Heatsink 3800/3200 MB/s
PCIe SSD 240S
Transcend's PCIe SSD 240S aims at high-end applications, such as digital audio/video production, gaming, and enterprise use, which require constant processing of heavy workloads with no system lags or slowdowns of any kind. Utilizing the PCI Express® Gen4 x4 interface supported by the latest NVMe™ standard, 3D NAND flash memory, a 4-channel controller, and a DRAM cache, the PCIe SSD 240S offers superior transfer speeds that easily beat the competition.
TECHNICAL SPECIFICATIONS
| Appearance | |
| Dimensions | Double-sided: 80 mm x 22 mm x 3.58 mm (3.15" x 0.87" x 0.14") |
| Weight | 10 g (0.35 oz) |
| M.2 Type | 2280-D2-M (Double-sided) |
| Interface | |
| Bus Interface | NVMe PCIe Gen4 x4 |
| Storage | |
| Flash Type | 3D NAND flash |
| Capacity | 1TB |
| Operating Environment | |
| Operating Temperature | 0°C (32°F) ~ 70°C (158°F) |
| Operating Voltage | 3.3V±5% |
| Performance | |
| Sequential Read/Write (CrystalDiskMark) | up to 3,800/3,200 MB/s |
| 4K Random Read/Write (IOmeter) | up to 370,000/560,000 IOPS |
| Terabytes Written (TBW) | 1,700 TBW |
| Drive Writes Per Day (DWPD) | 0.95 (5 yrs) |
| Note | Speed may vary due to host hardware, software, usage, and storage capacity. The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity. Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives. |
| Warranty | |
| Certificate | CE/FCC/BSMI/KC/RCM |
| Warranty | Five-year Limited Warranty |
| System Requirement | |
| Operating System | Microsoft Windows 7 (additional driver required) Microsoft Windows 8 (additional driver required) Microsoft Windows 10 Linux Kernel 2.6.31 or later |
| Note | Systems for use with the PCIe M.2 SSD must have an M.2 connector with only an M key. B-key connectors are not compatible. Improper insertion may lead to damage. Please click here for more information. |
| Technology | |
| S.M.A.R.T. | yes |
| Advanced Garbage Collection | yes |
| RAID Engine | yes |
| LDPC Coding | yes |
| DRAM Chache | yes |
.
ParametryPorovnání
Rozhraní
NVMe
Formát
M.2
Typ disku
SSD NVMe
Typ paměti SSD
3D
Rychlost zápisu MB/s
3000MB/s a víc
Rychlost čtení MB/s
3000MB/s a víc
Použití disku
Pro PC
Použití disku
Pro Notebooky
Chladič disku
Ano
Životnost zápisu SSD v TB
Min. 1600 TBW
SSD Kapacita (GB)
1000
